BAR CRUSHER

XS SERIES

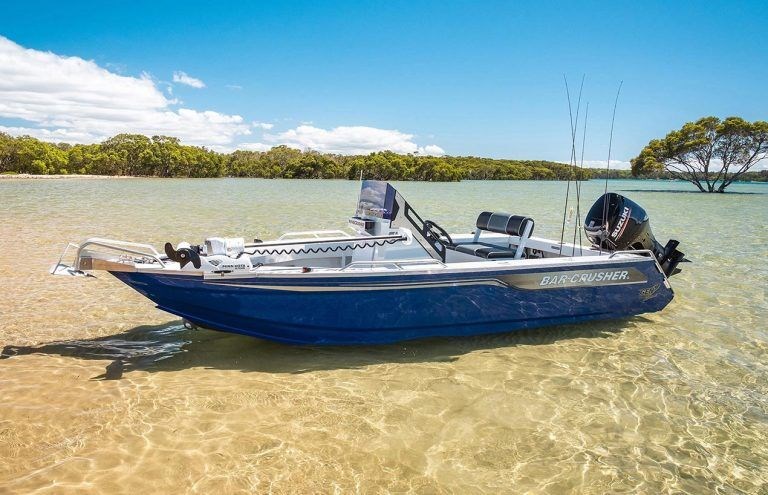

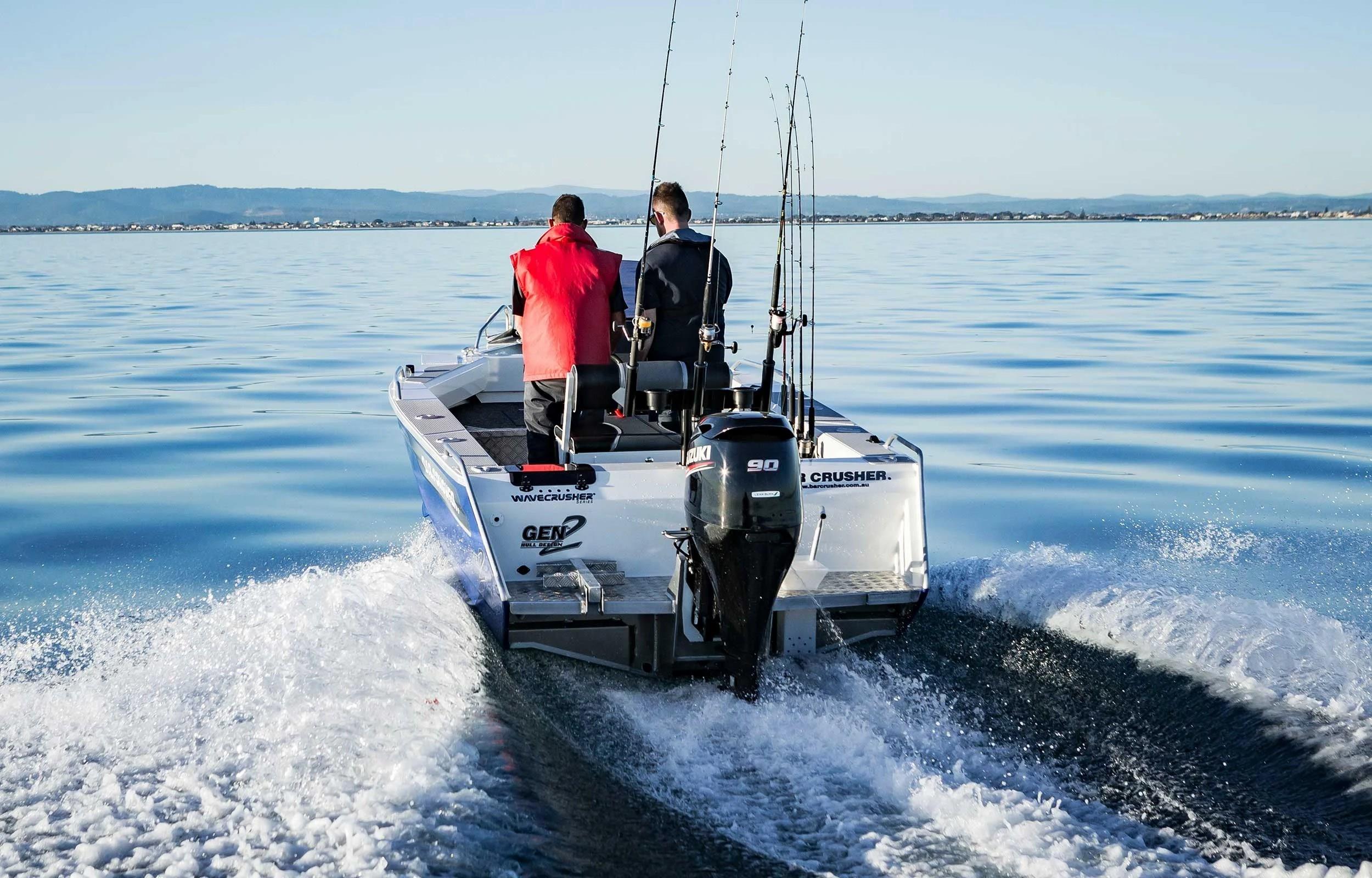

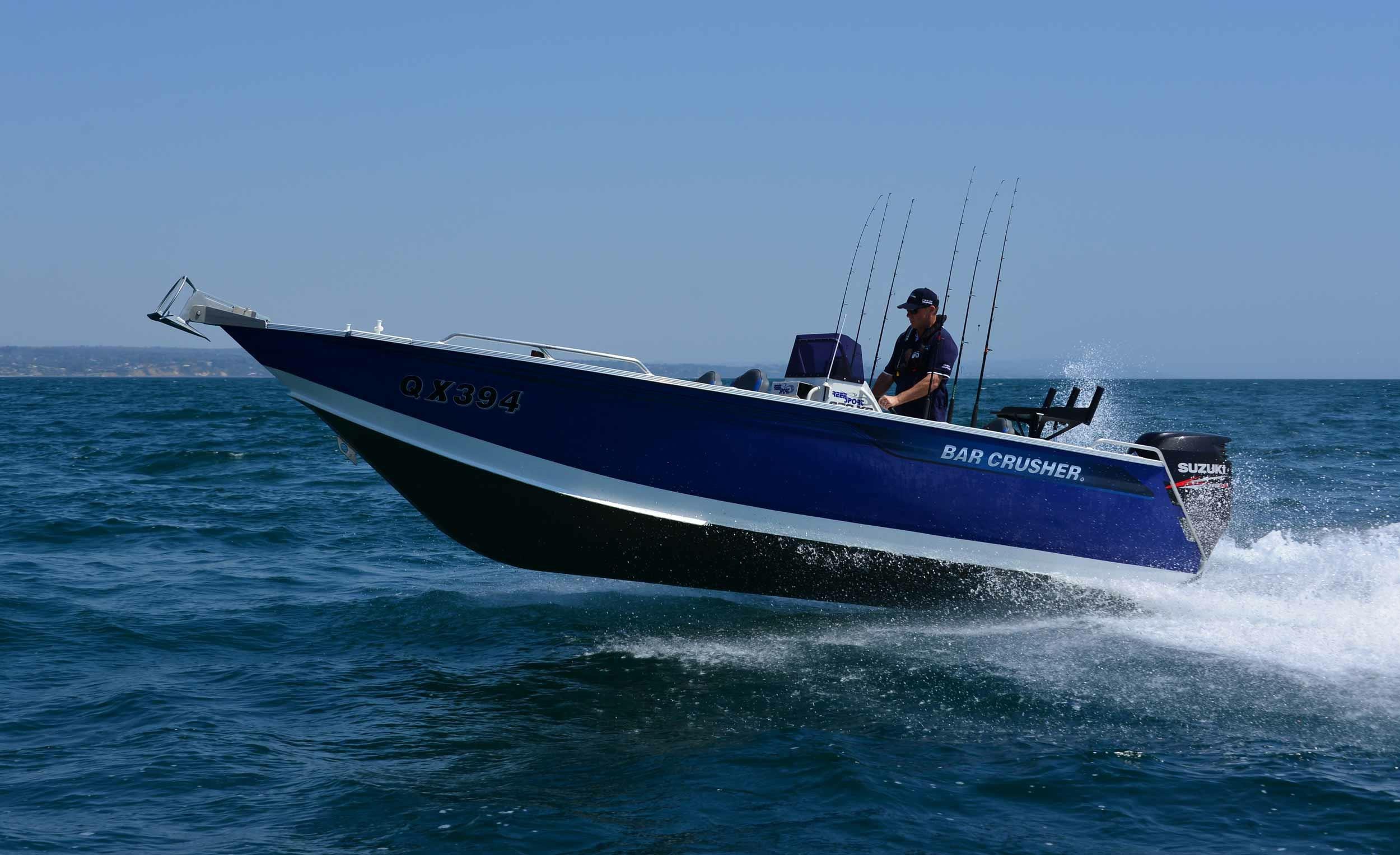

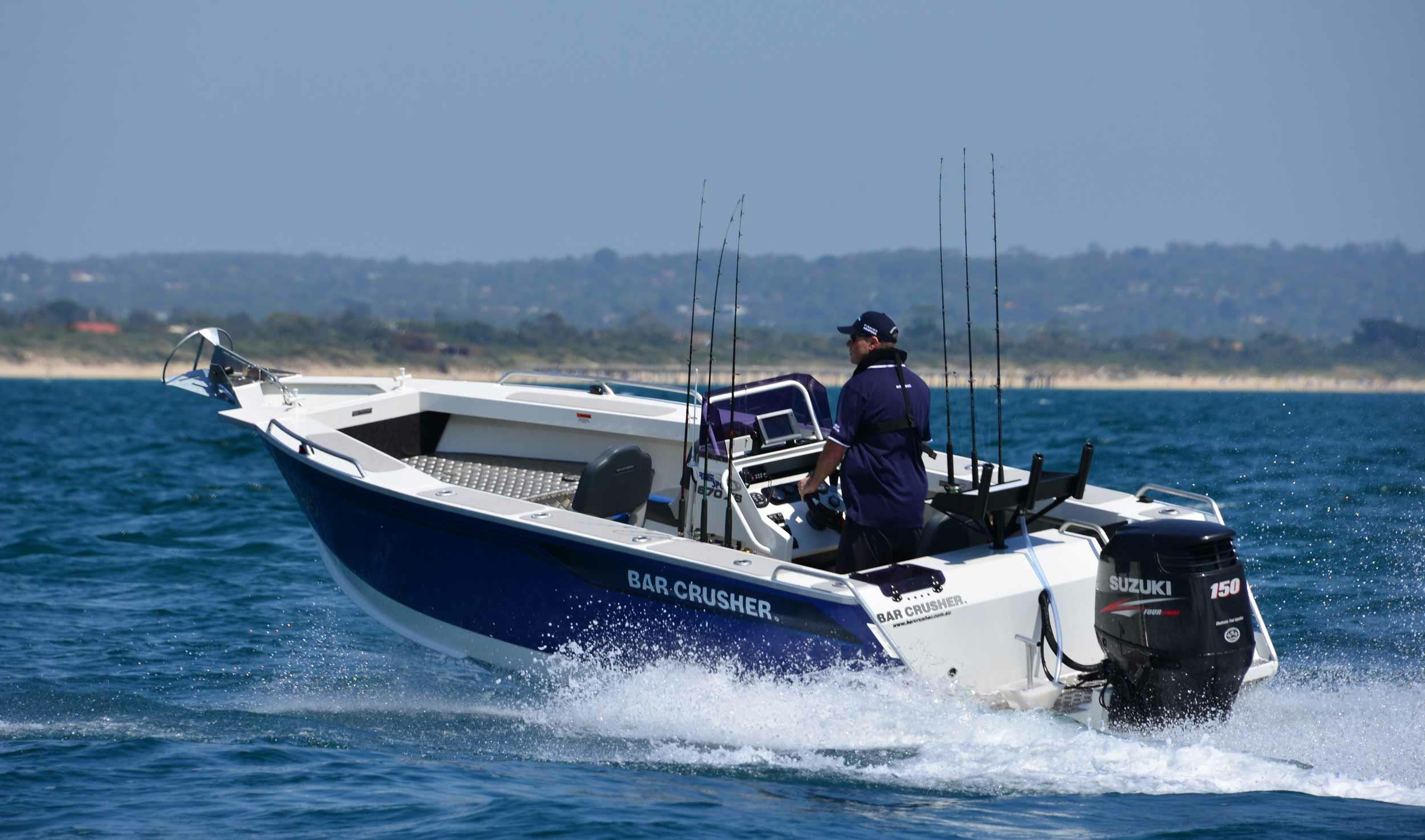

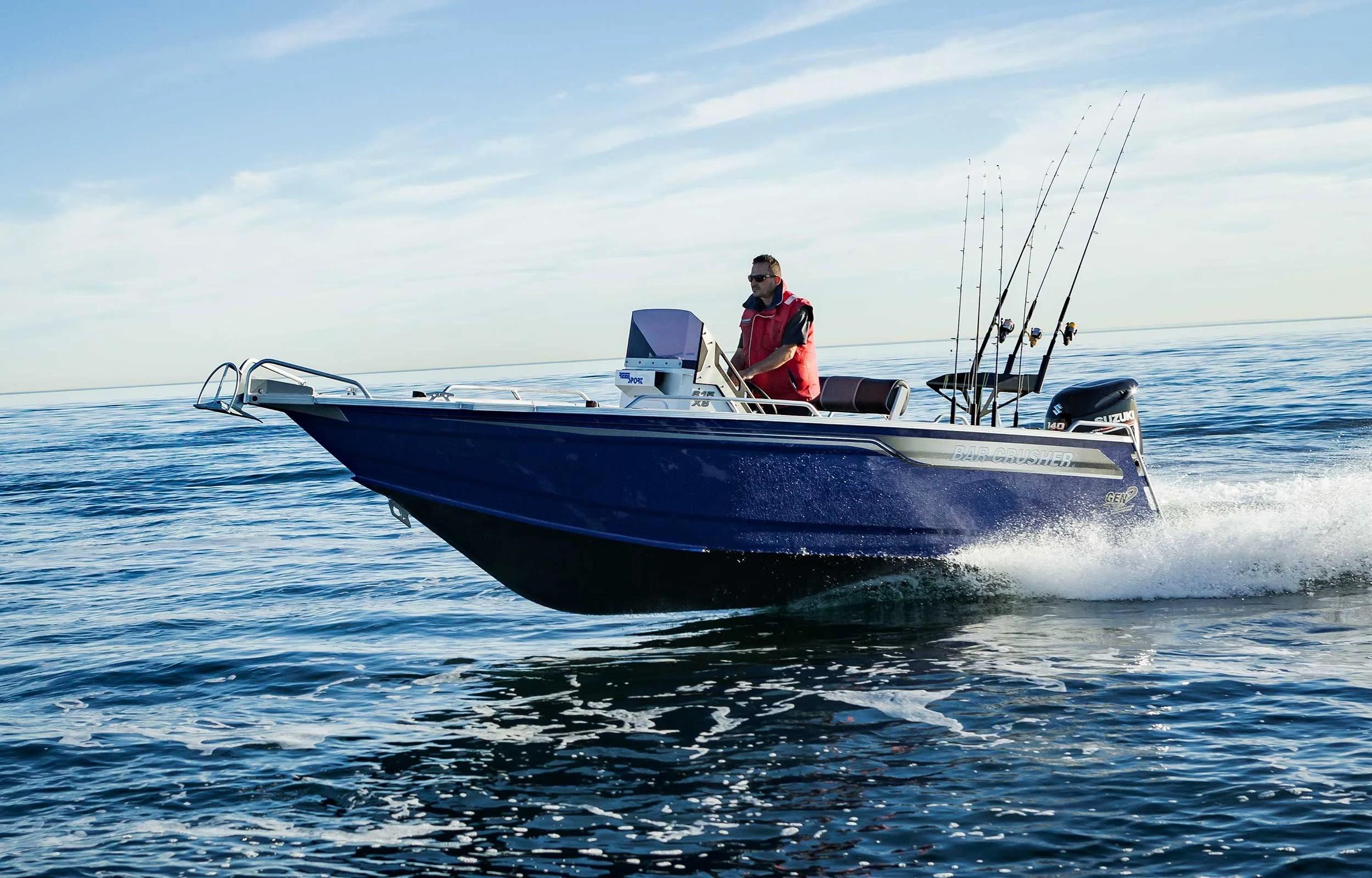

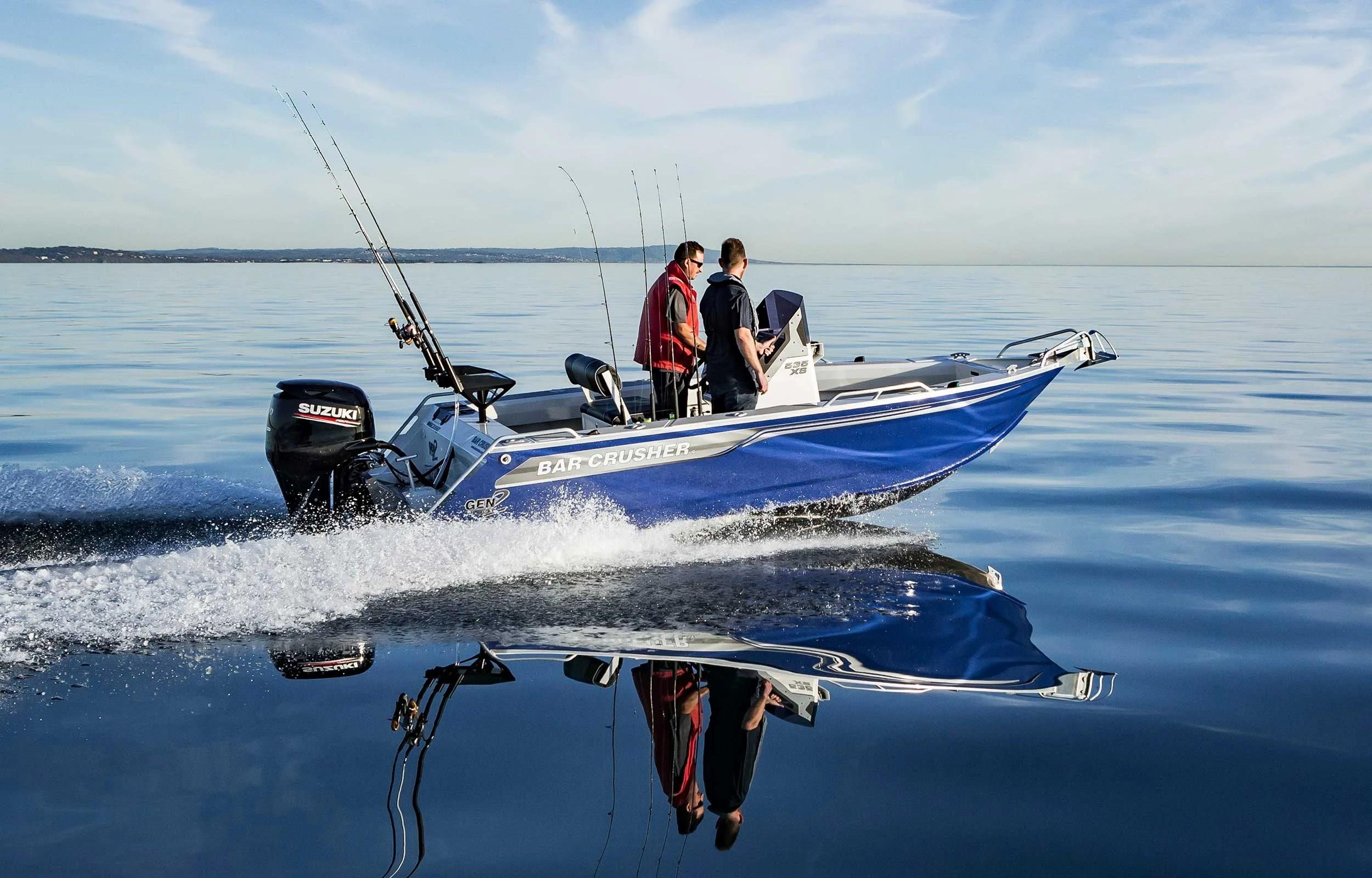

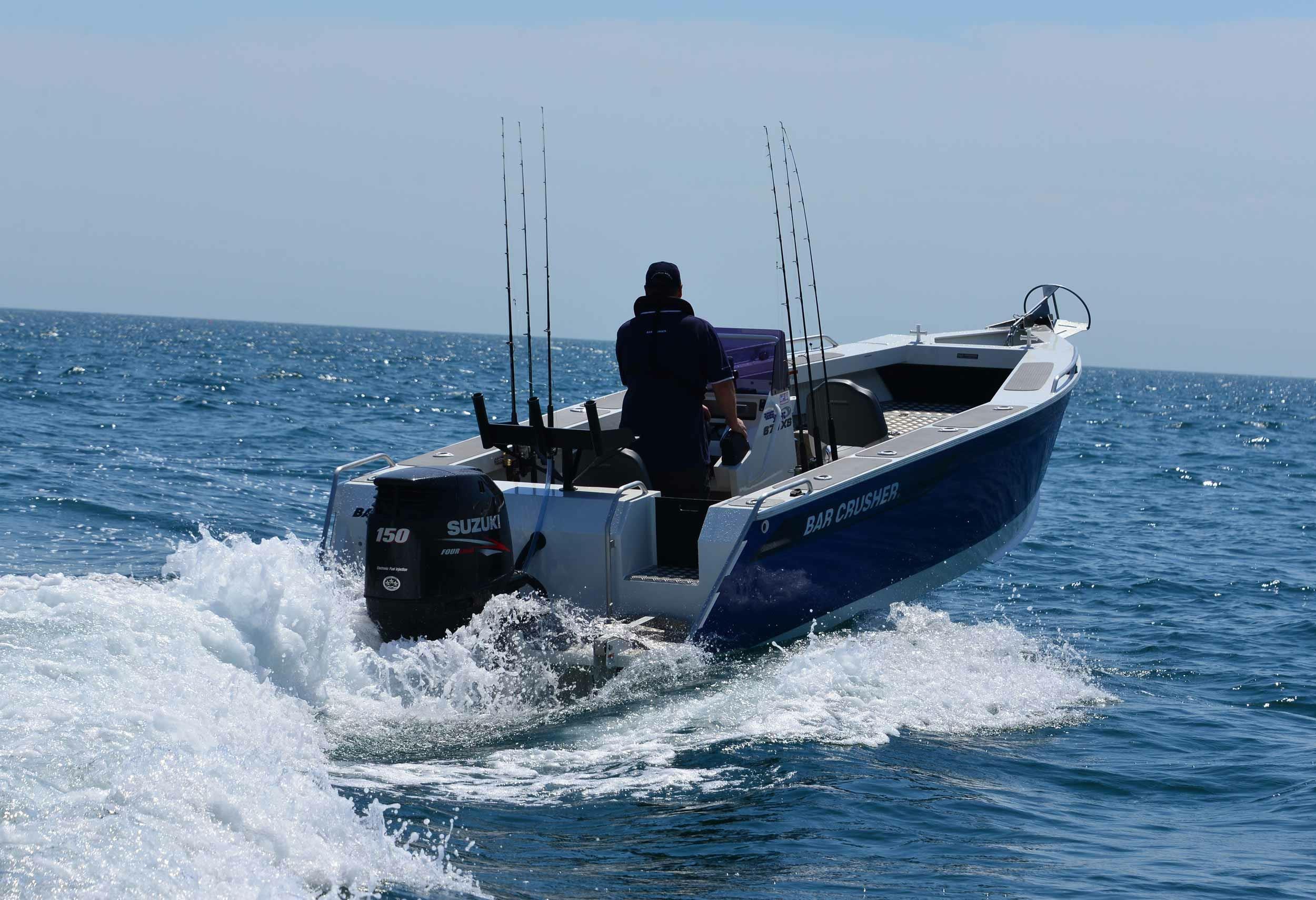

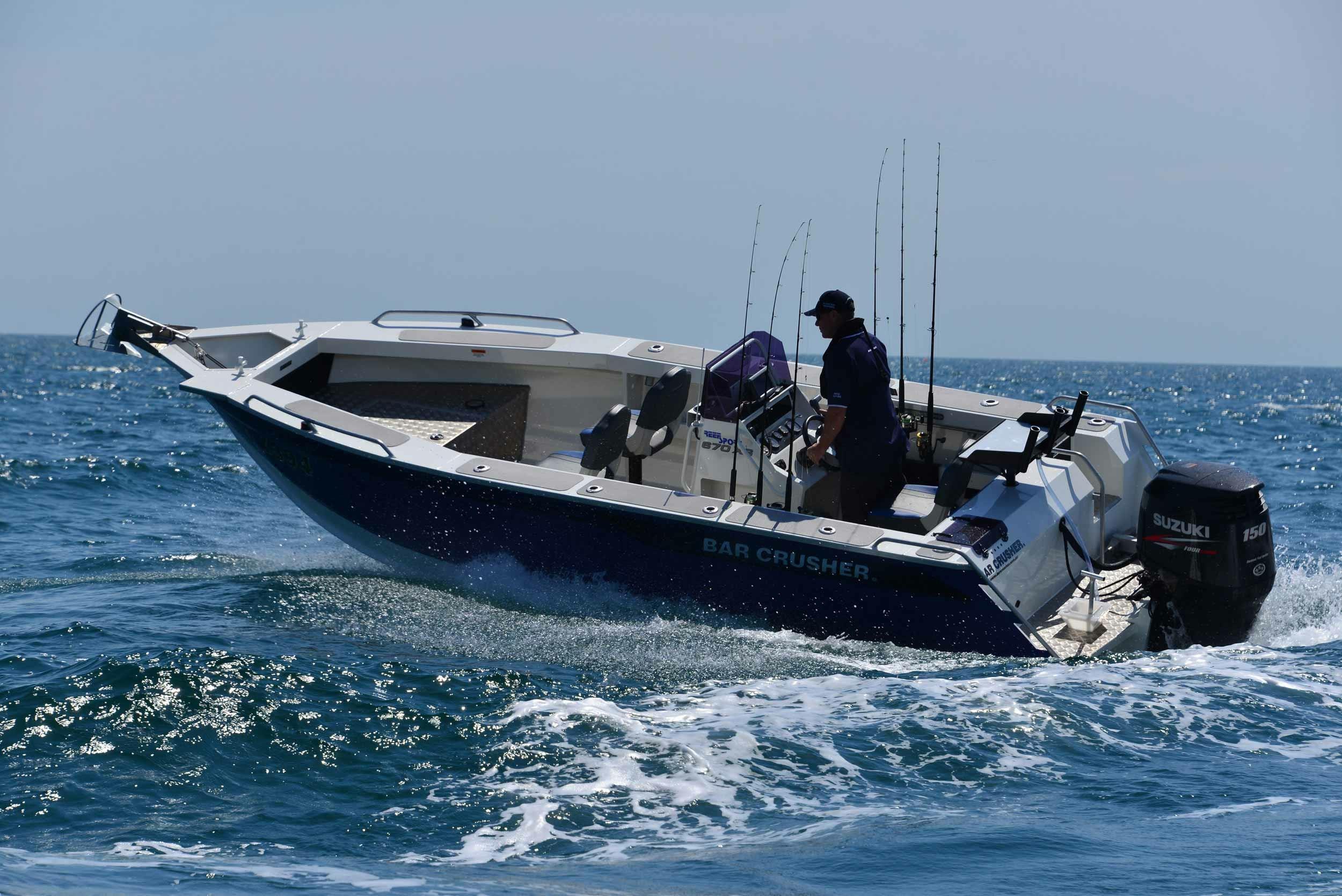

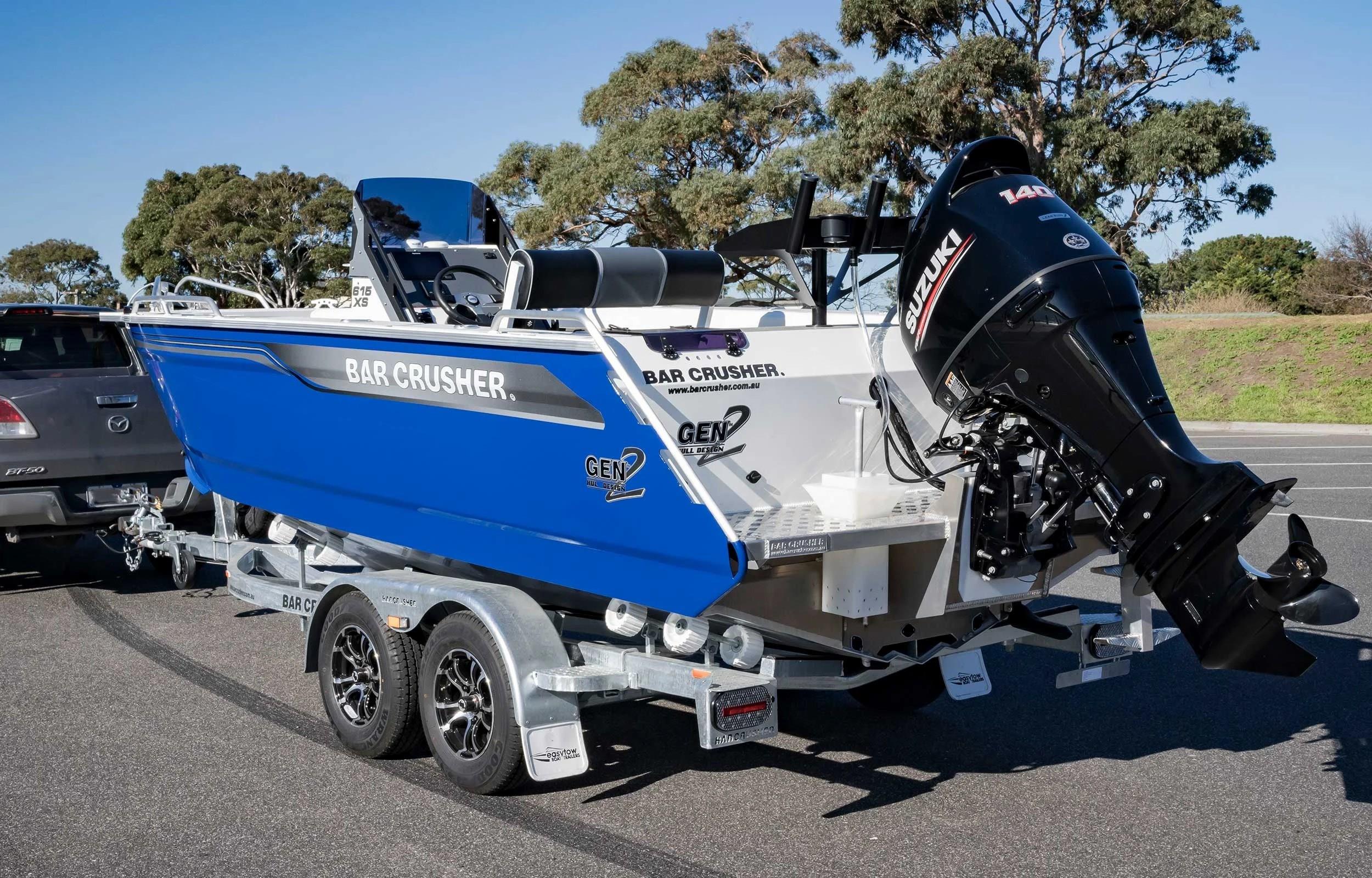

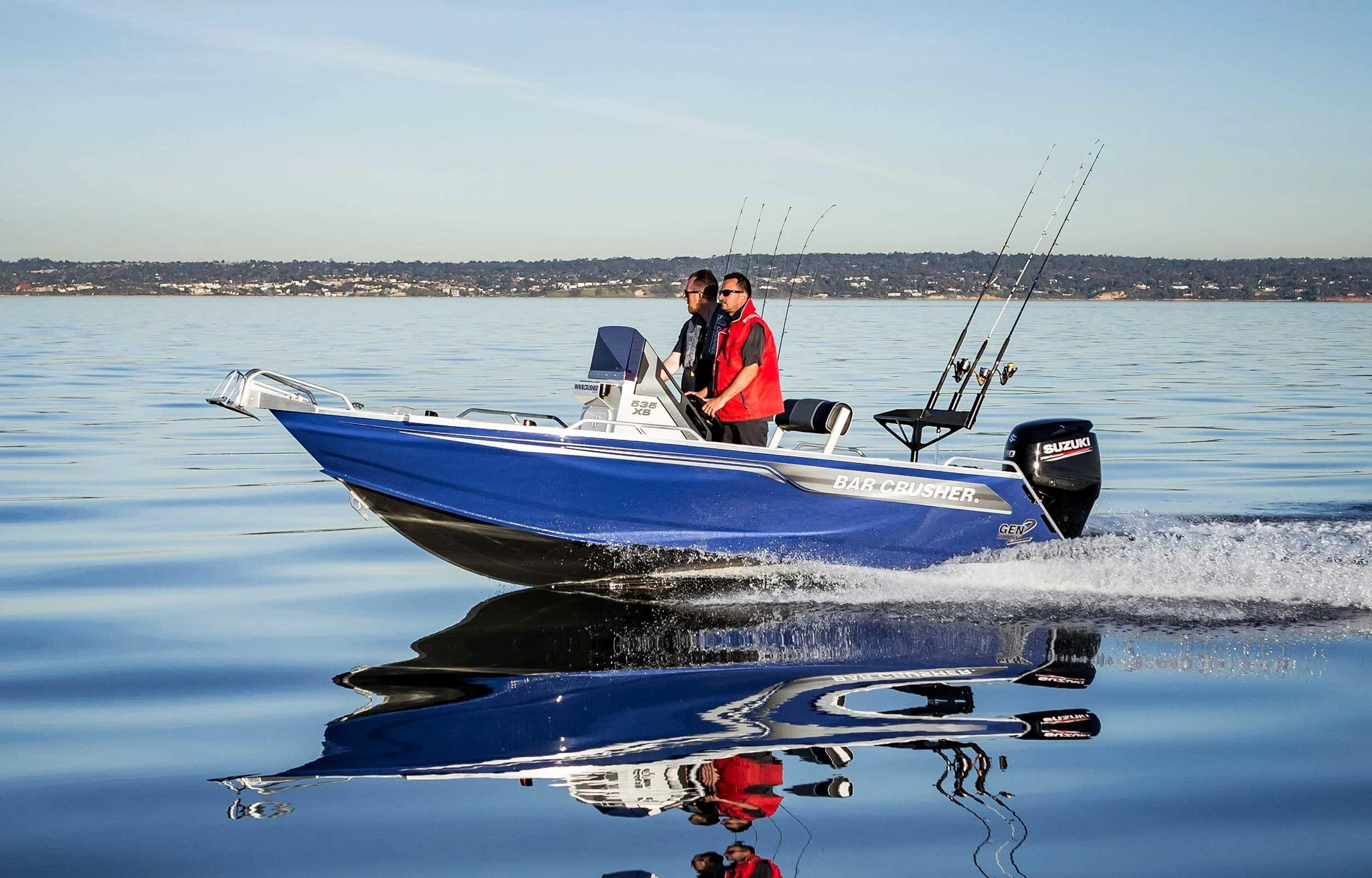

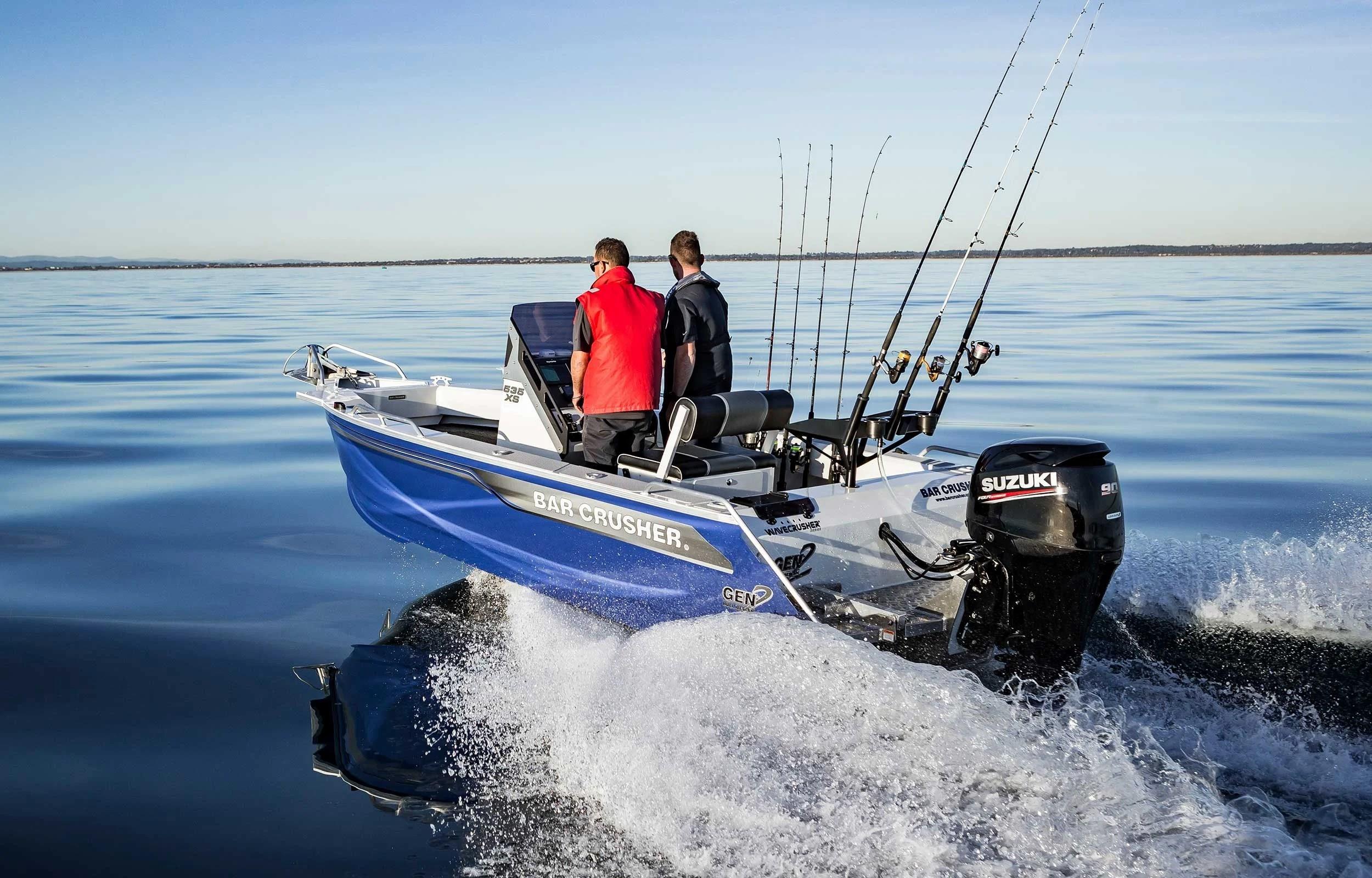

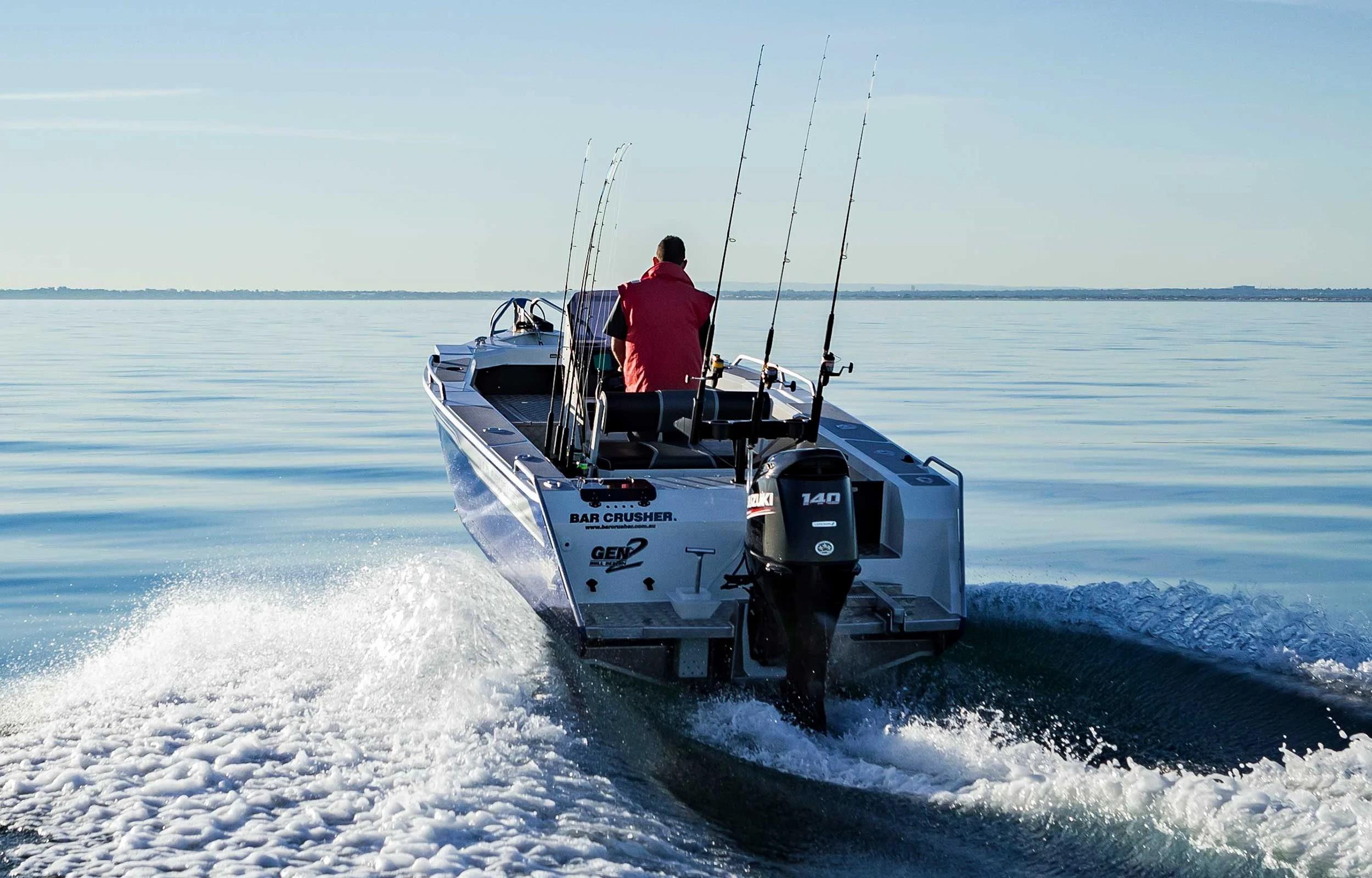

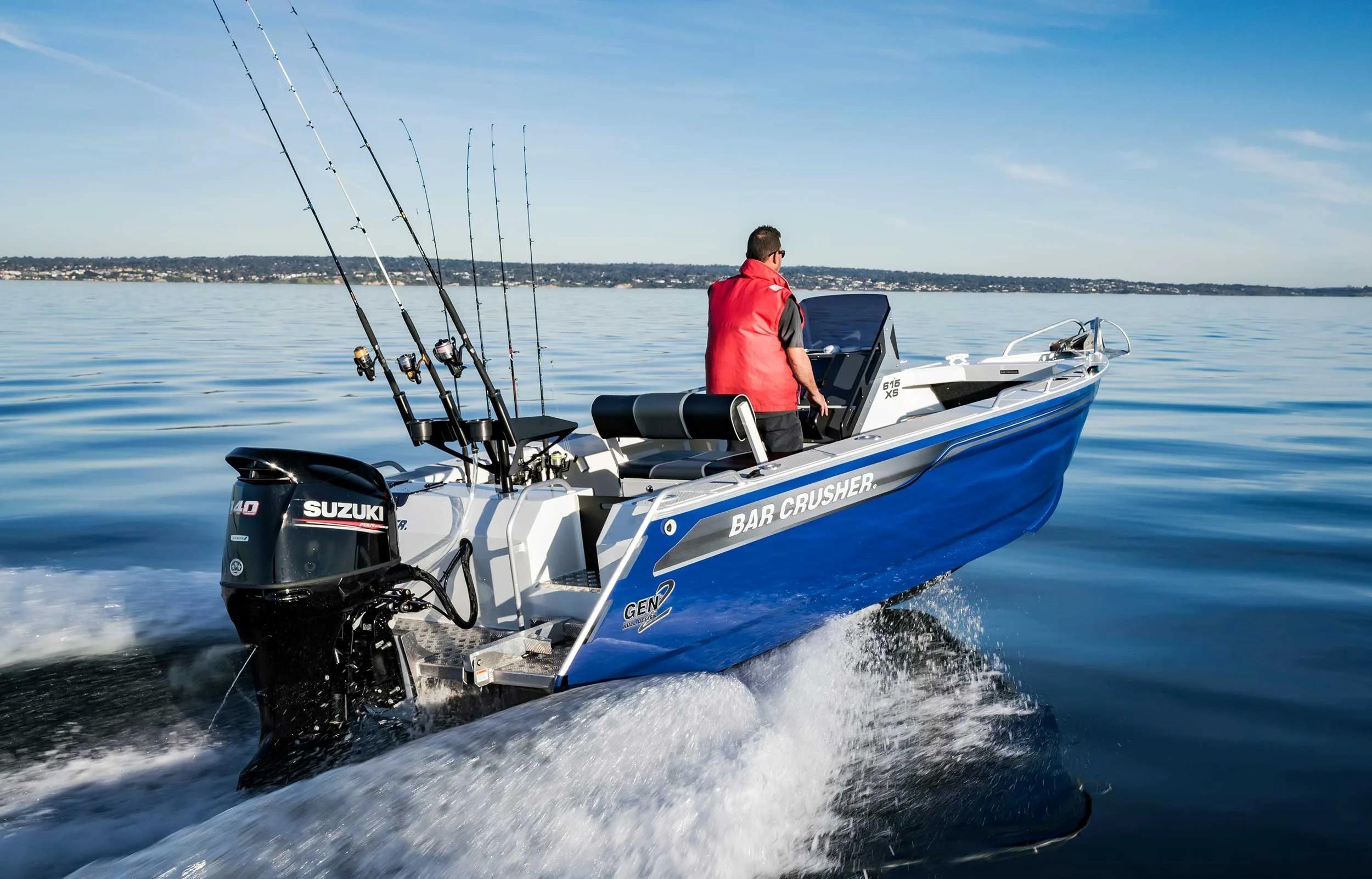

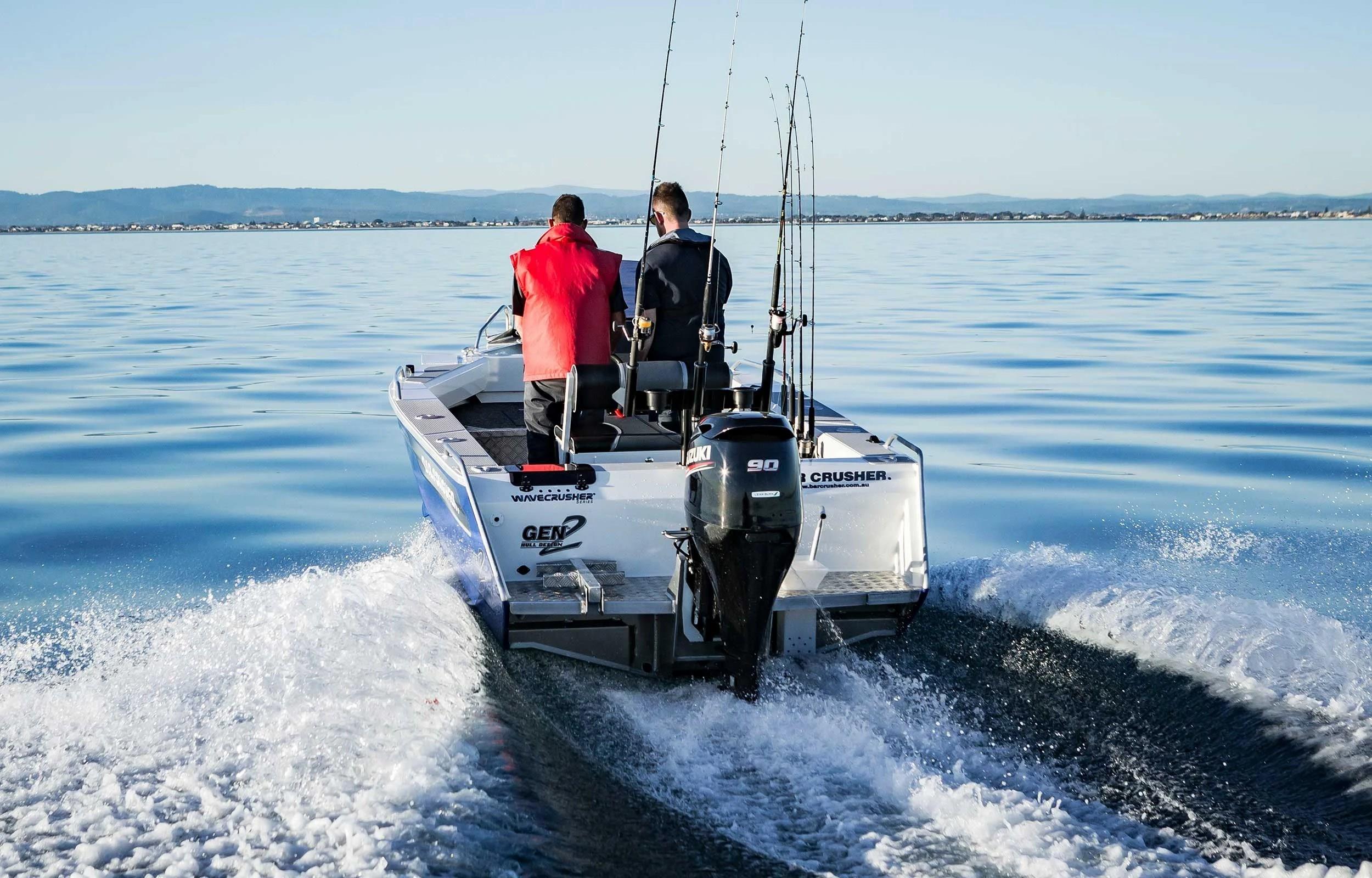

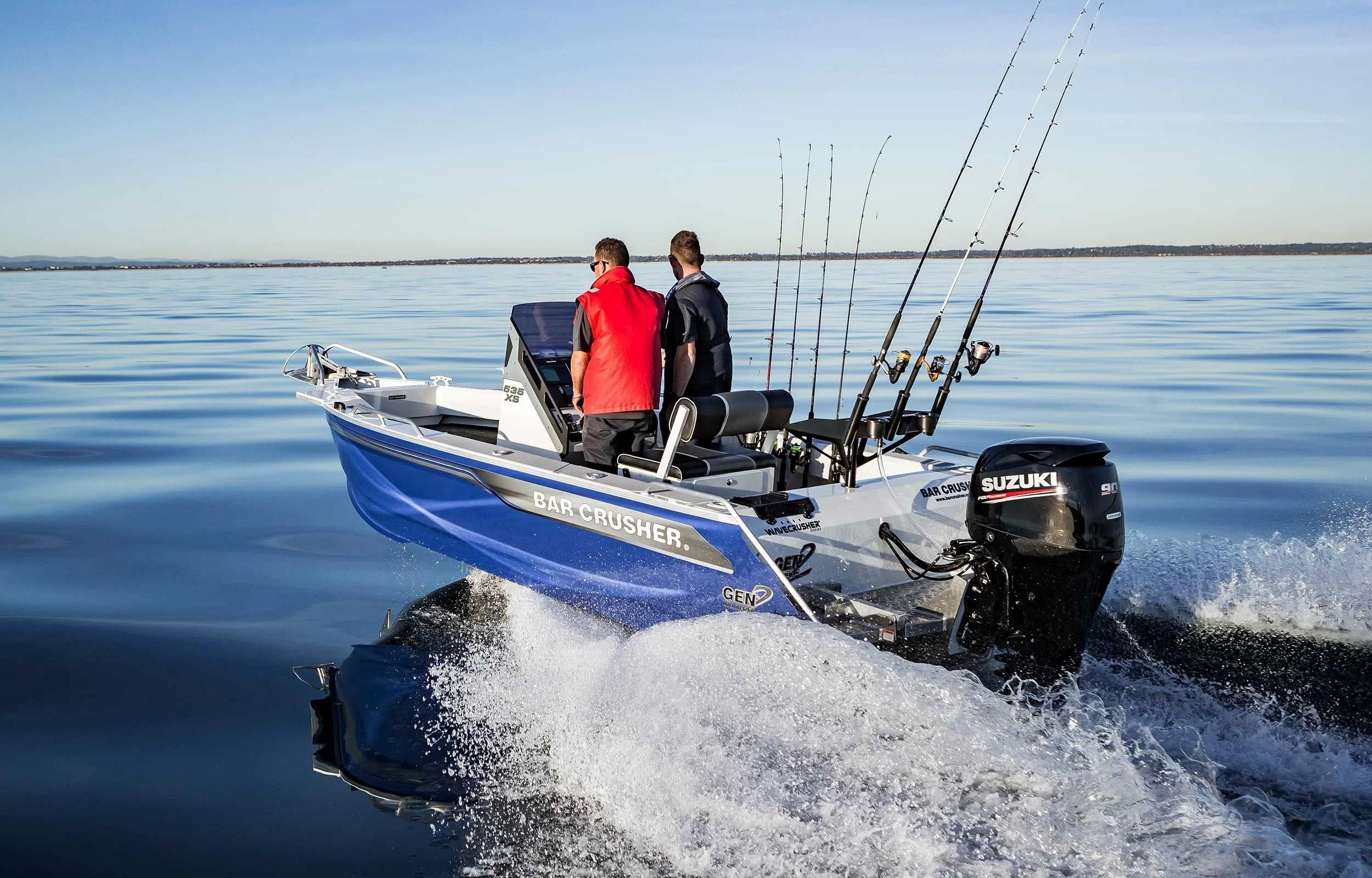

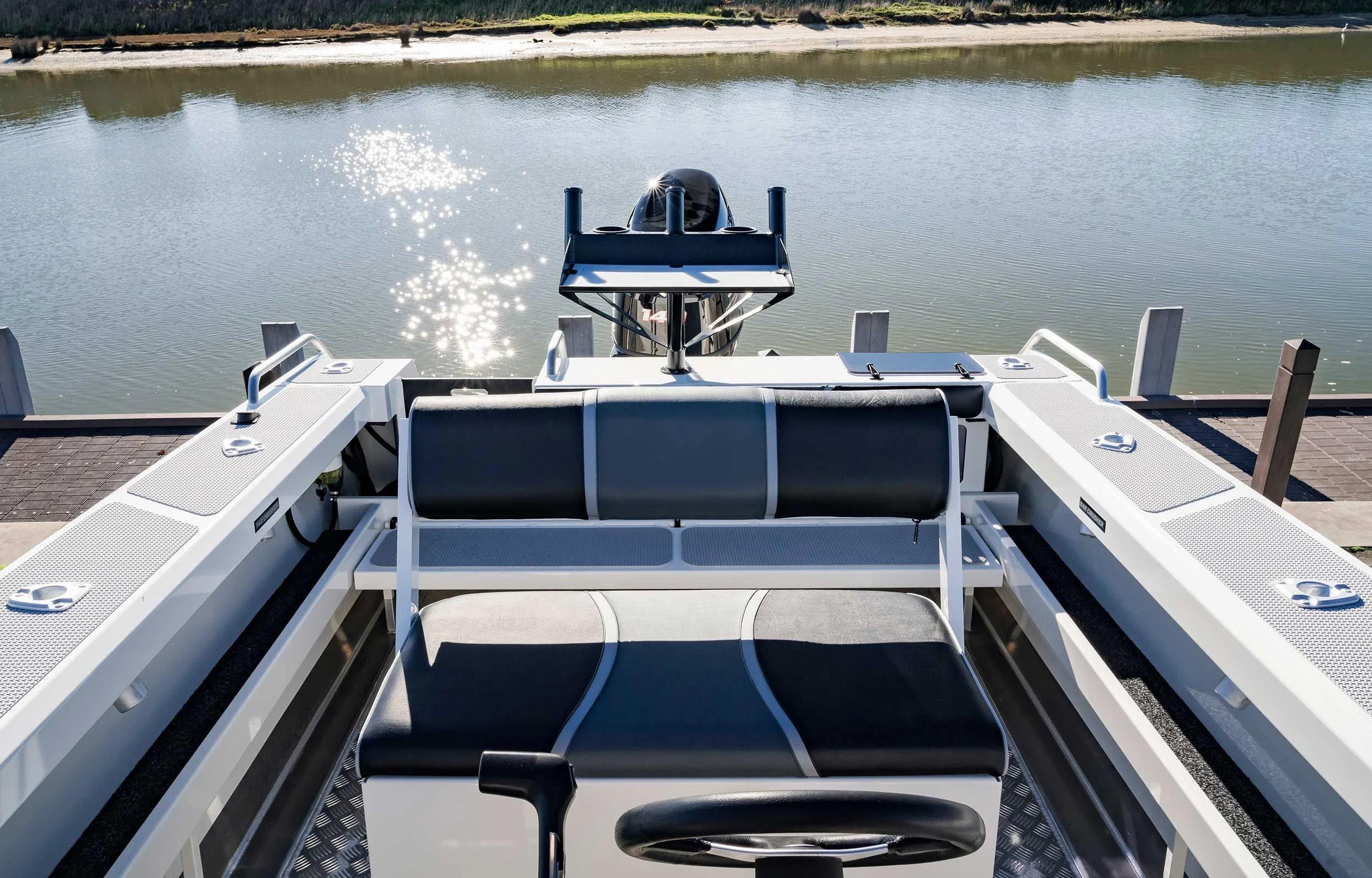

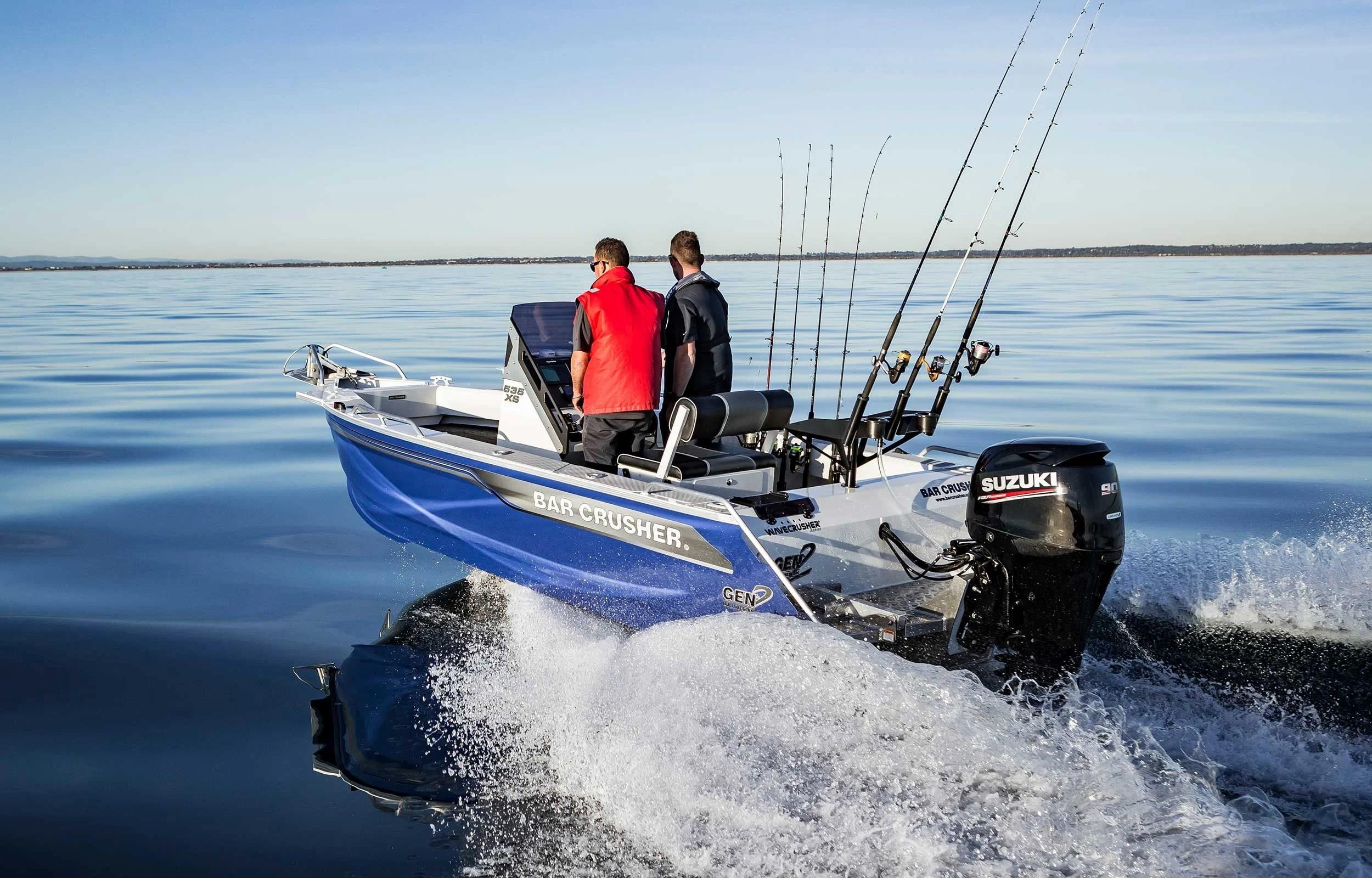

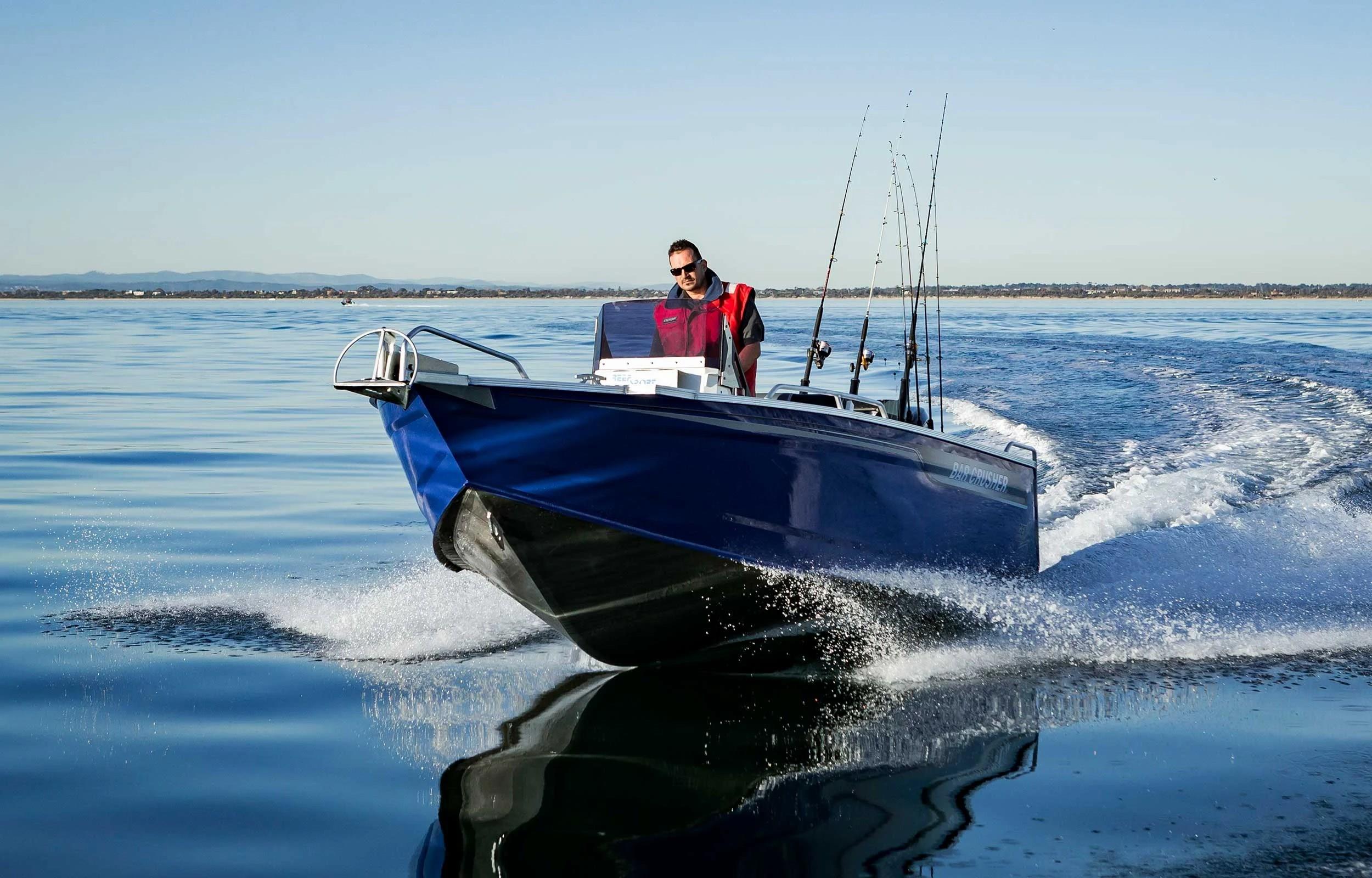

Centre console boats delivering true 360-degree fishing platforms, the XS series is ideal for screaming down large tidal rivers, heading wide into the bluewater, and hunting around estuaries and freshwater lakes.

XS SERIES image img-nmm

SPECIFICATIONS & FEATURES

Specifications

  535XS 575XS 615XS 670XS
Length overall (mm) 5350 5750 6150 6700
Beam (mm) 2150 2150 2250 2350
Internal freeboard (mm) 690 730 780 800
Bottom sides (mm) 4 4 4 5
Top sides (mm) 3 3 4 4
Transom length (in) 25 25 25 25
Fuel capacity (L) 115 160 200 230
Fuel system SafeTank™ SafeTank™ SafeTank™ SafeTank™
Tow weight (kg) – dry weight 1220 1350 1420 1580
Minimum horsepower 60 90 115 150
Maximum horsepower 115 140 150 200
Overall length on trailer (mm) – hitch to prop 6750 7200 7300 8000
Overall width on trailer (mm) 2150 2150 2250 2350
Height on trailer (mm) 2110 2160 2180 2120
Overall height with roof folded (mm) n/a n/a n/a n/a
Maximum persons 5 5 6 6

Weights and measurements are approximate due to variations in packaging and fit-out. All weights and measurements must be confirmed with your dealer prior to ordering.
