AQUAMASTER

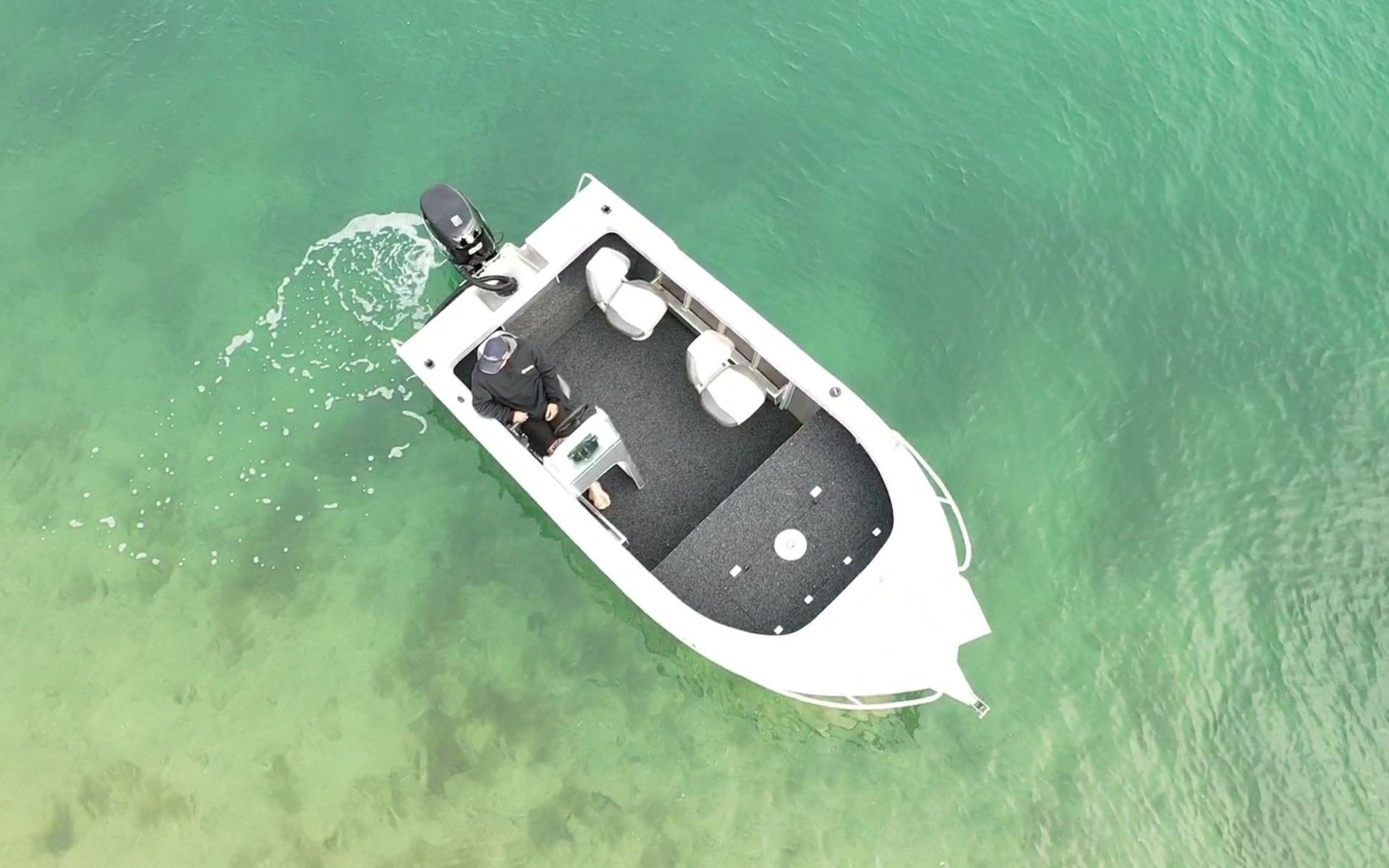

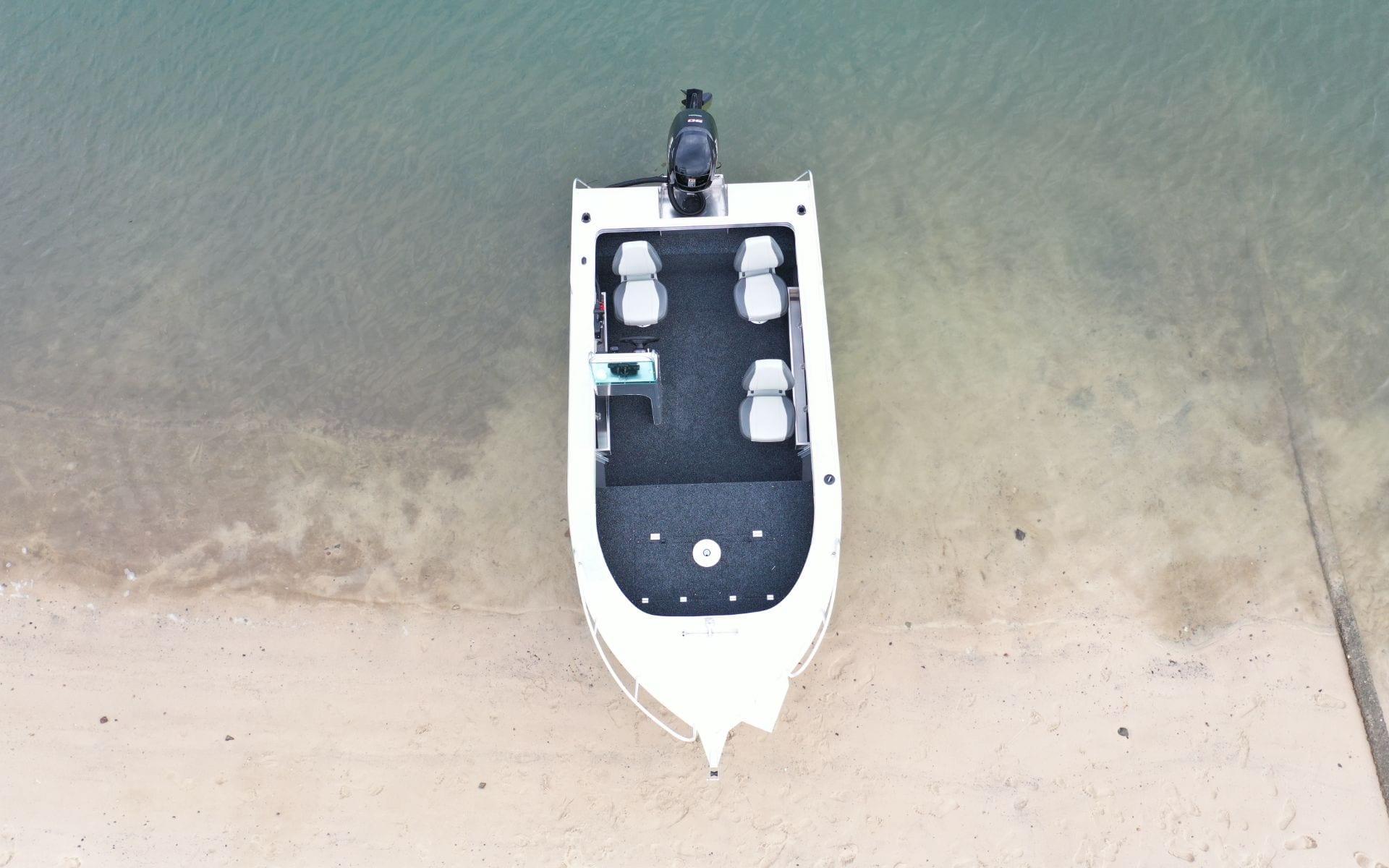

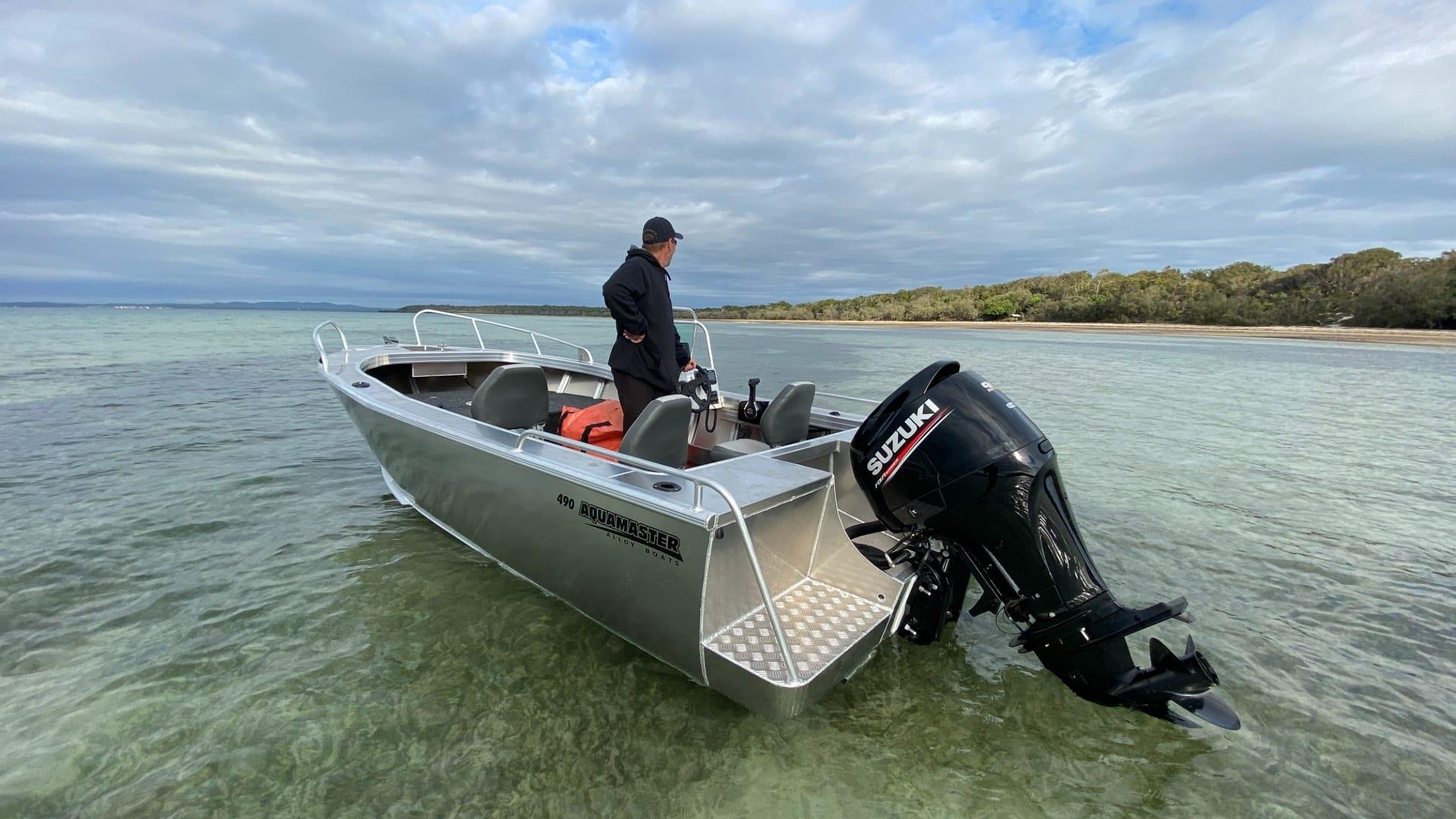

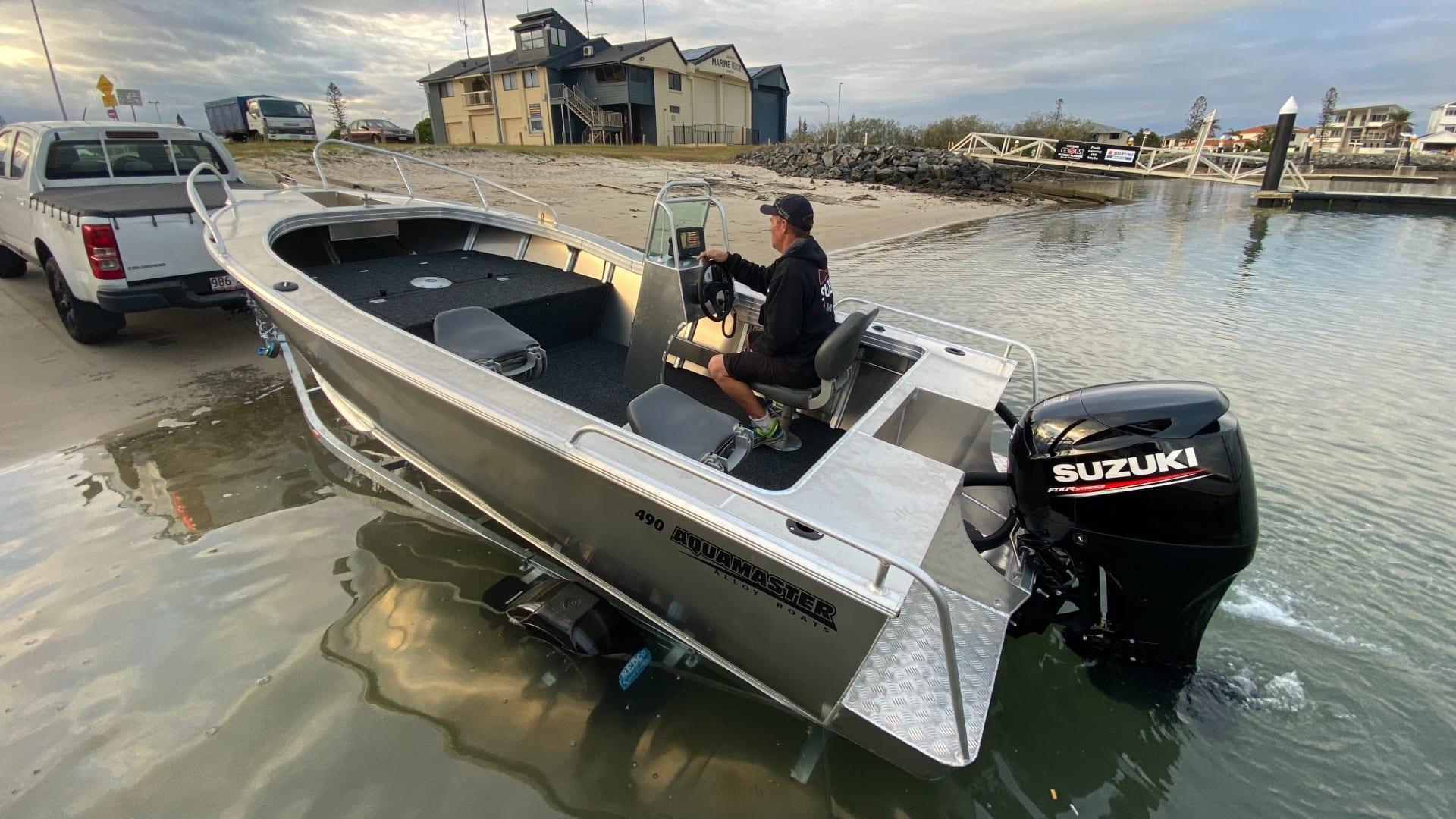

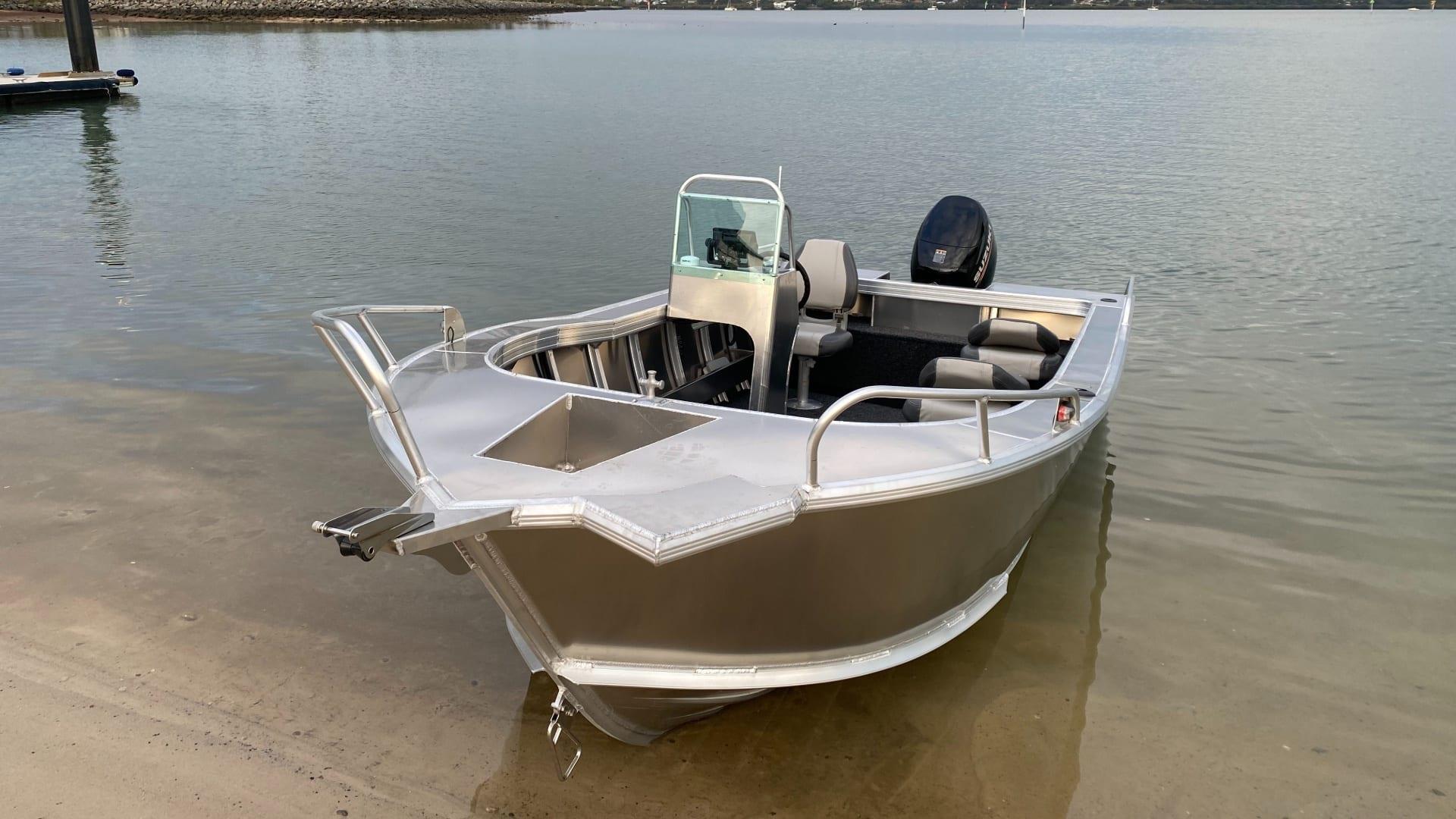

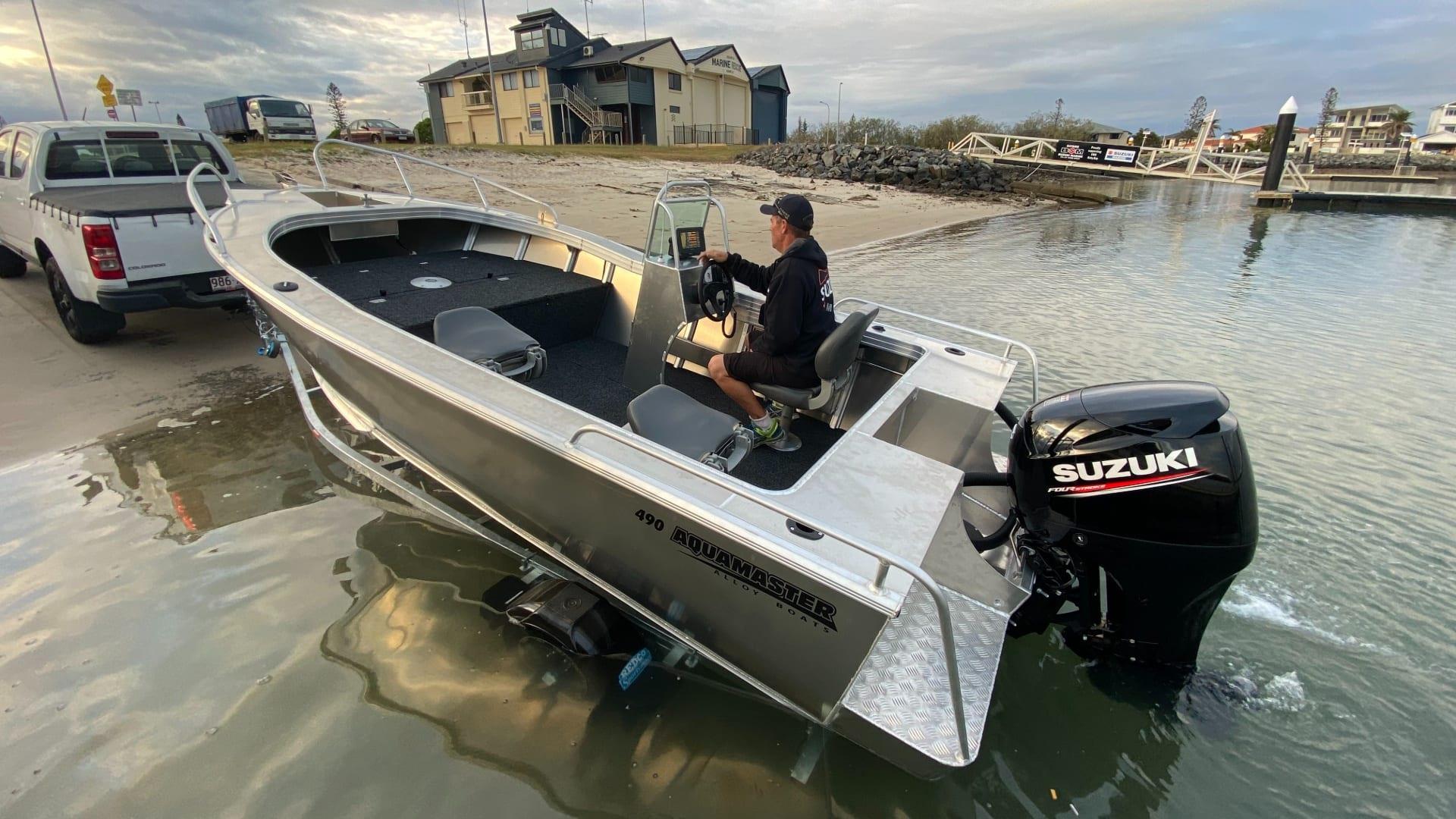

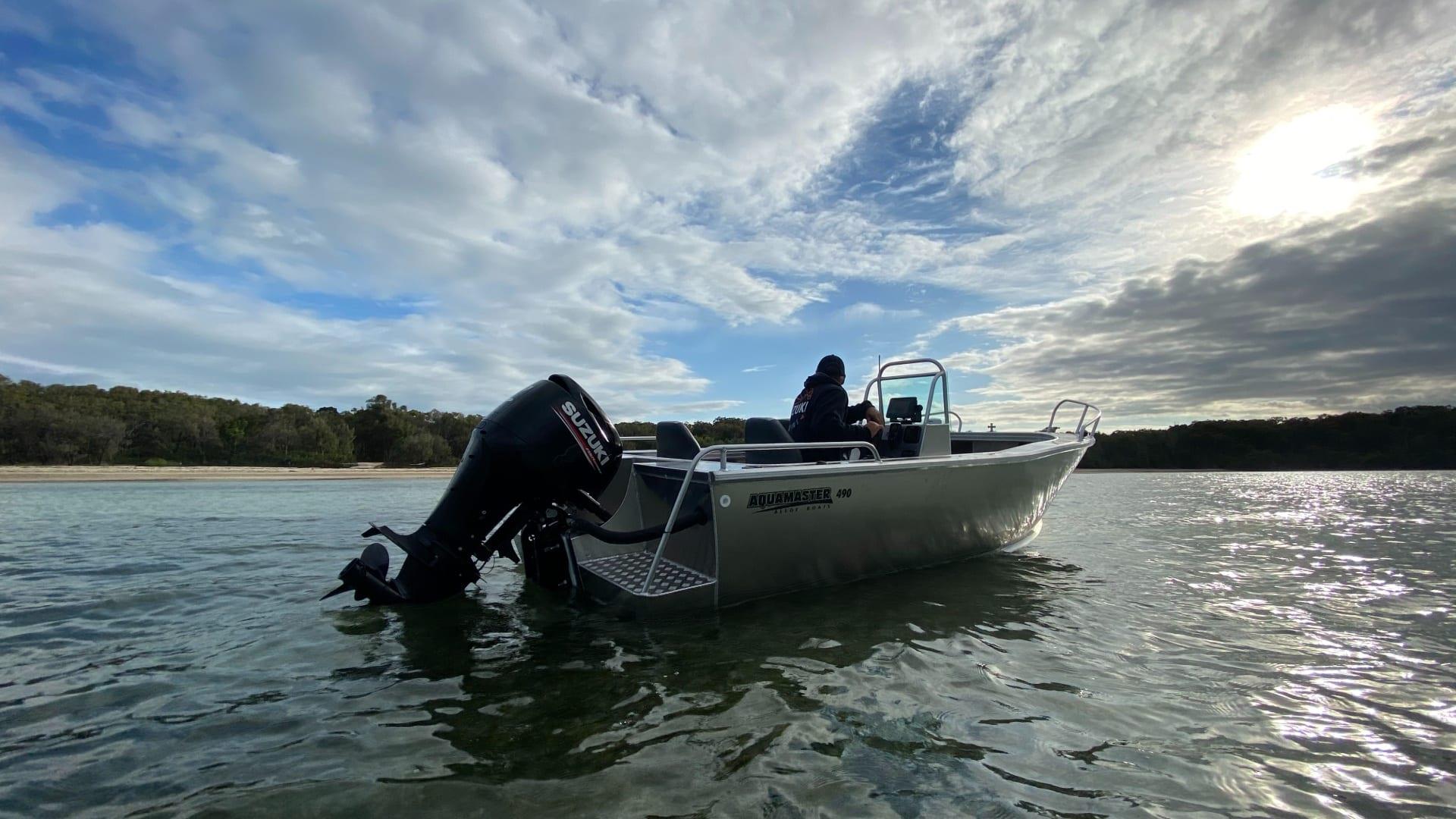

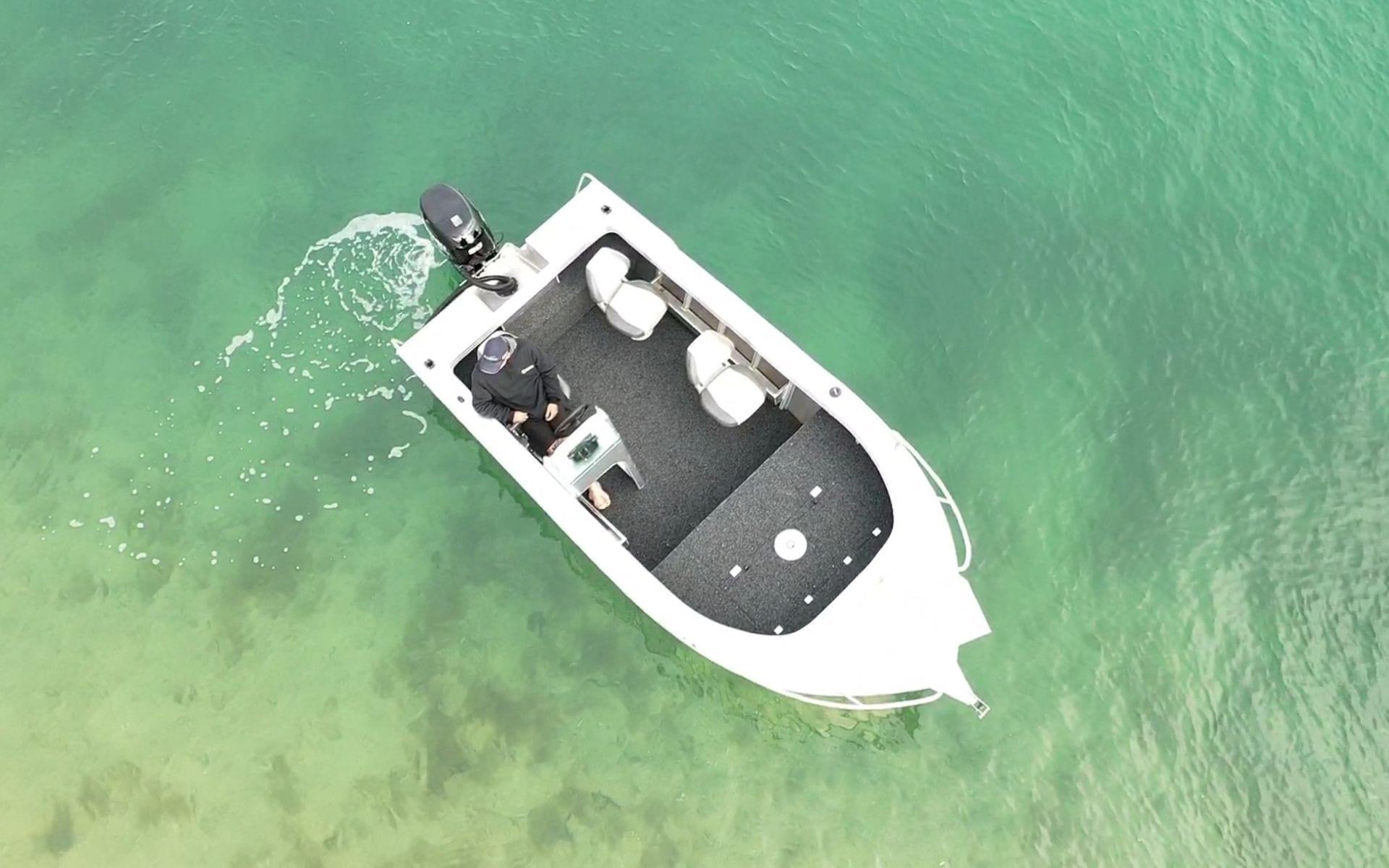

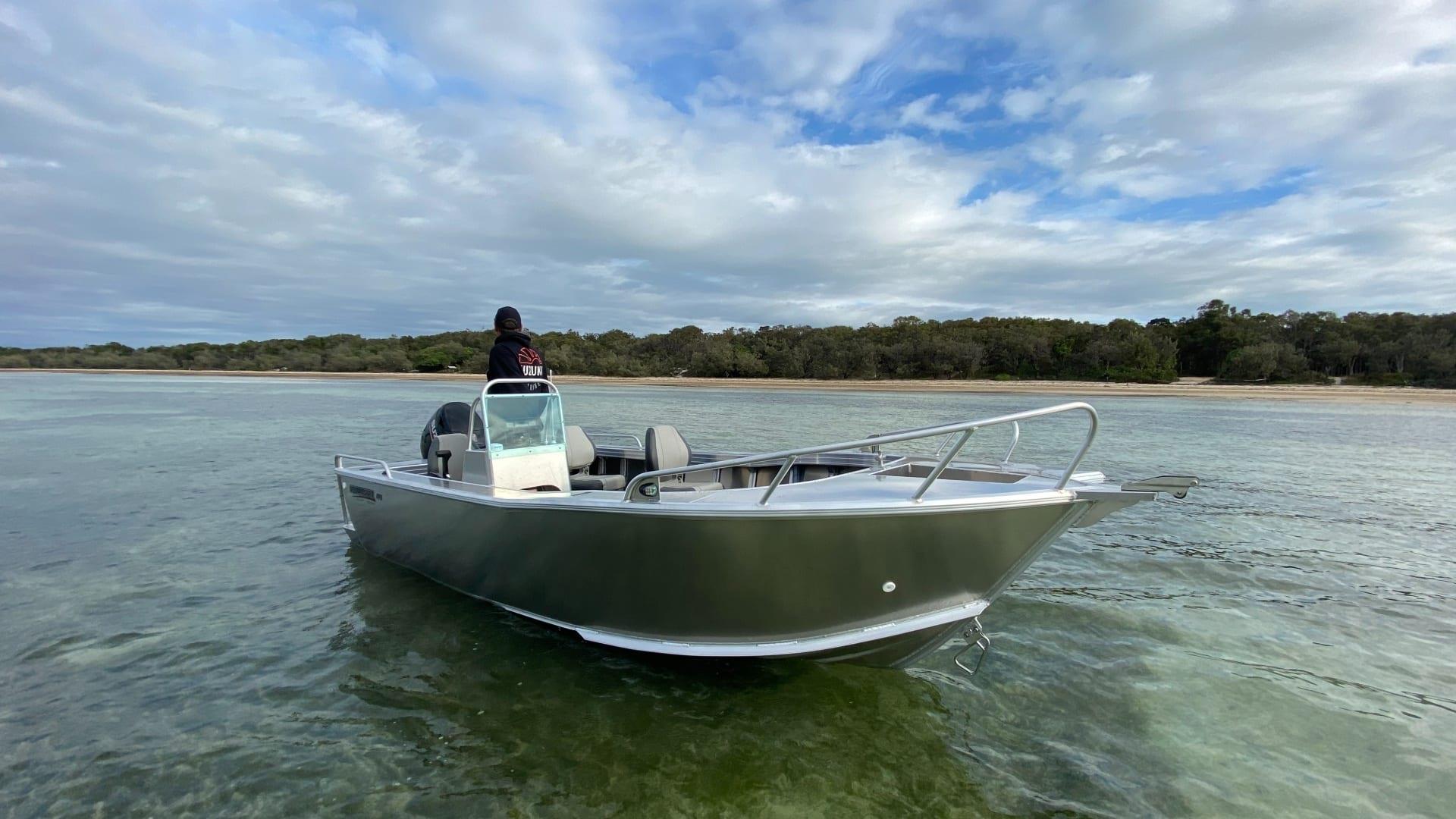

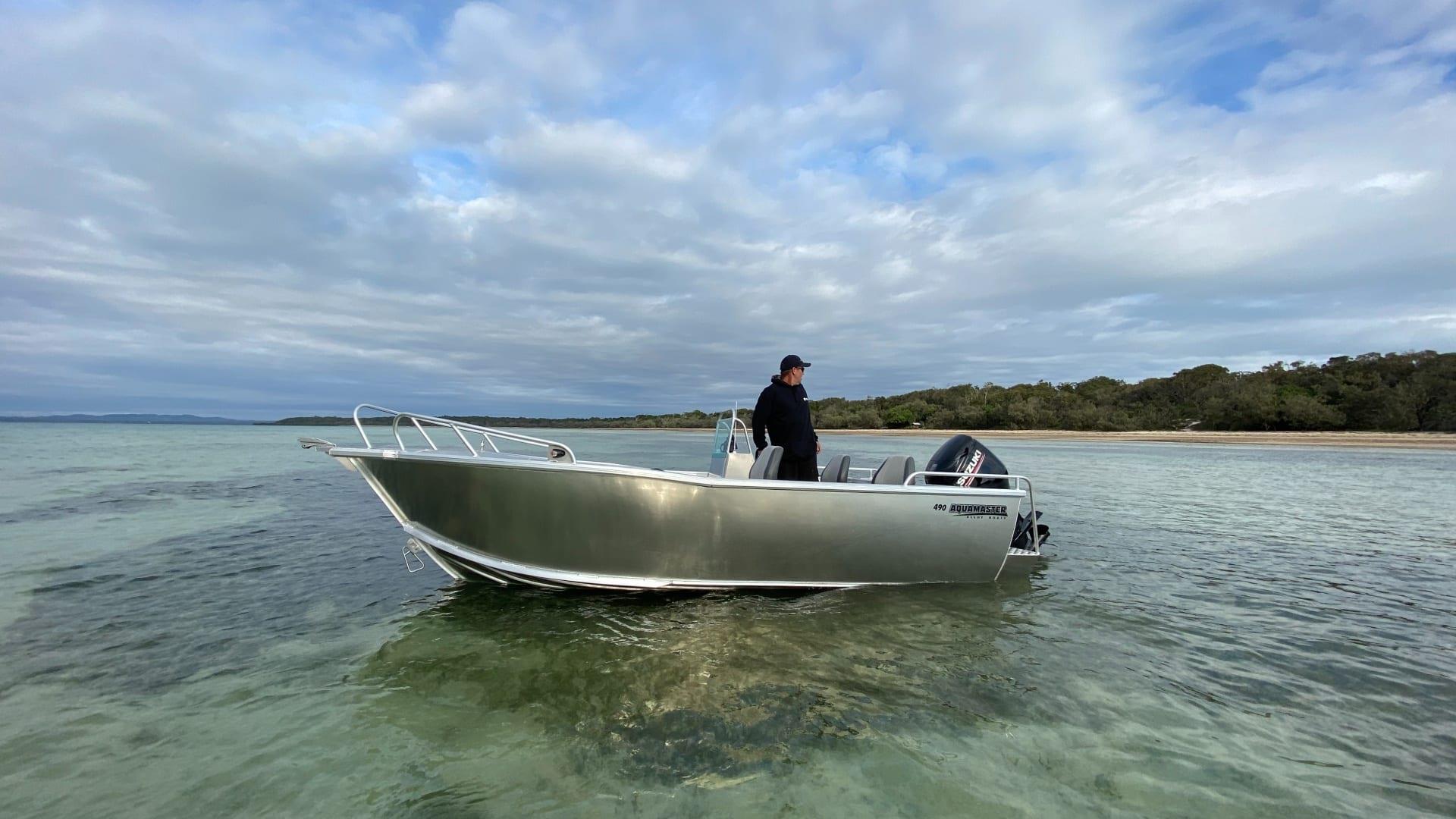

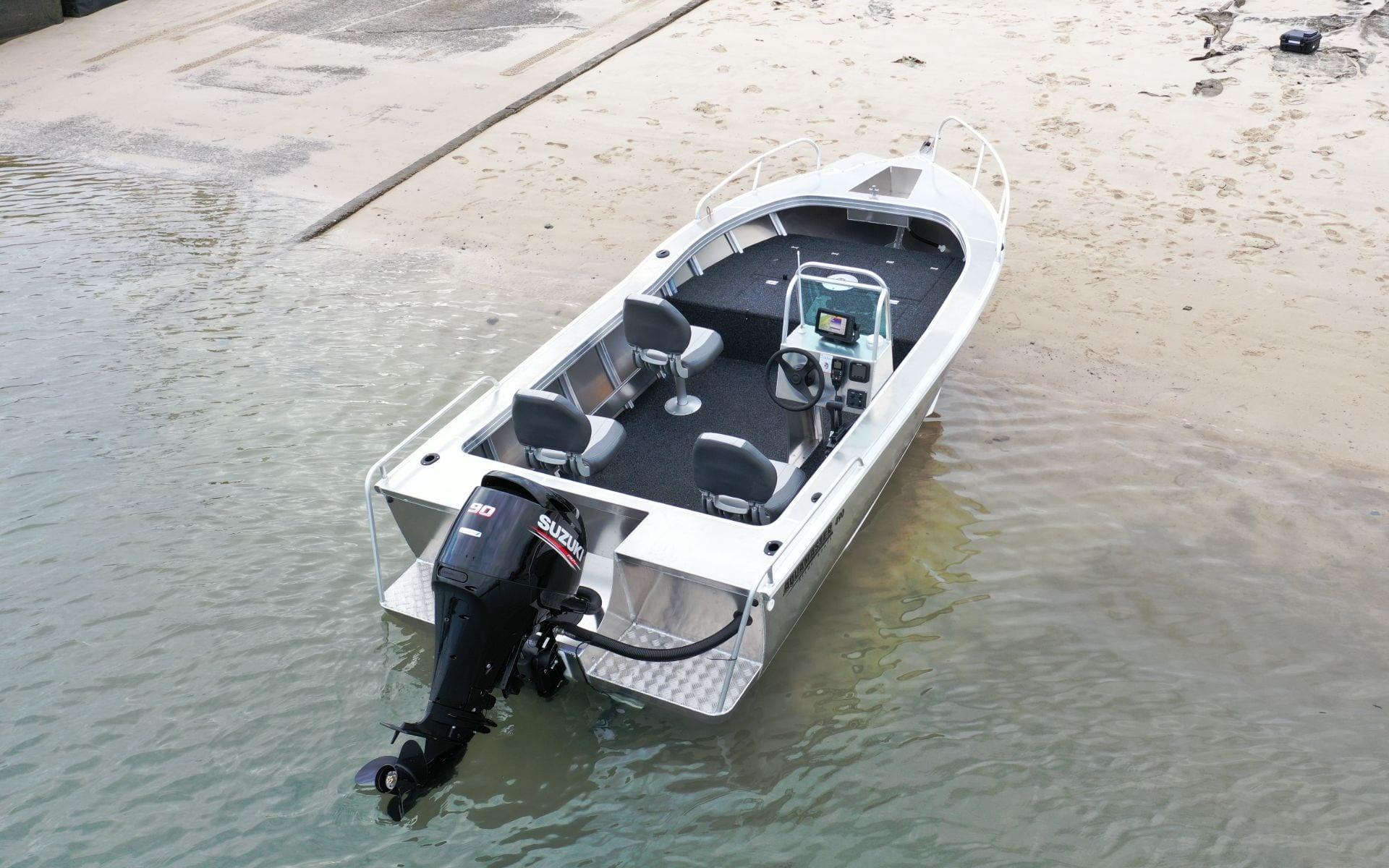

SIDE CONSOLE

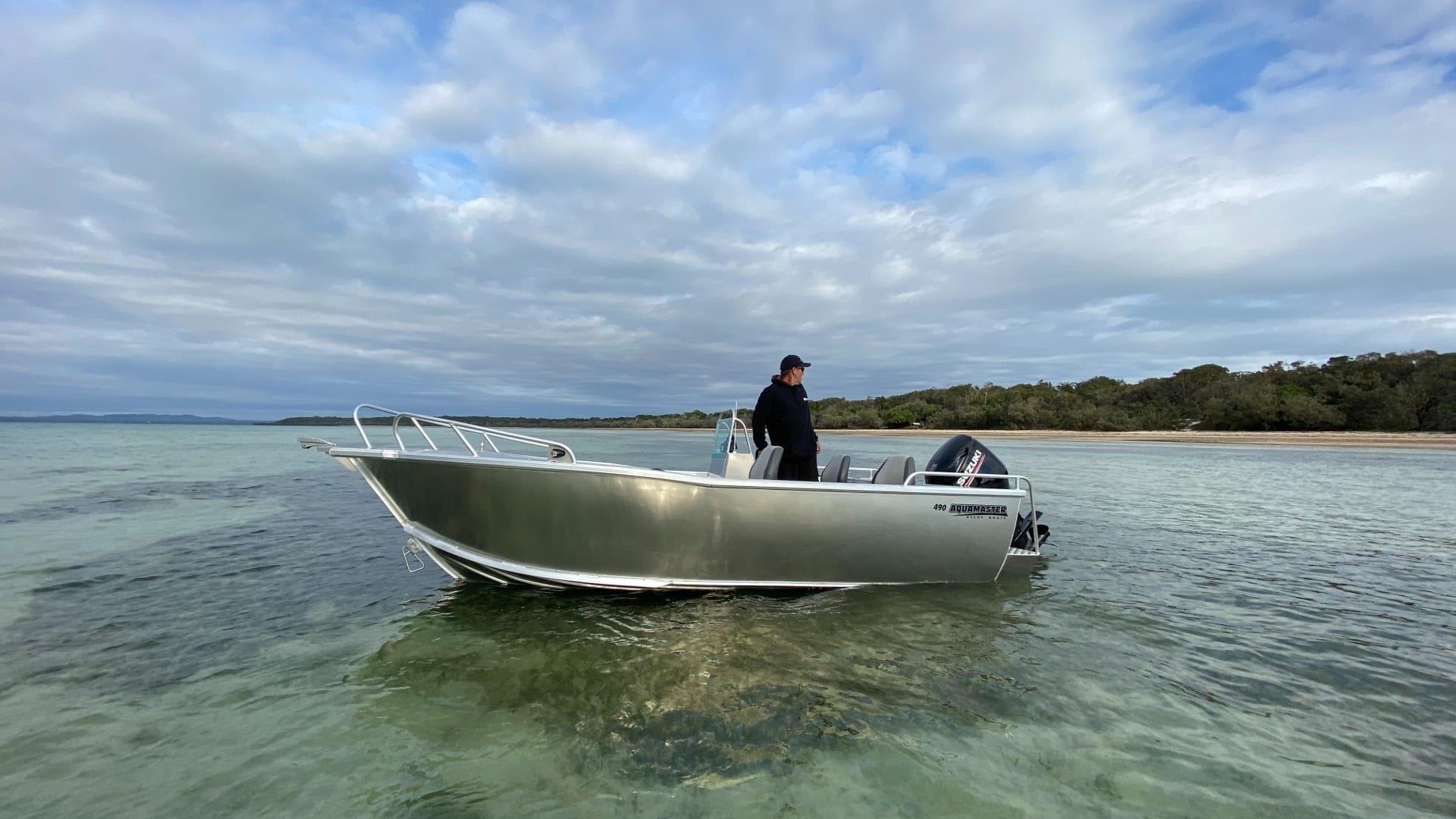

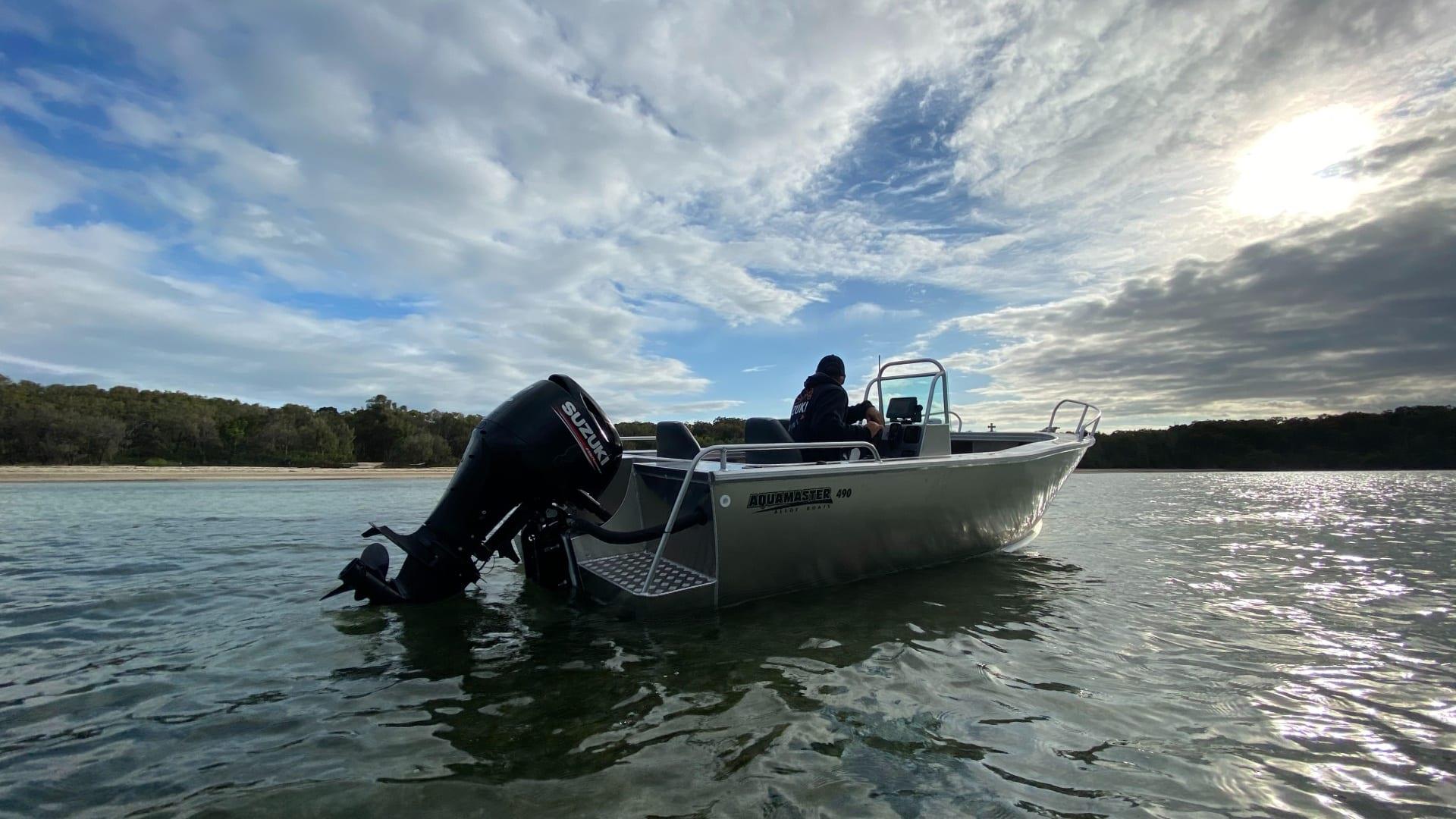

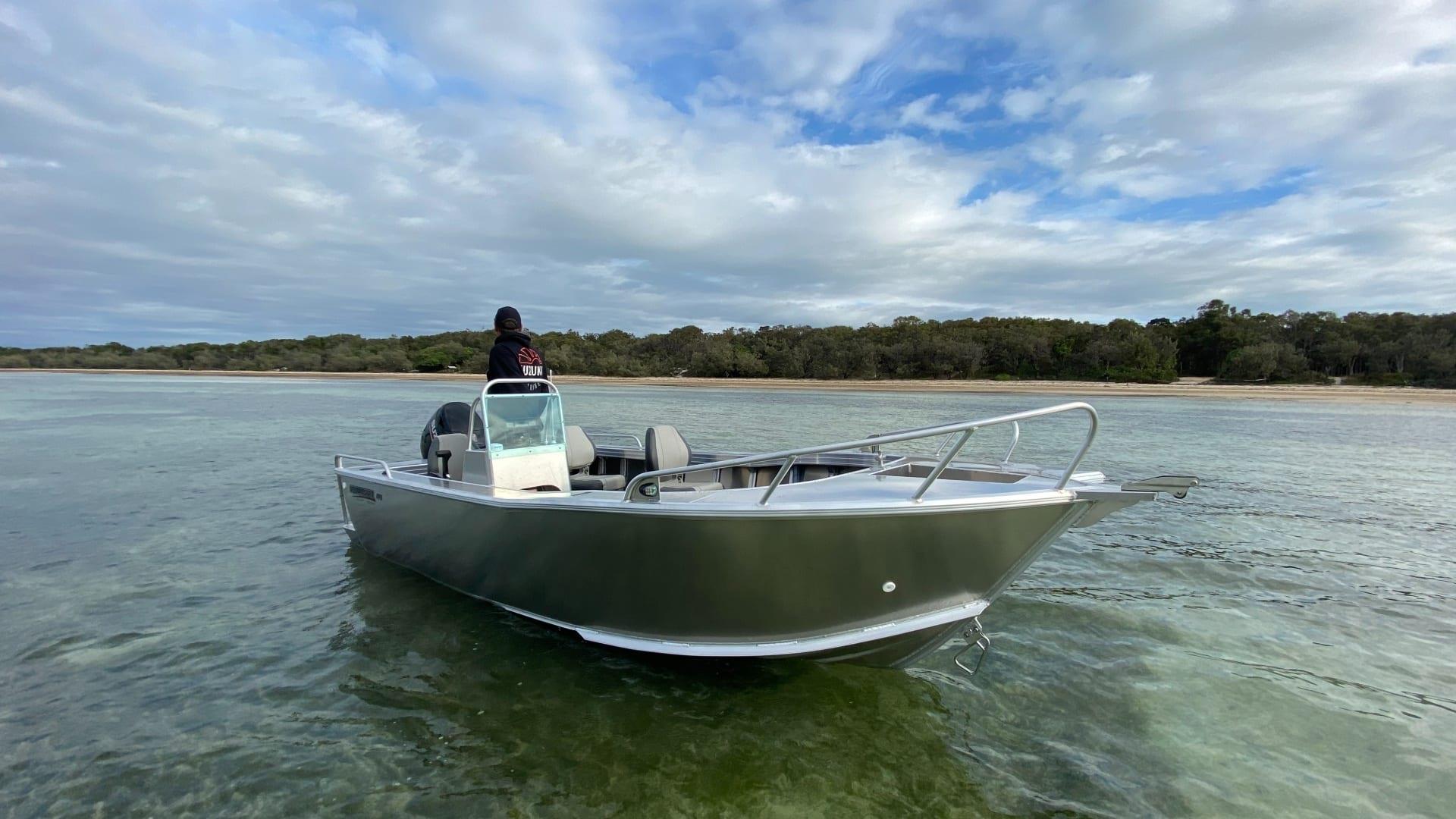

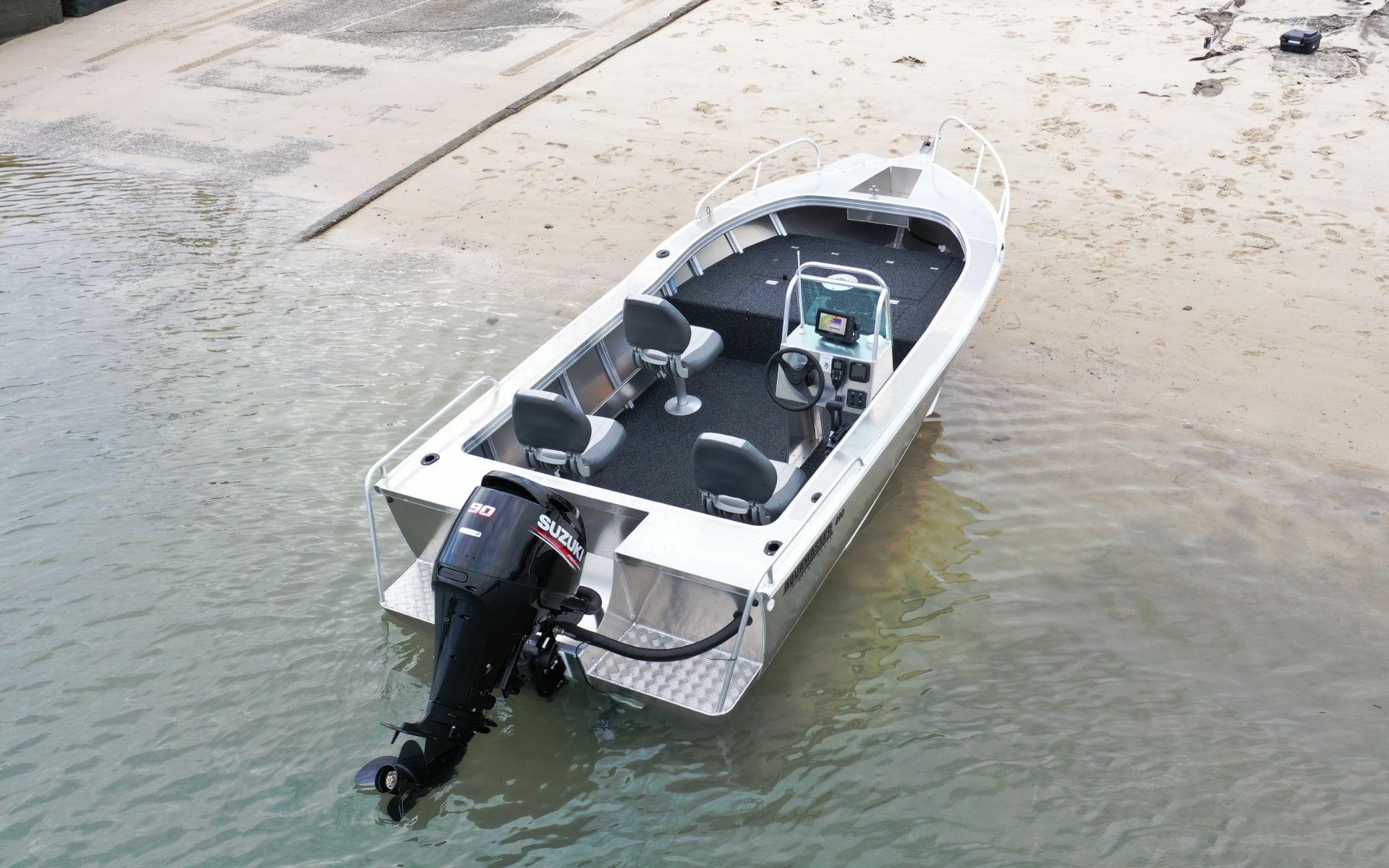

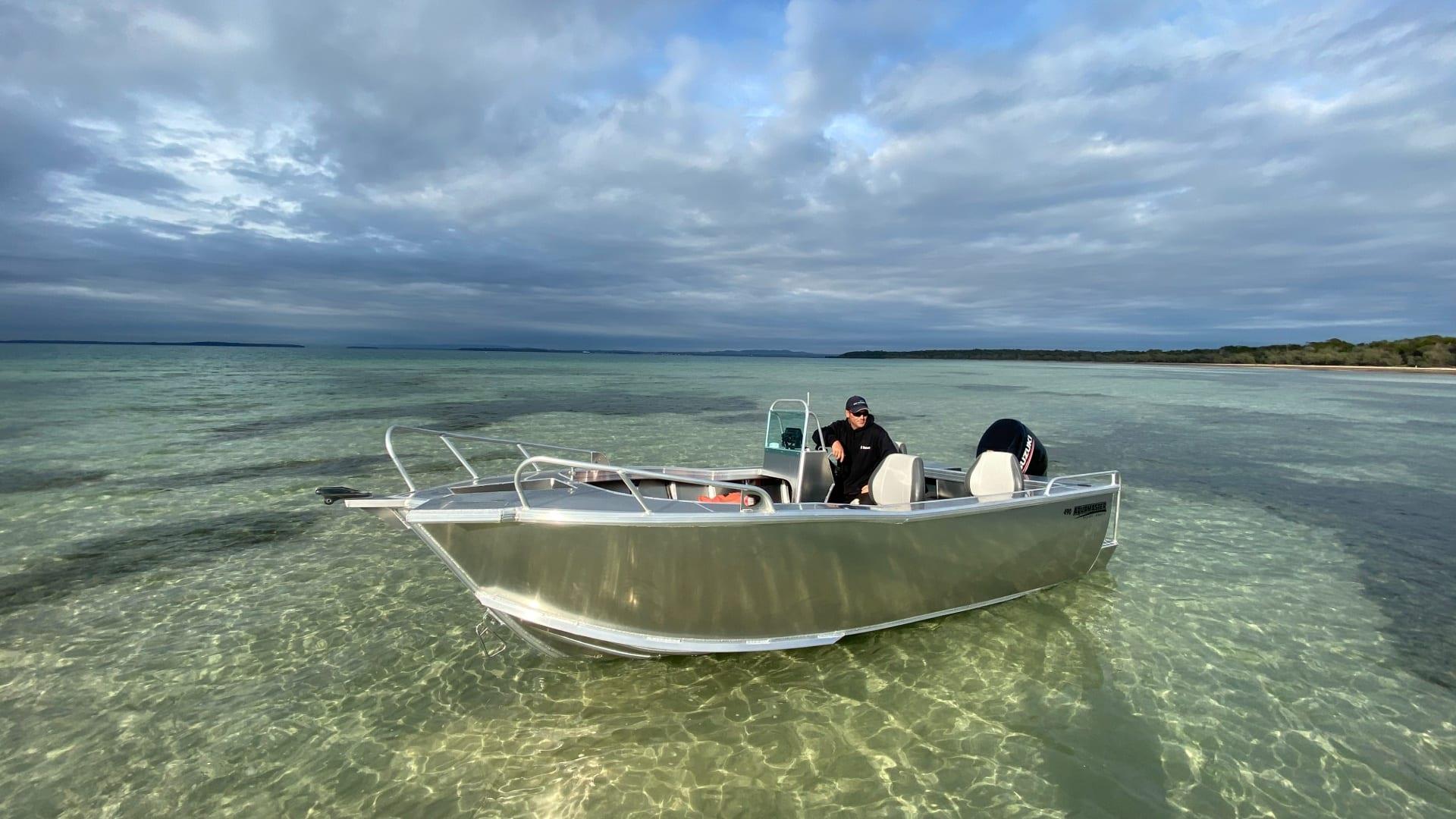

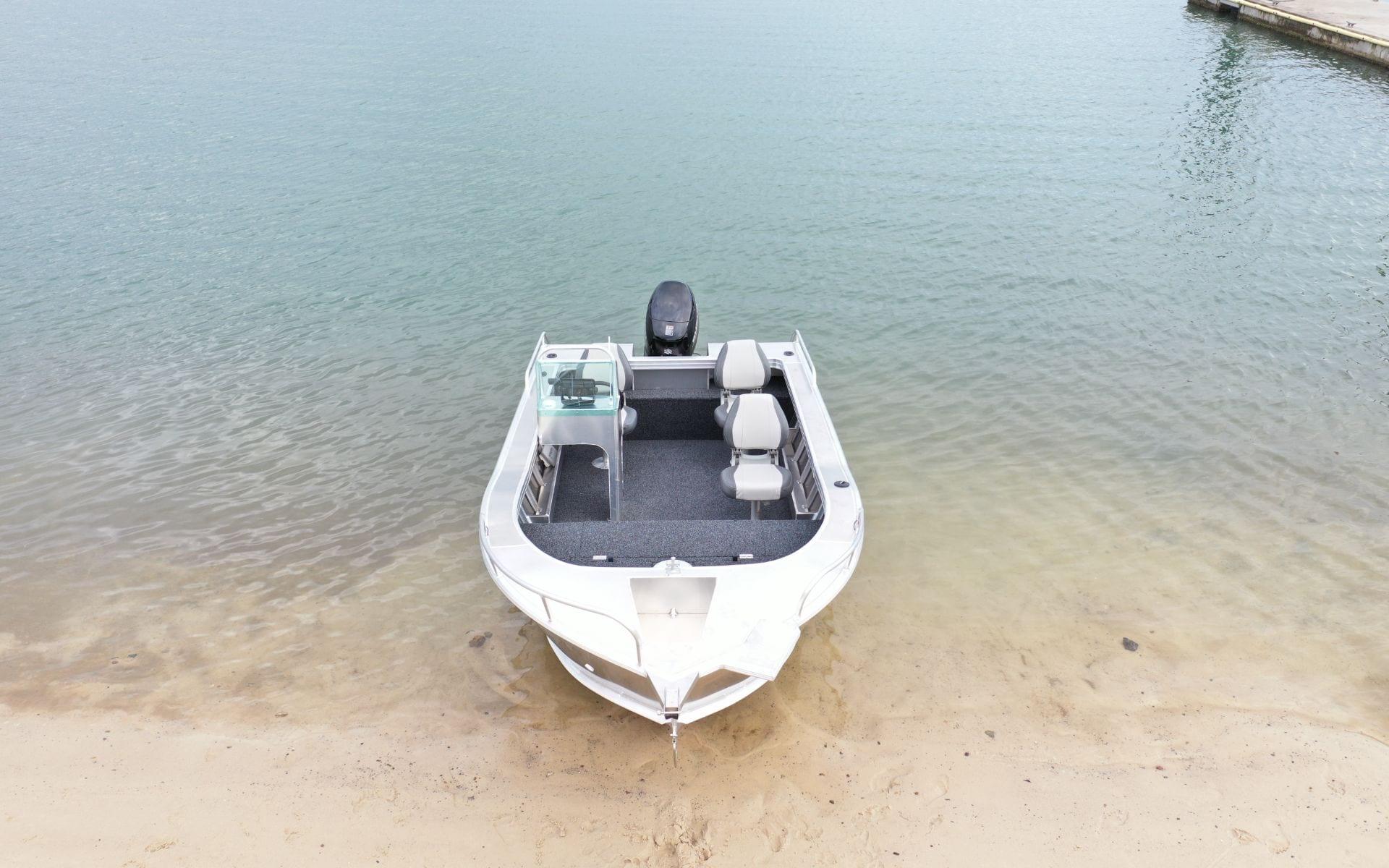

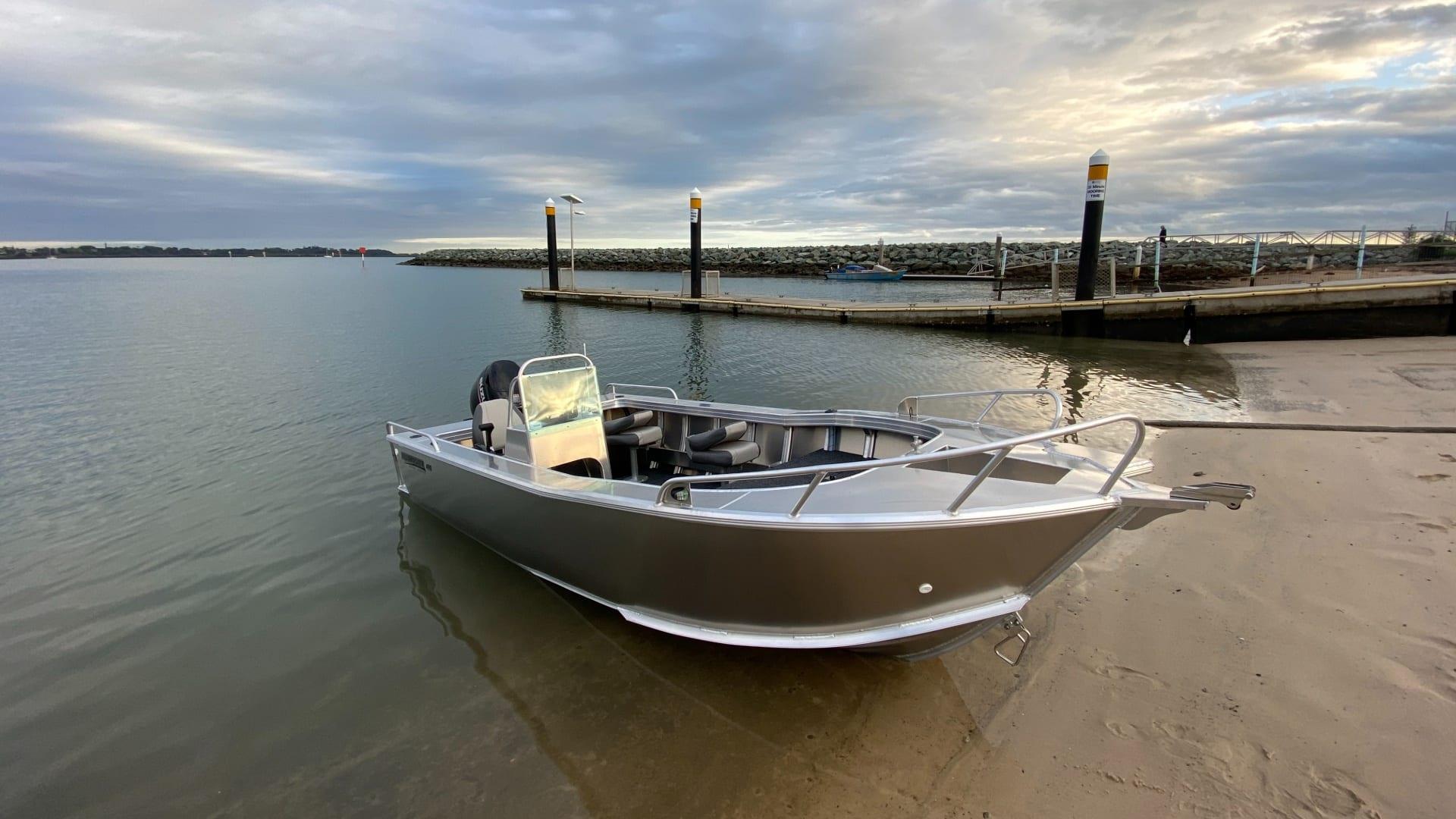

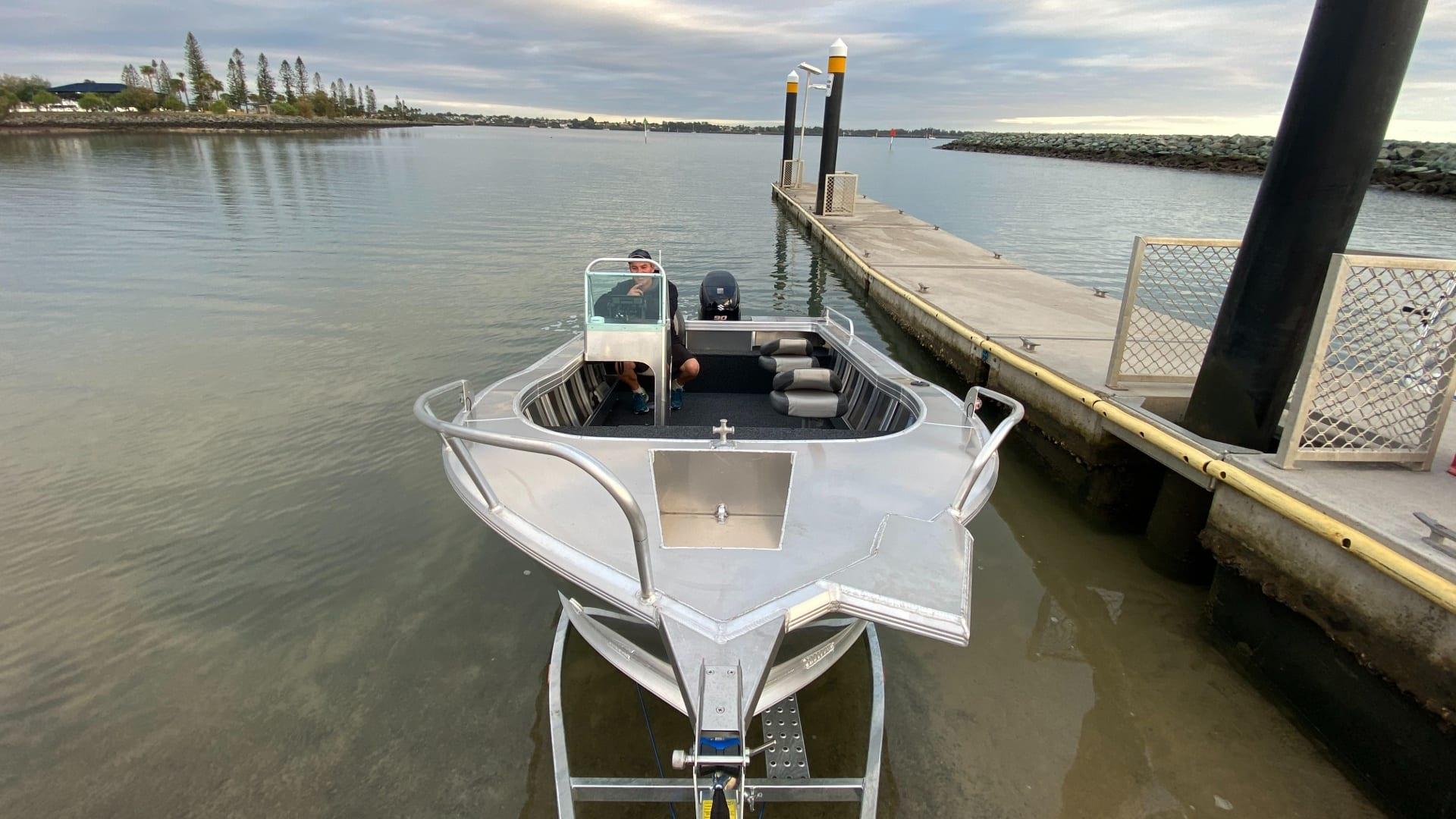

SIDE CONSOLE image img-nmm

SPECIFICATIONS & FEATURES

Specifications

Specifications 4.55 4.90 5.30 5.50 6.00
Hull Length (m) 4.55 4.90 5.30 5.50 6.00
Beam/Width (m) 2.15 2.20 2.30 2.40 2.45
Hull Type Aluminium Aluminium Aluminium Aluminium Aluminium
Hull Weight - dry (kg) Approx. 390 495 540 570 610
Depth (m) 1.00 1.05 1.10 1.15 1.15
Fuel Capacity (L) 77L 77L 112L 112L 112L
Minimum HP 40 50 70 80 100
Maximum HP Suzuki 75 90 140 150 150
Maximum HP Mercury 60 90 140 150 150
Bottom & Topsides (mm) 3 3 3 3 3
Transom Height L/S L/S X/L X/L X/L
Passenger Capacity 5 5 5 5 5



Features 4.55 4.90 5.30 5.50 6.00
Unpainted Hull Option Option Option Option Option
White Paint with Graphics ✔ ✔ ✔ ✔ ✔
Full Length Carpeted Floor ✔ ✔ ✔ ✔ ✔
Side Console with Screen ✔ ✔ ✔ ✔ ✔
Mechanical Steering ✔ ✔ ✔ ✔ ✔
Deluxe Bucket Seat 2 2 2 2 2
Pedestal Seats 2 2 2 2 2
Additional Seat Locators 2 2 2 2 2
Under Floor Fuel Tank ✔ ✔ ✔ ✔ ✔
Anchor Well ✔ ✔ ✔ ✔ ✔
Side Decks ✔ ✔ ✔ ✔ ✔
Side Pockets ✔ ✔ ✔ ✔ ✔
Bow Rail (Split) ✔ ✔ ✔ ✔ ✔
Side Rails ✔ ✔ ✔ ✔ ✔
Rear Boarding Step Pod Pod Pod Pod Pod
Bow Sprit & Roller ✔ ✔ ✔ ✔ ✔
Navigation Lights ✔ ✔ ✔ ✔ ✔
Bilge Pump ✔ ✔ ✔ ✔ ✔
Rod Holders 4 4 4 4 4
Island Type Motor Well Pod Pod Pod Pod Pod
