BAR CRUSHER

C SERIES

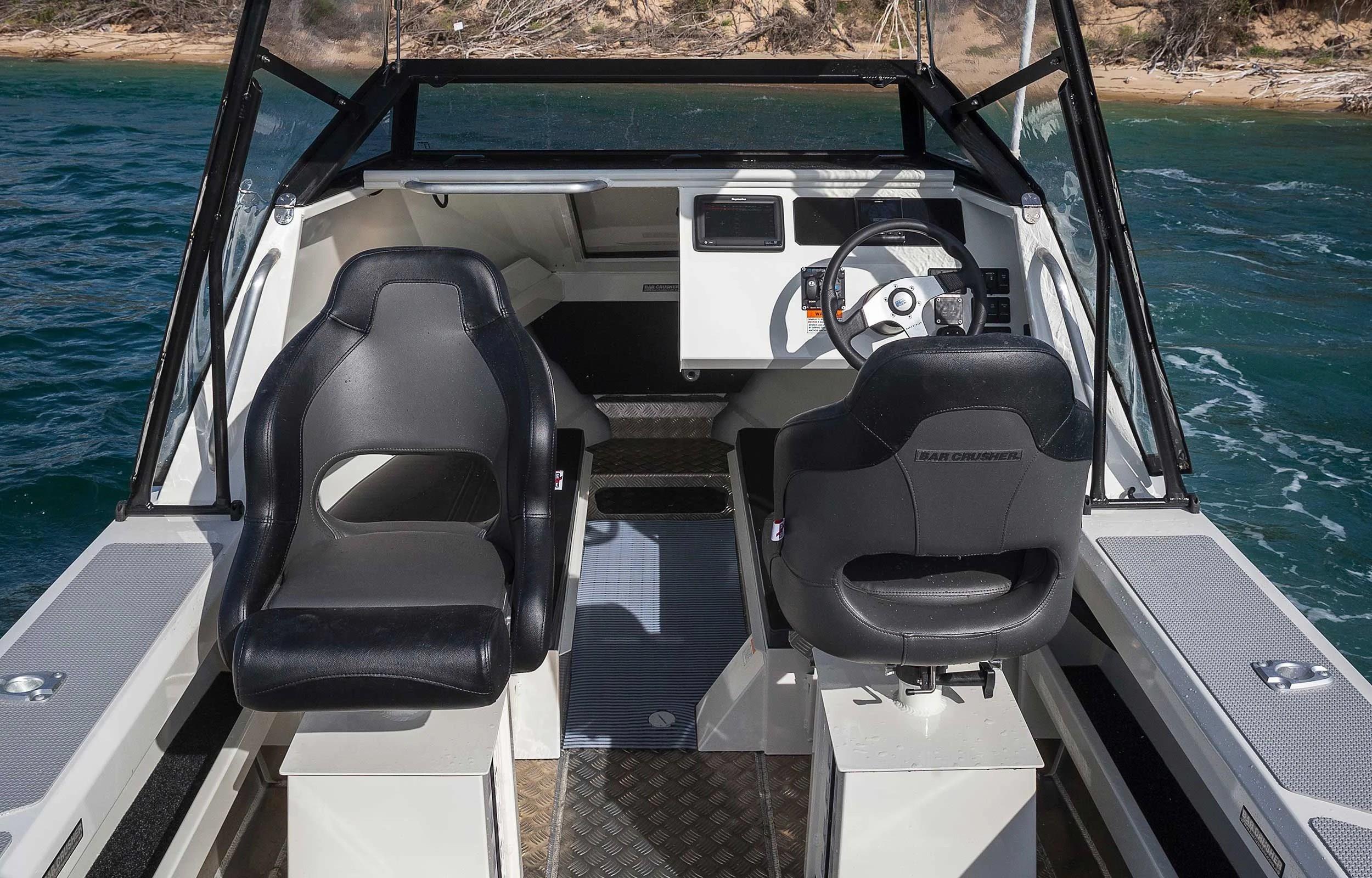

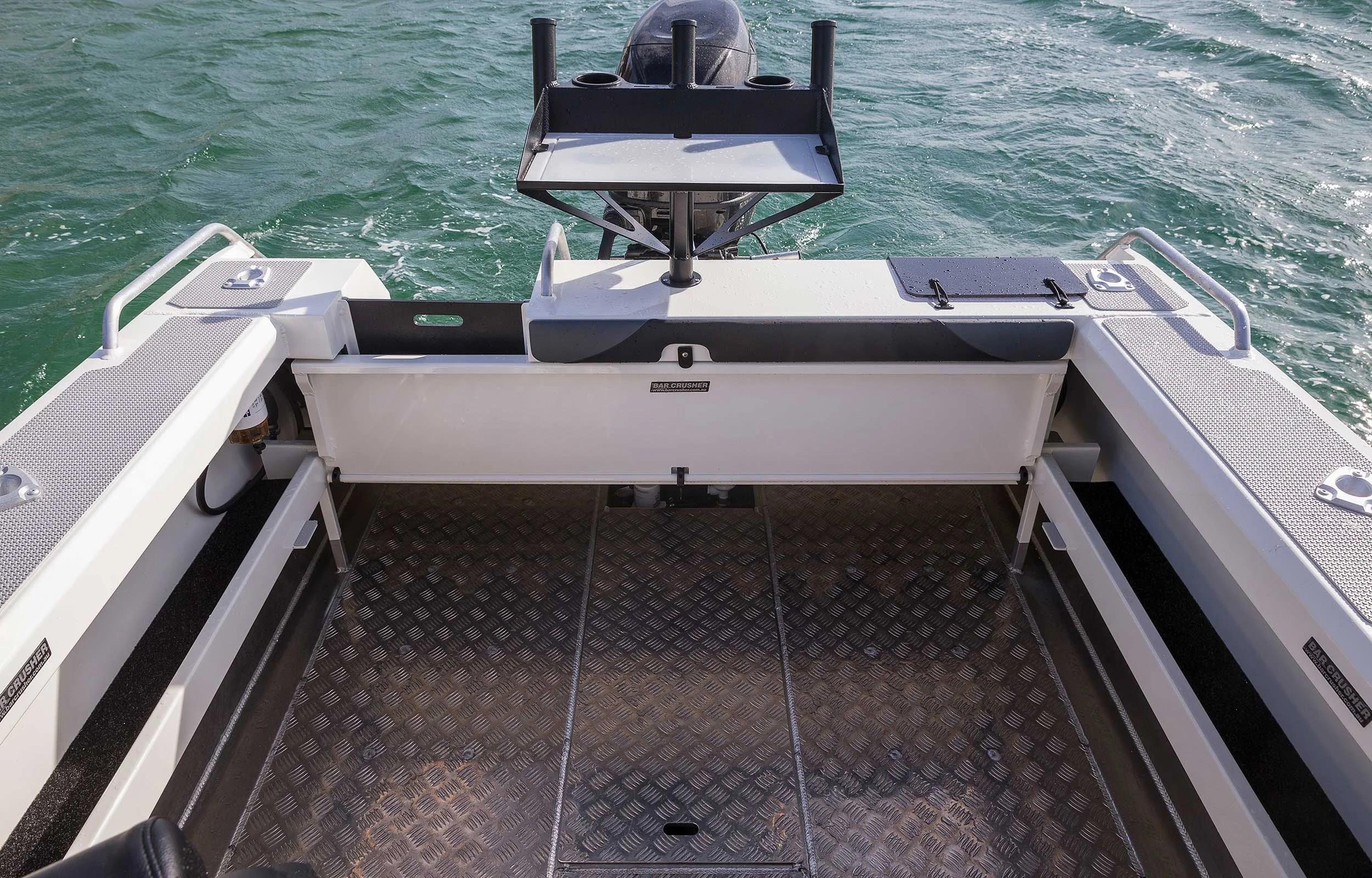

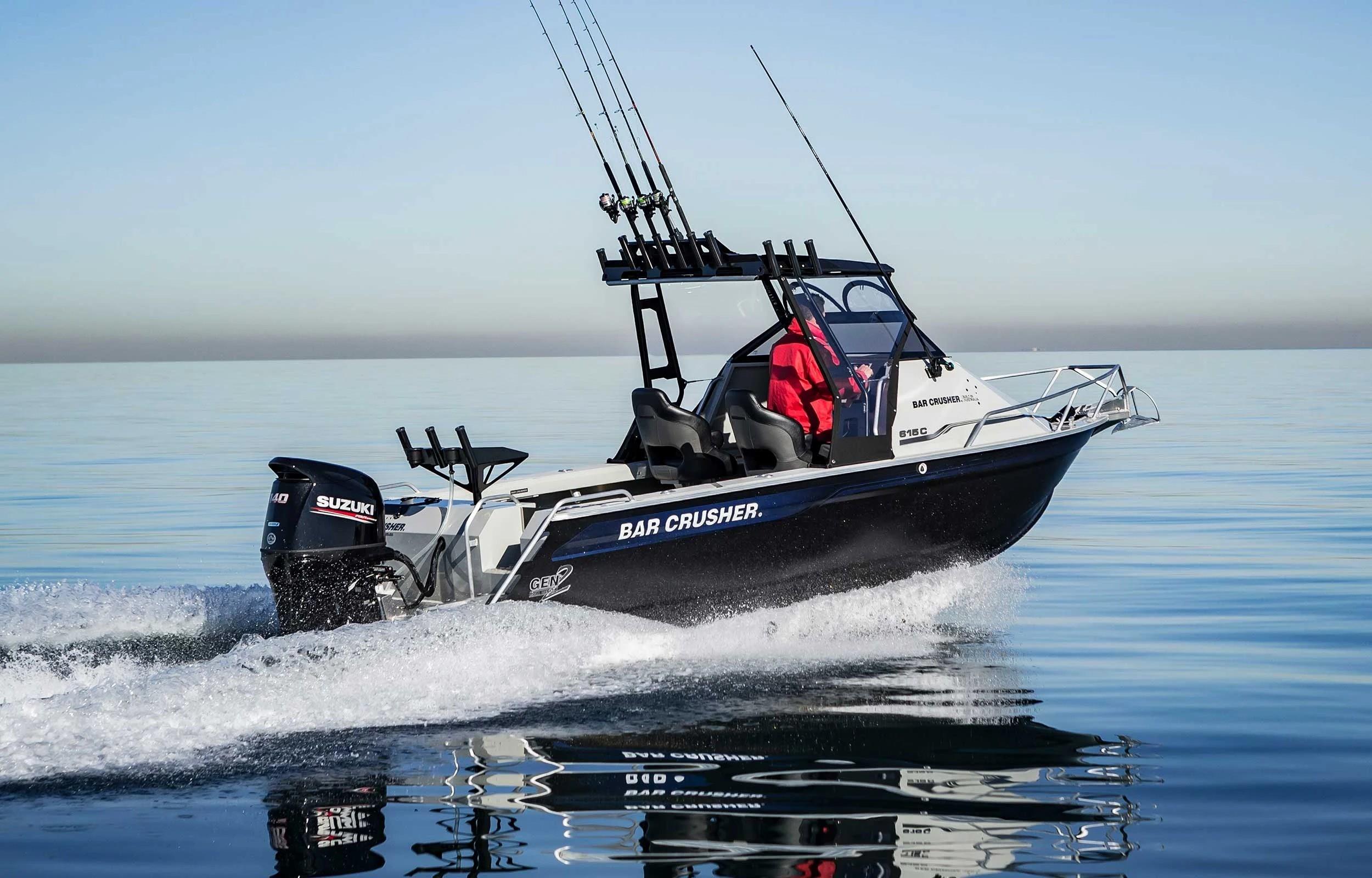

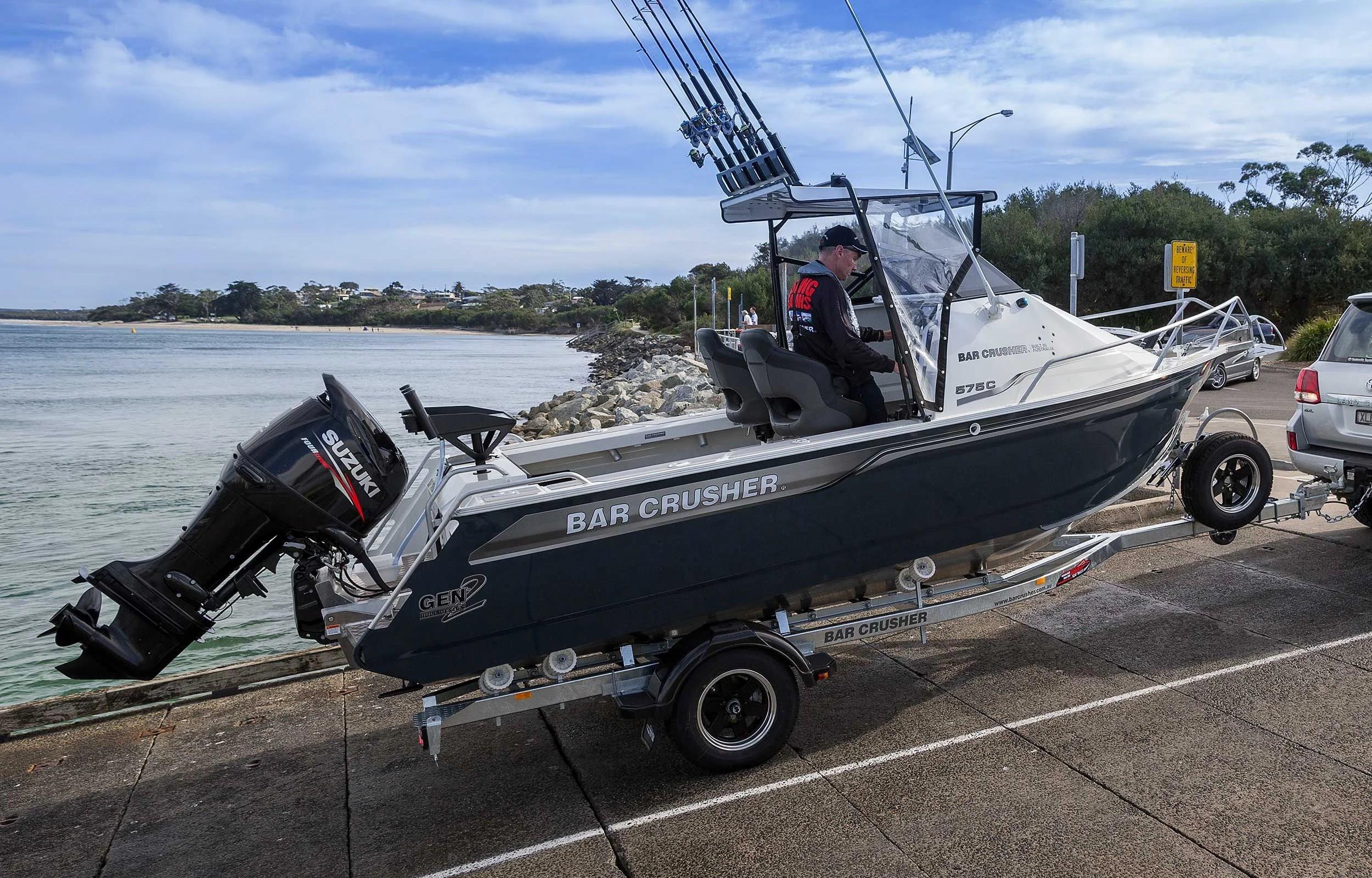

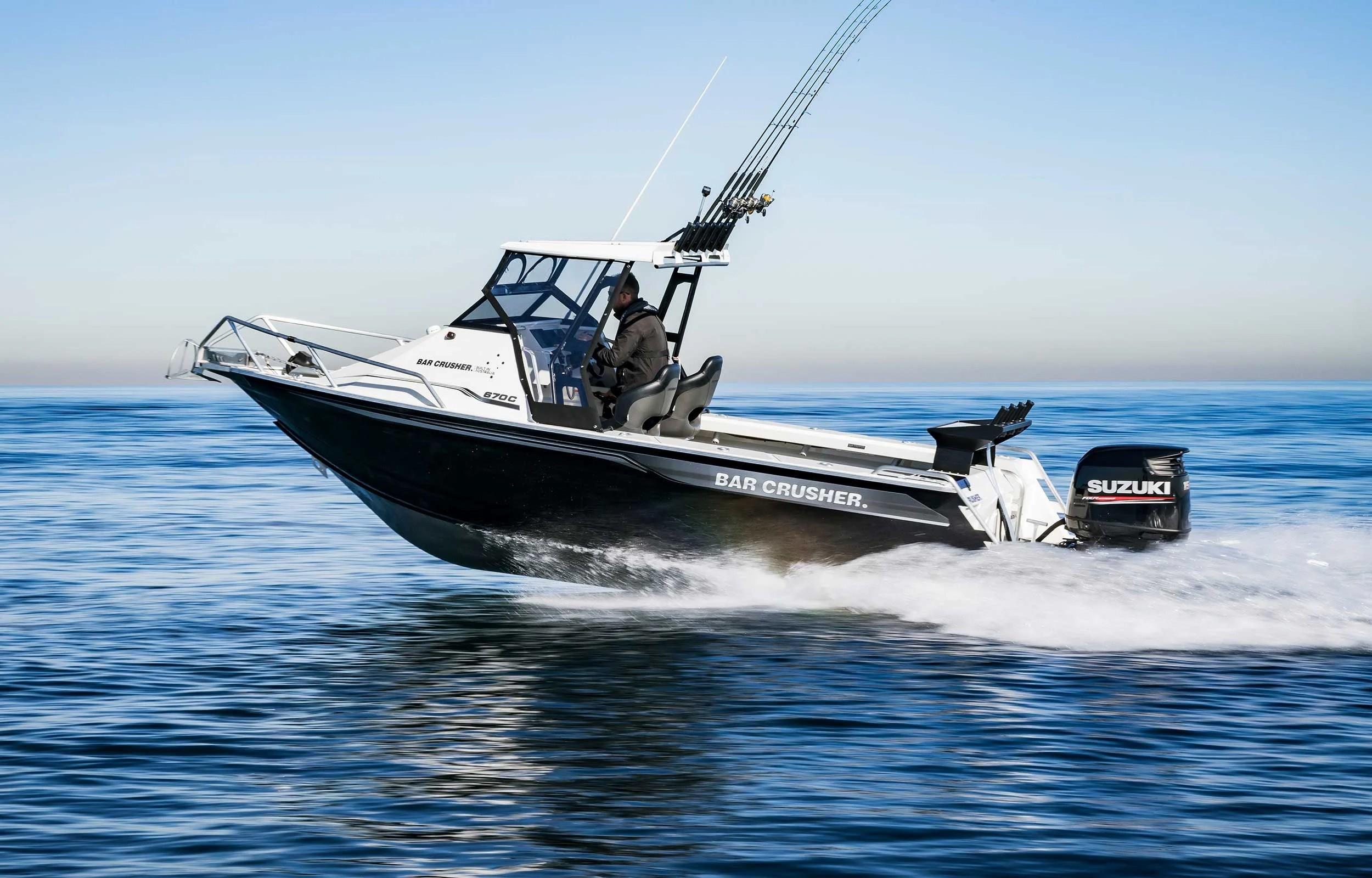

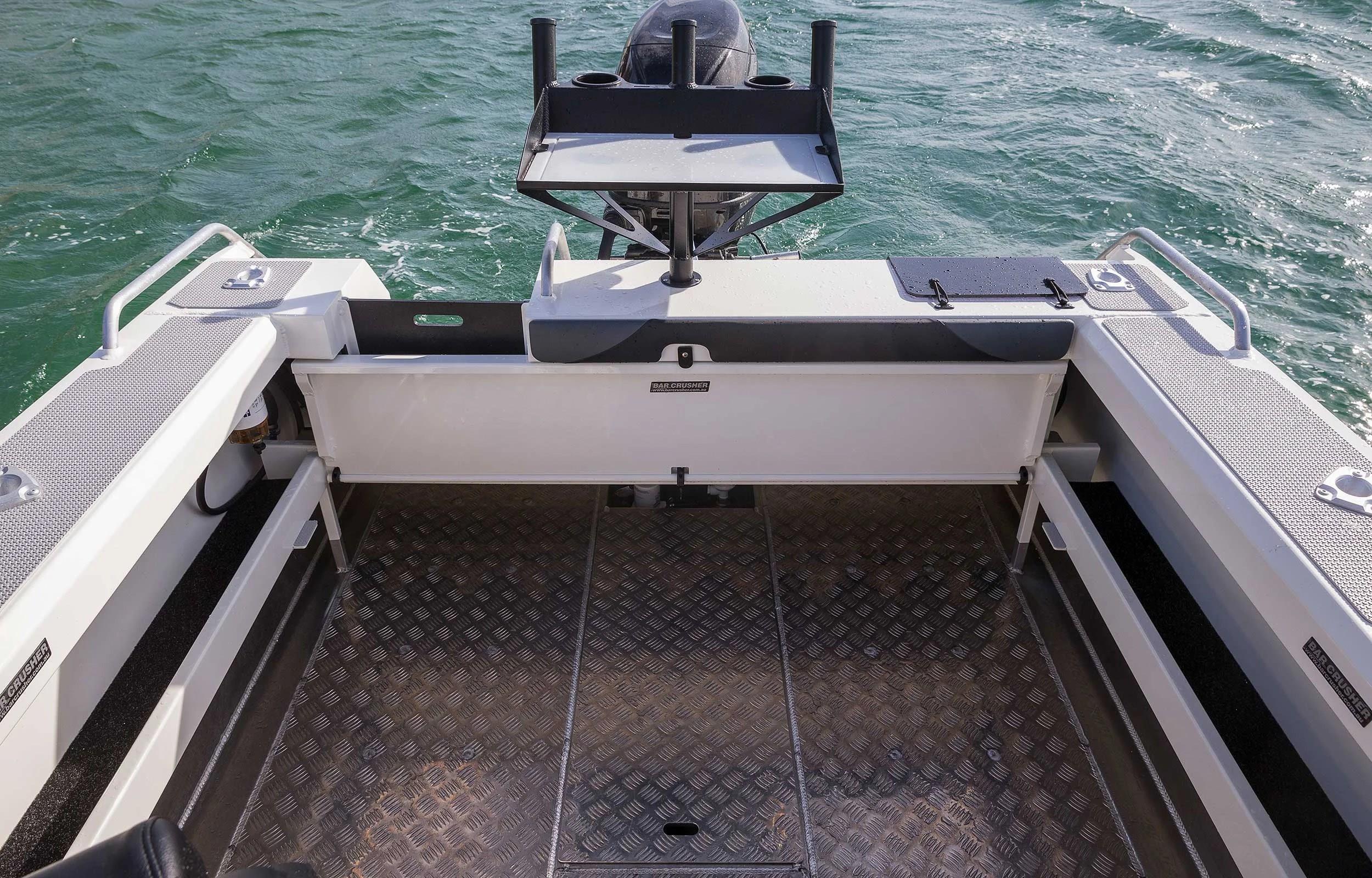

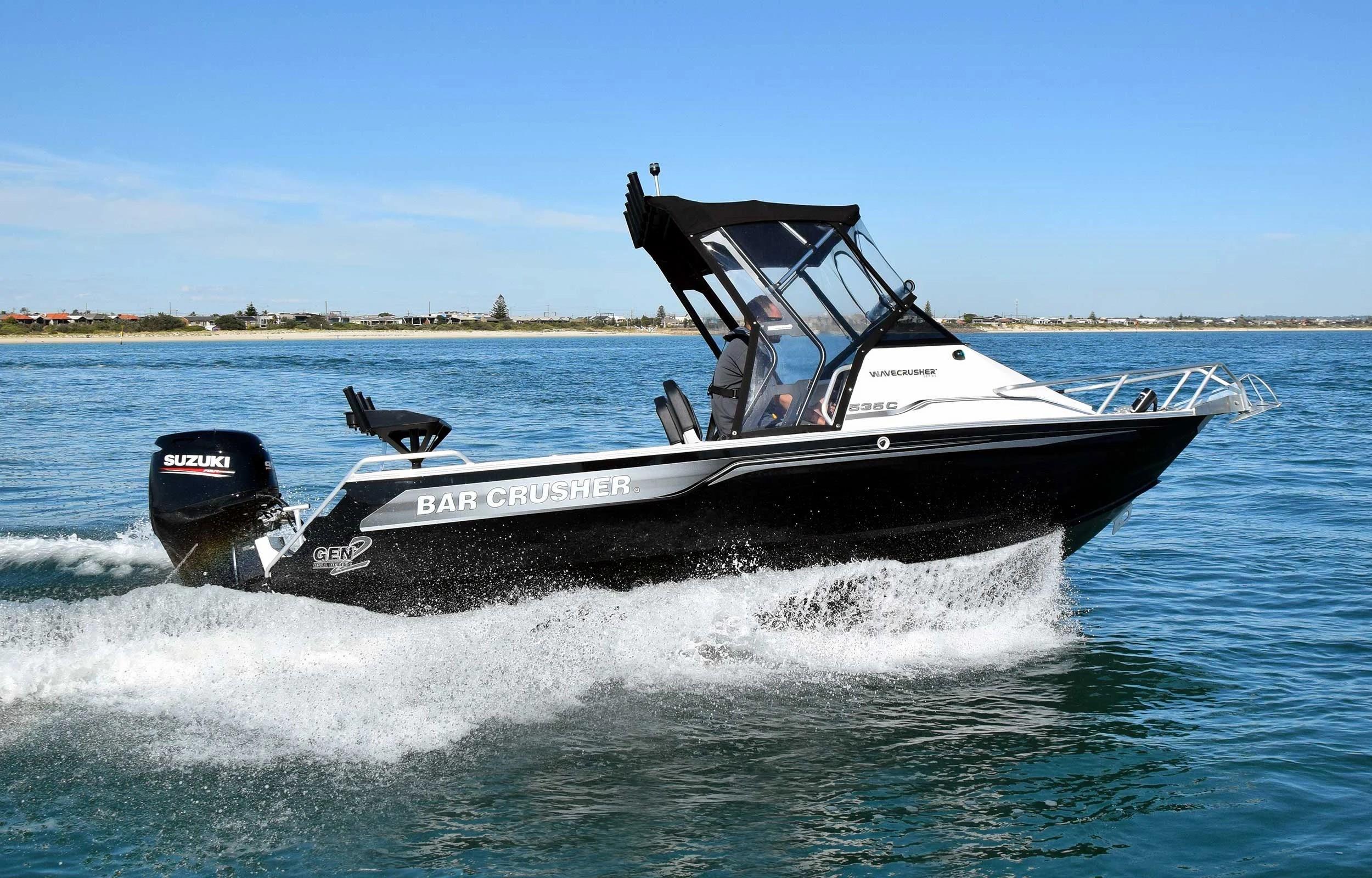

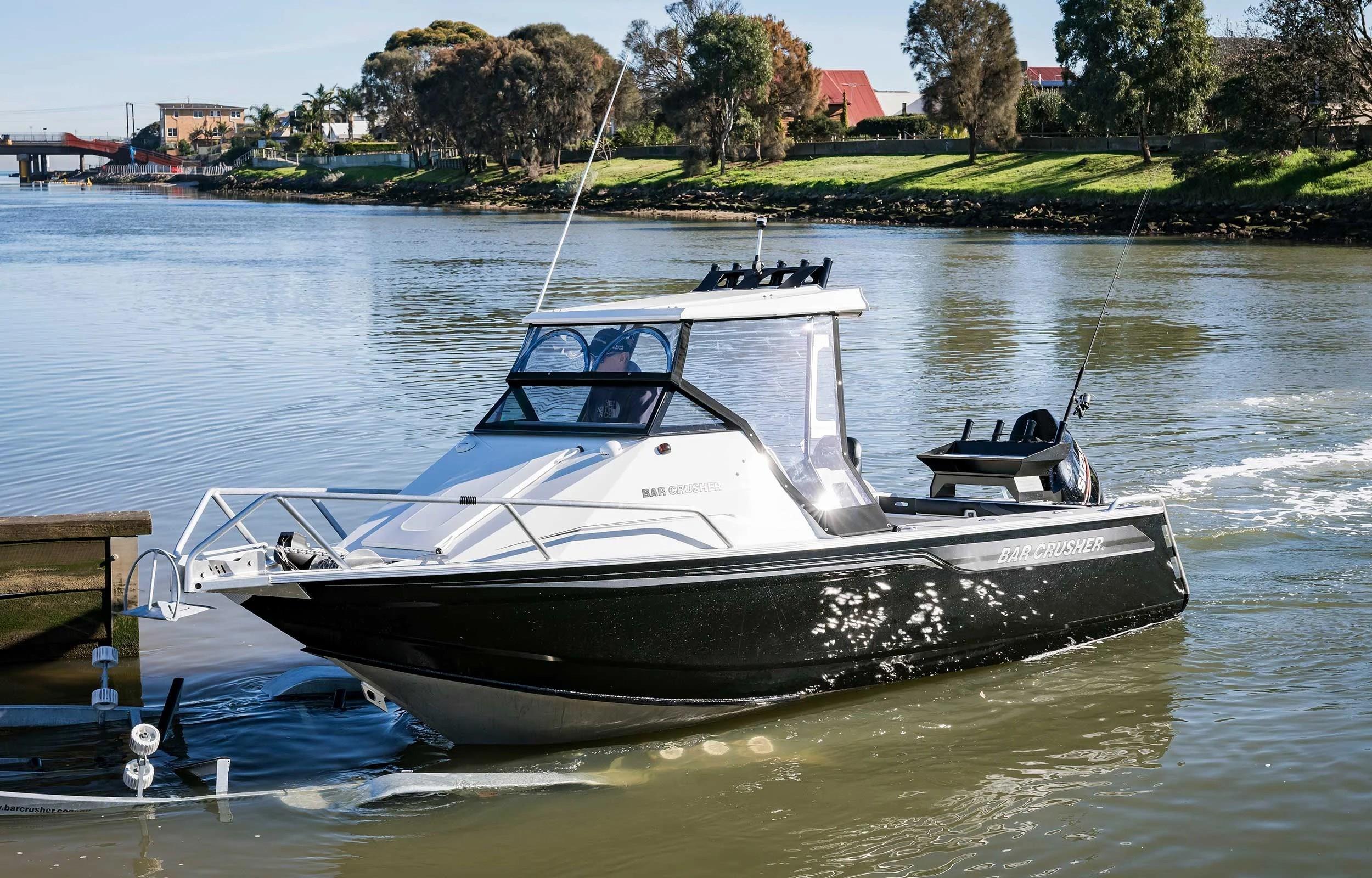

Clear and spacious cockpit fishing areas, good weather protection, and folding hard tops for easy storage in garages/carports, the C series provides the best of all worlds!

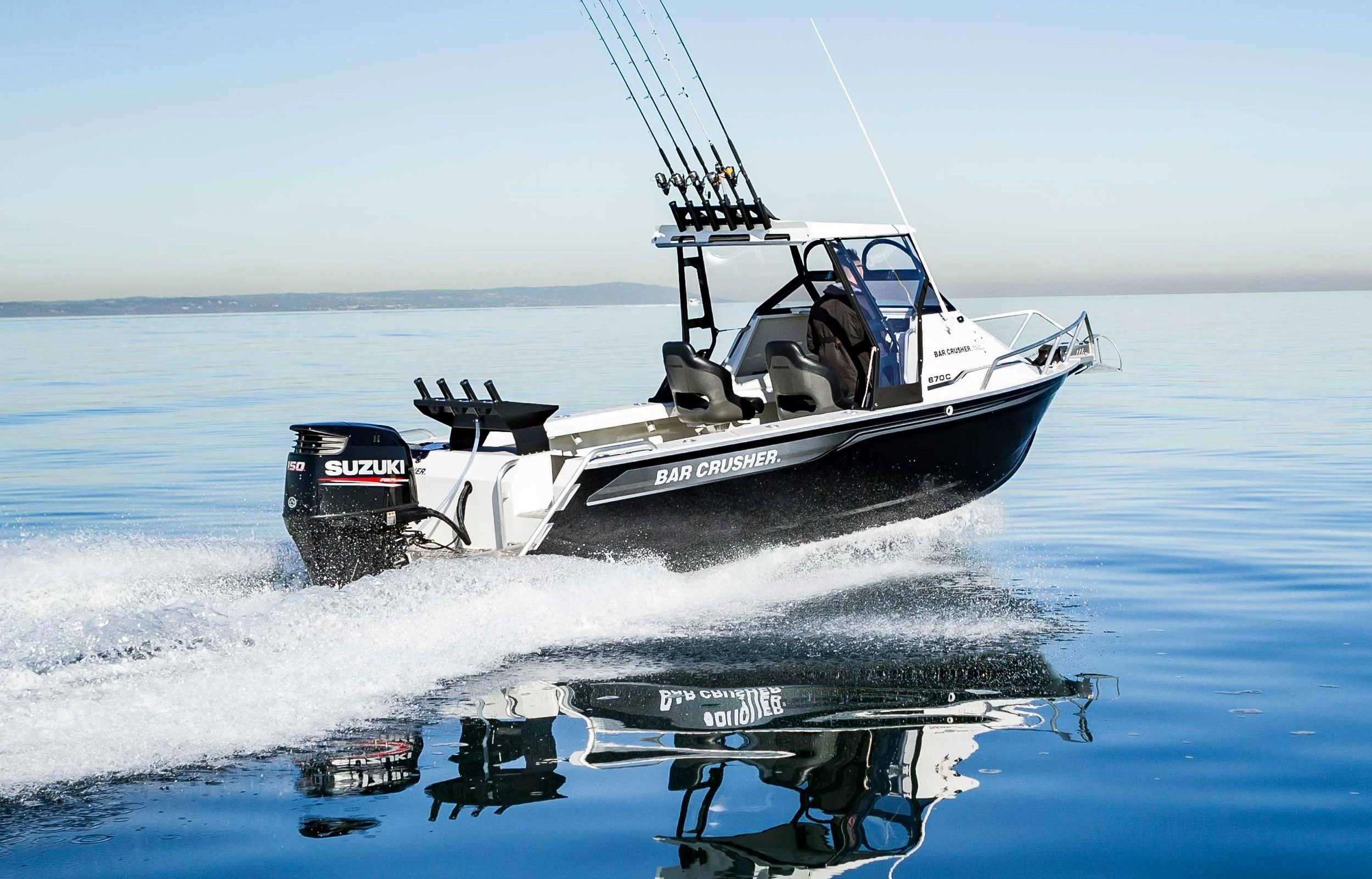

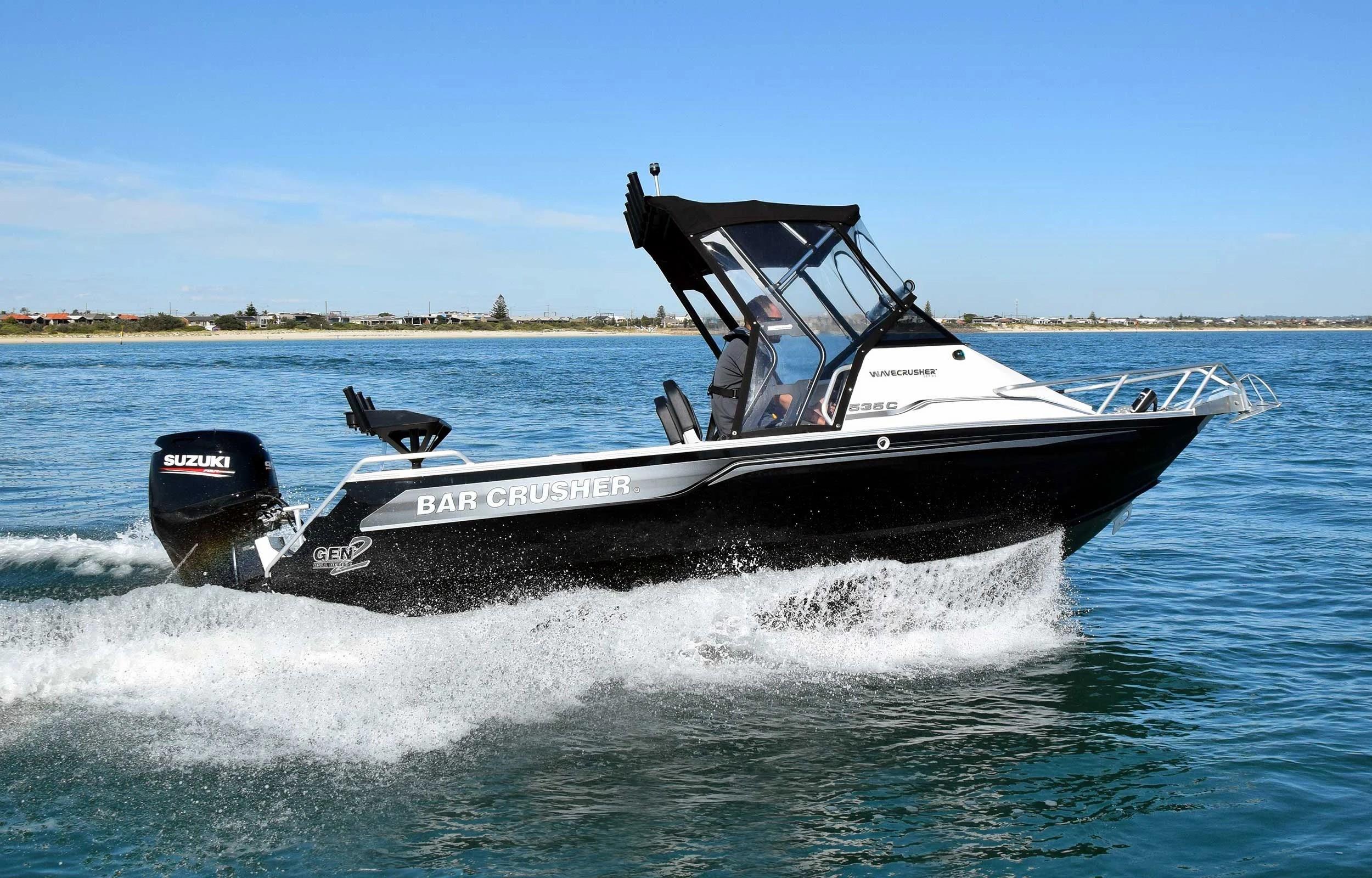

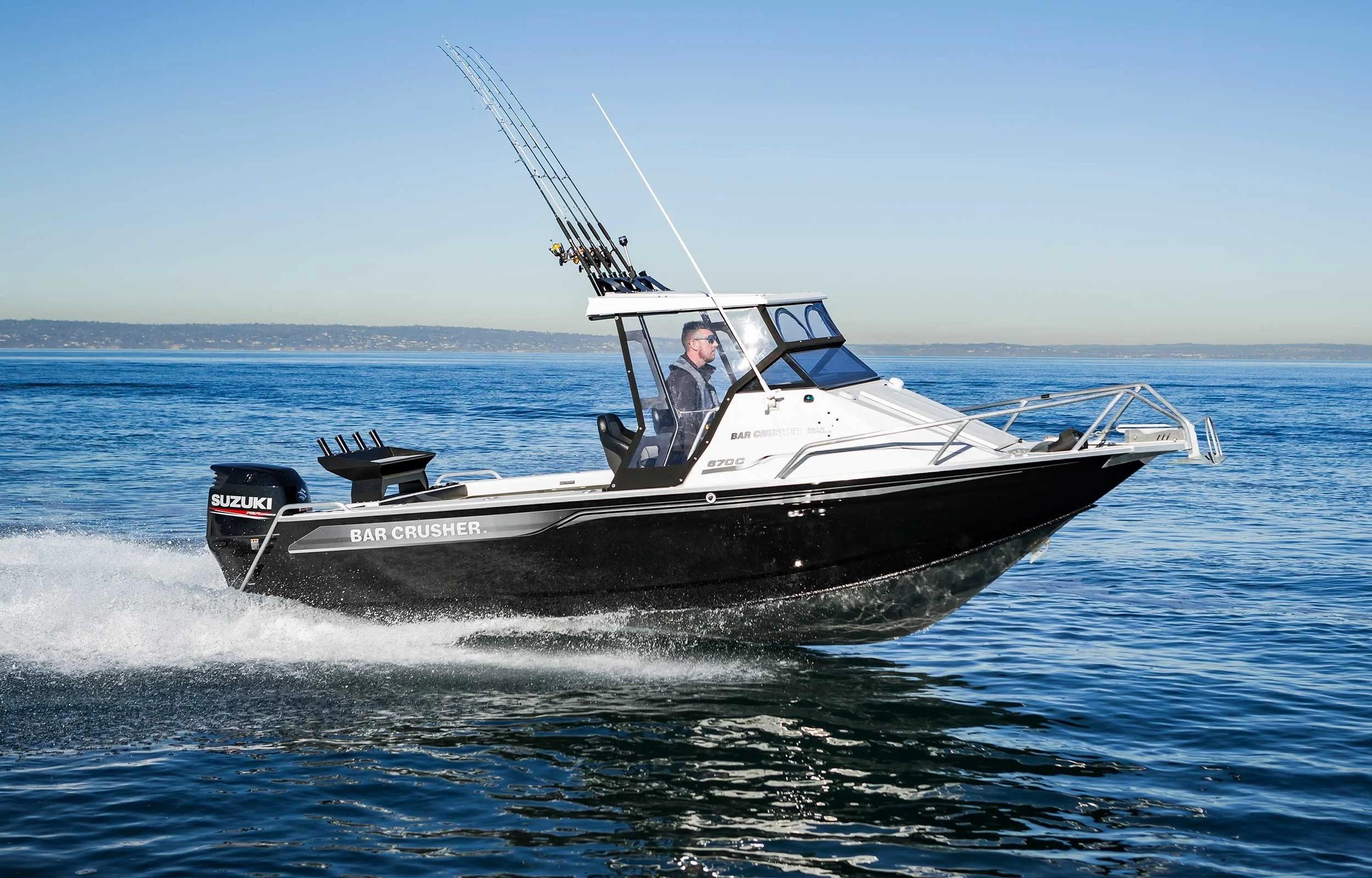

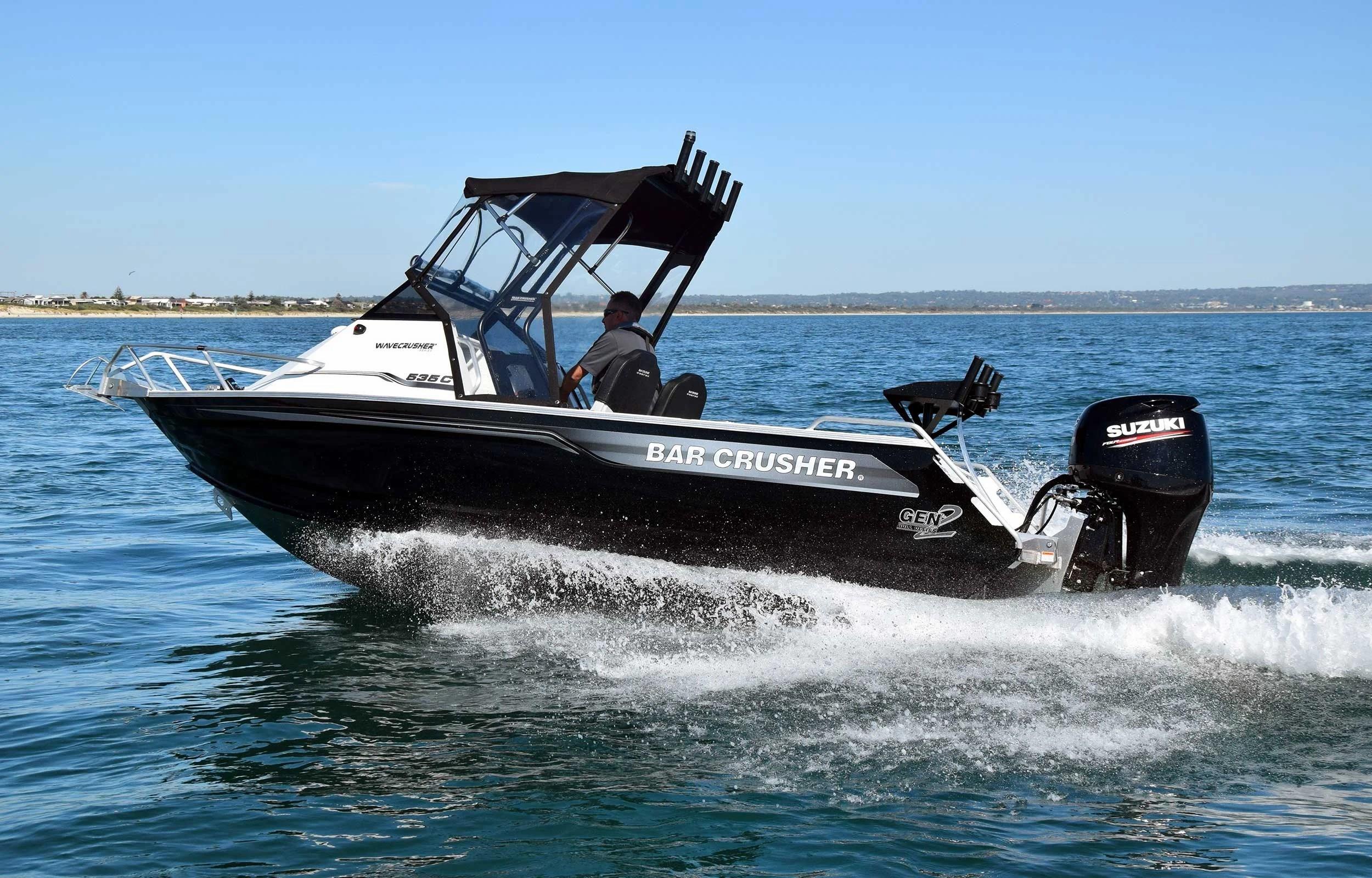

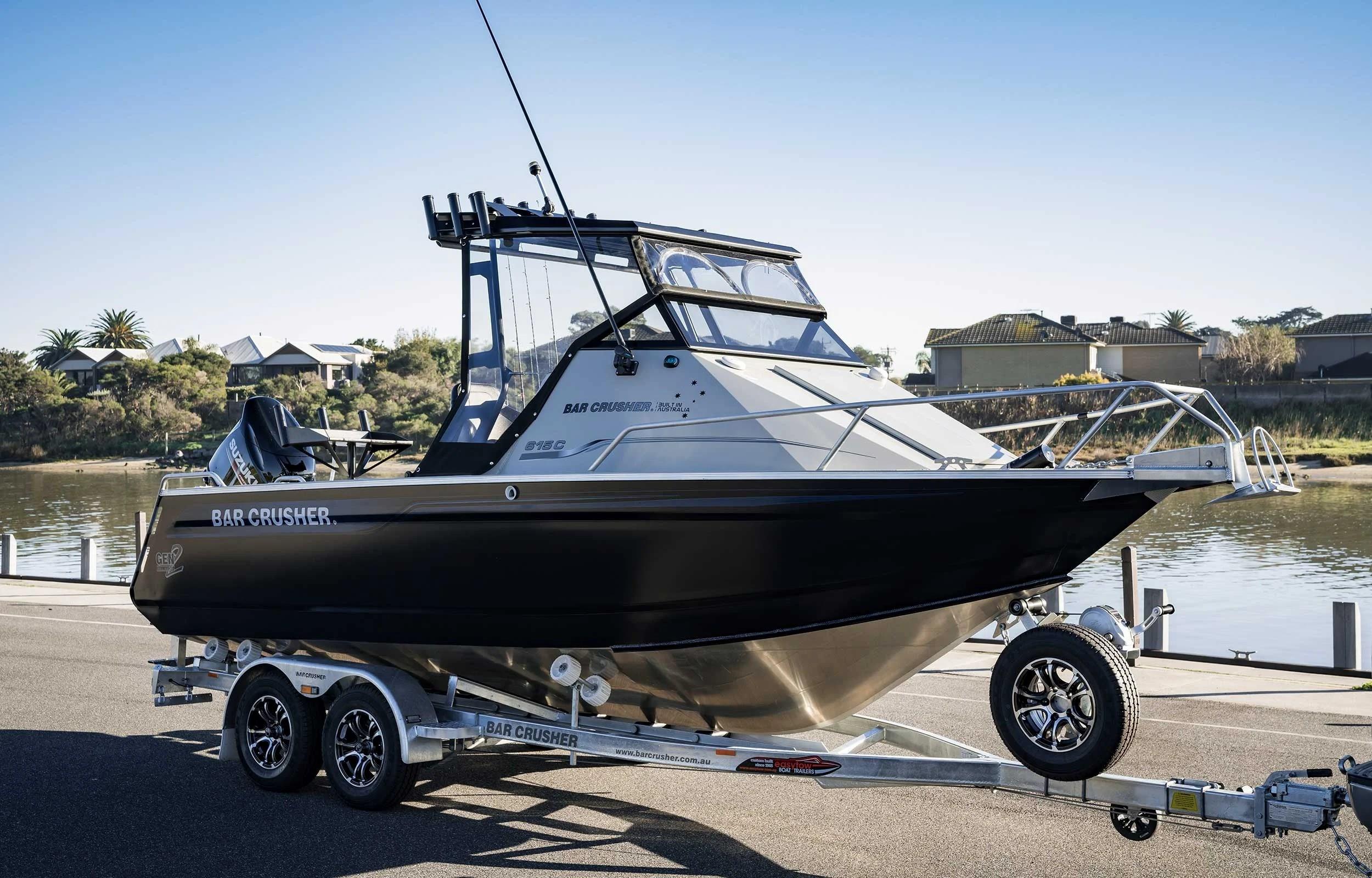

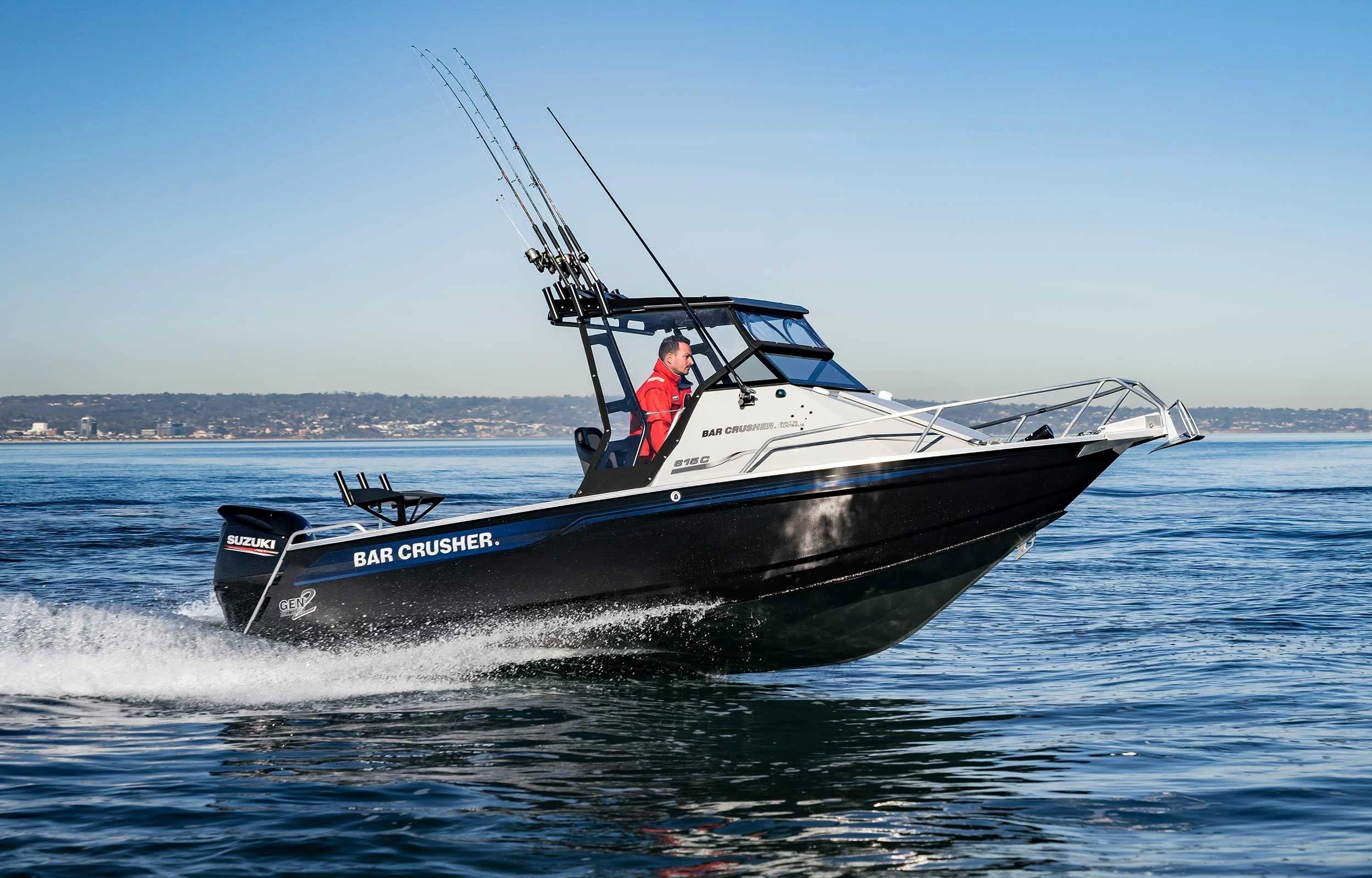

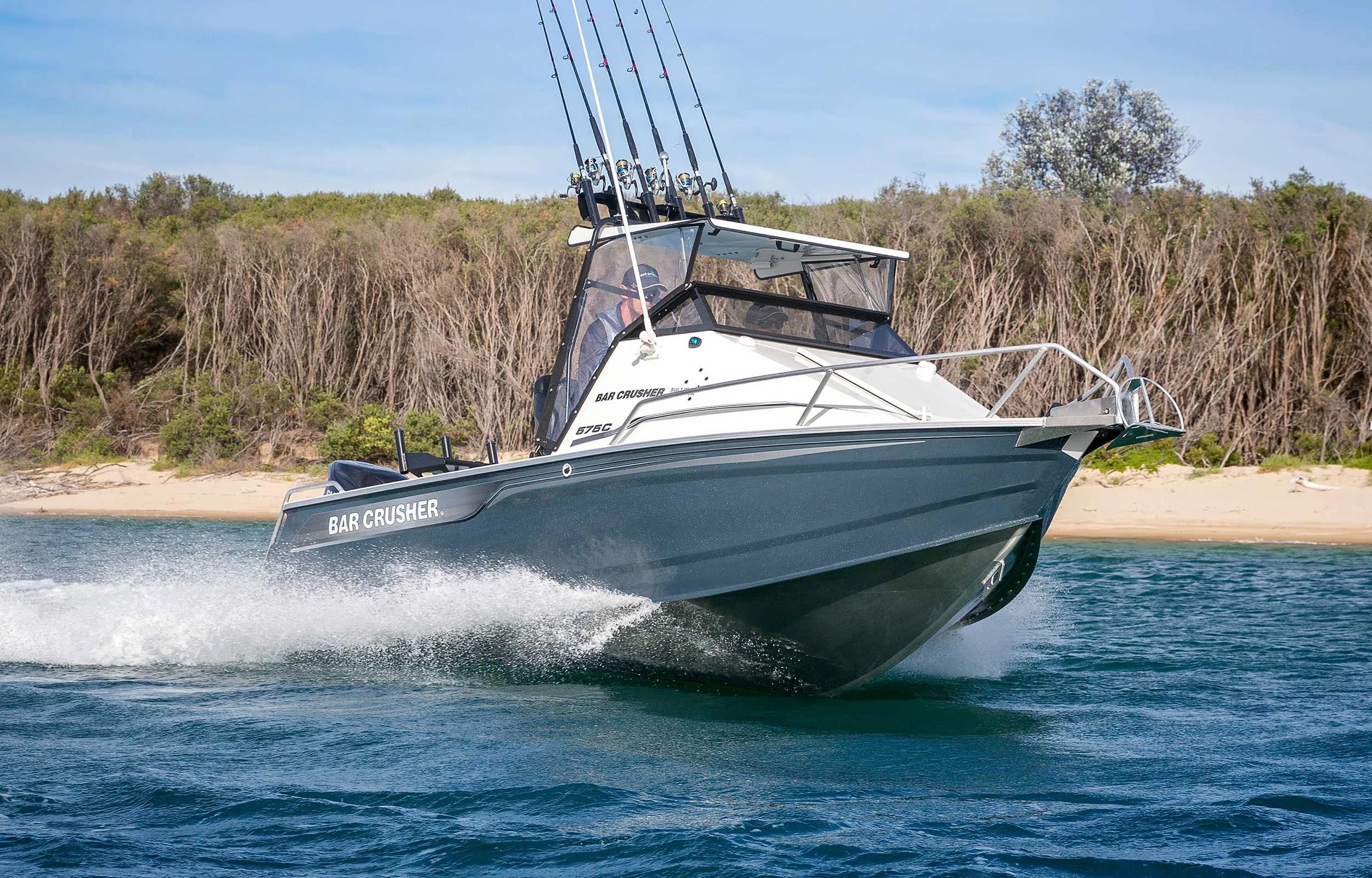

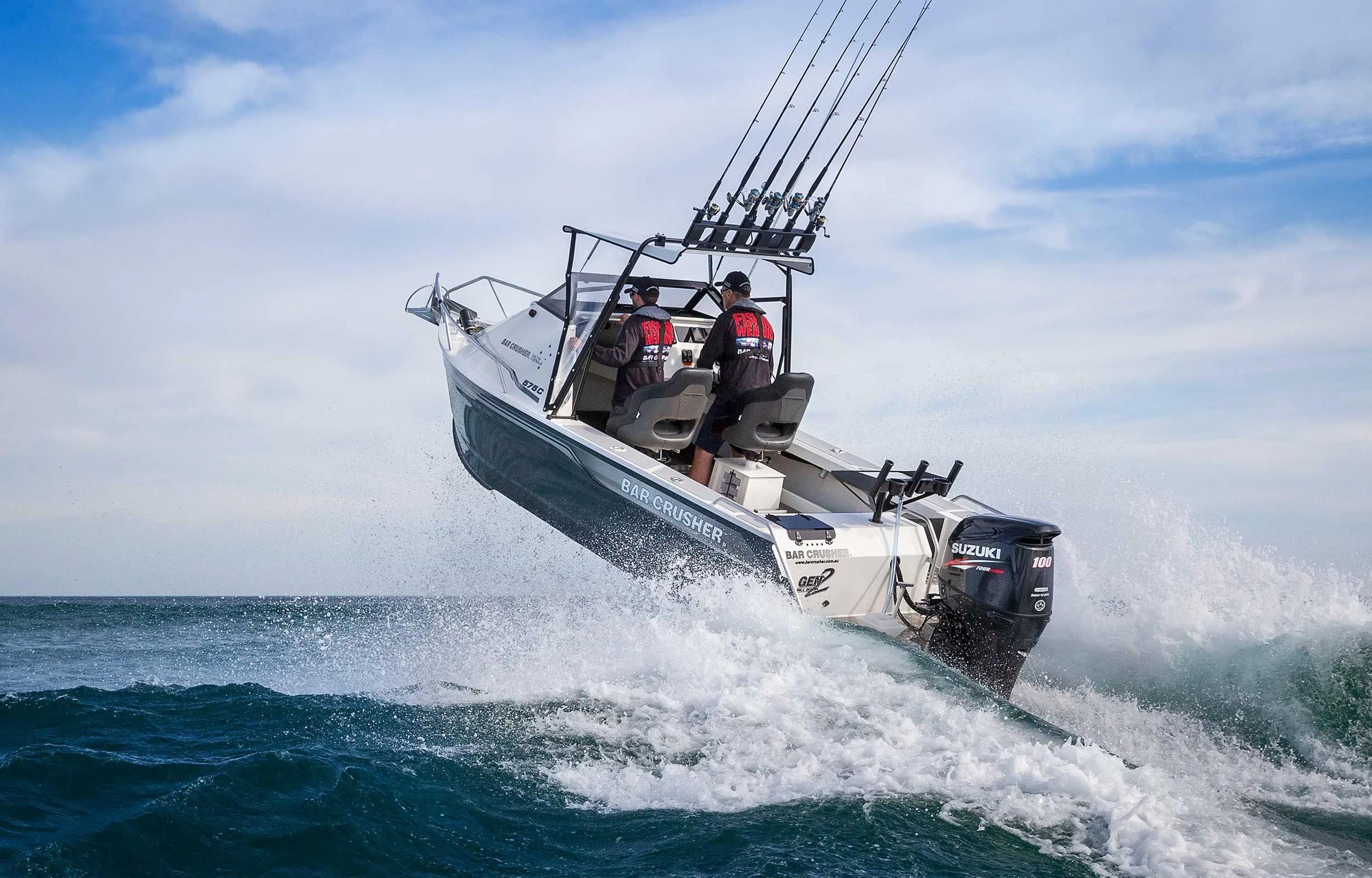

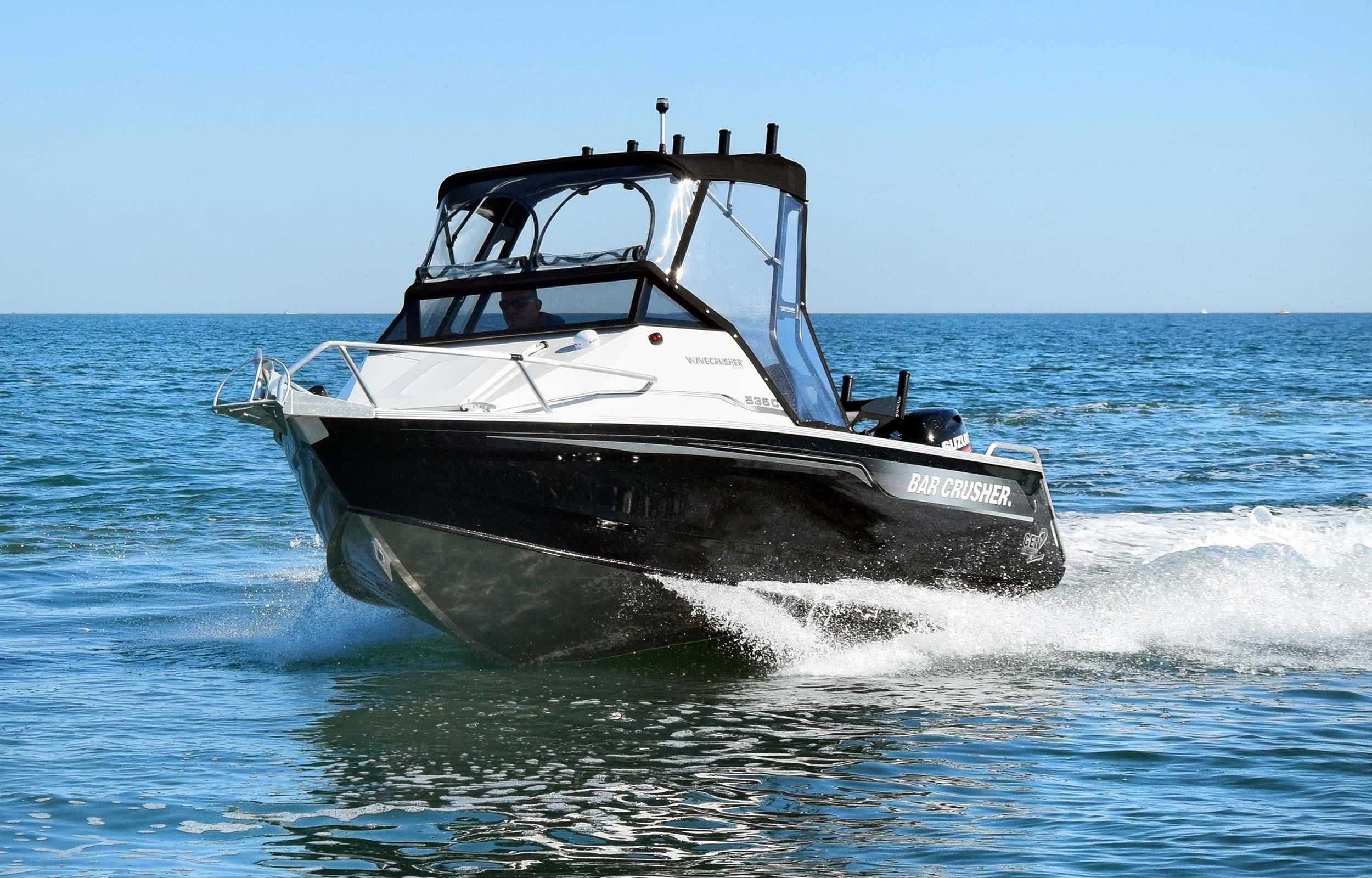

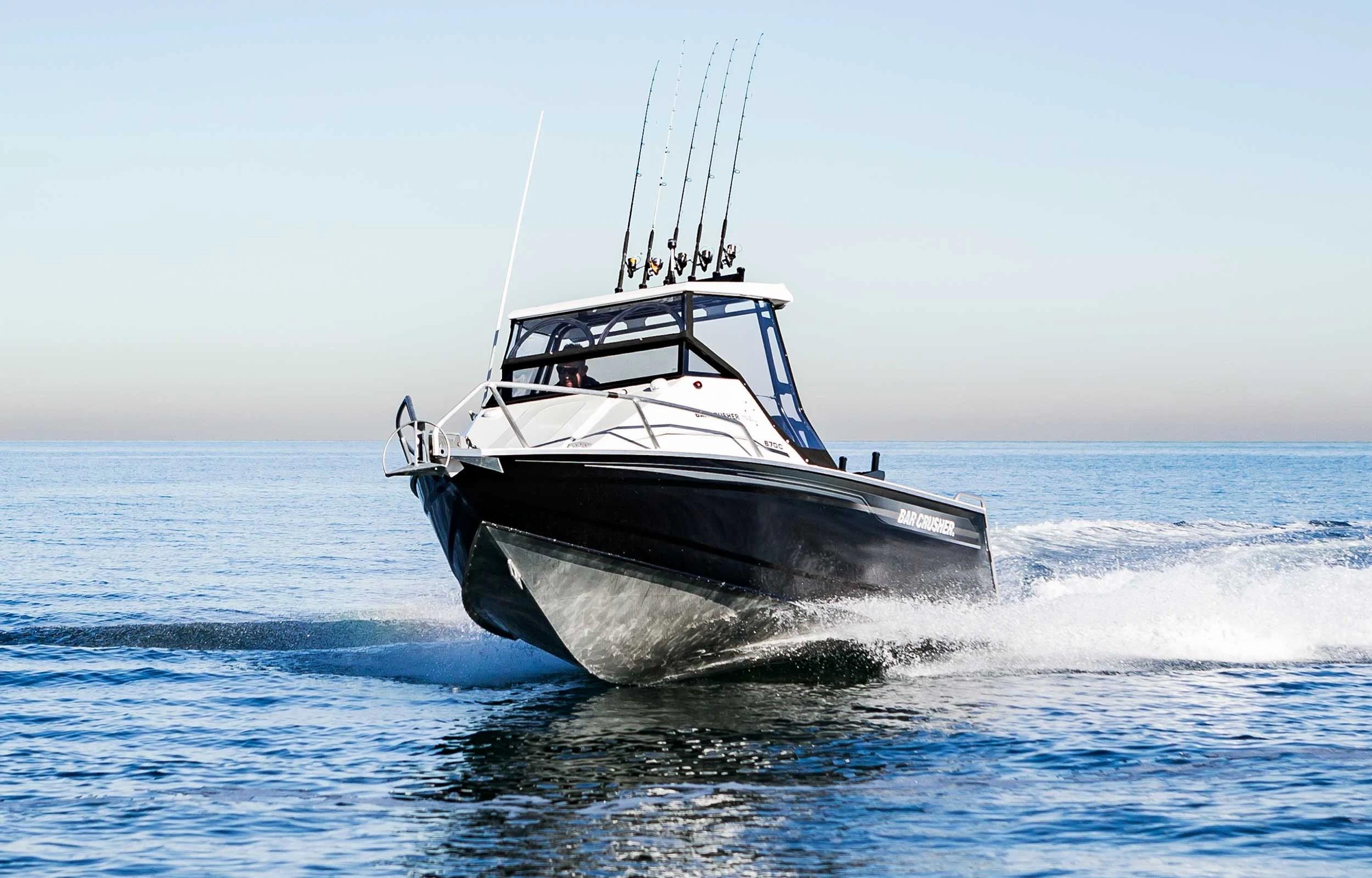

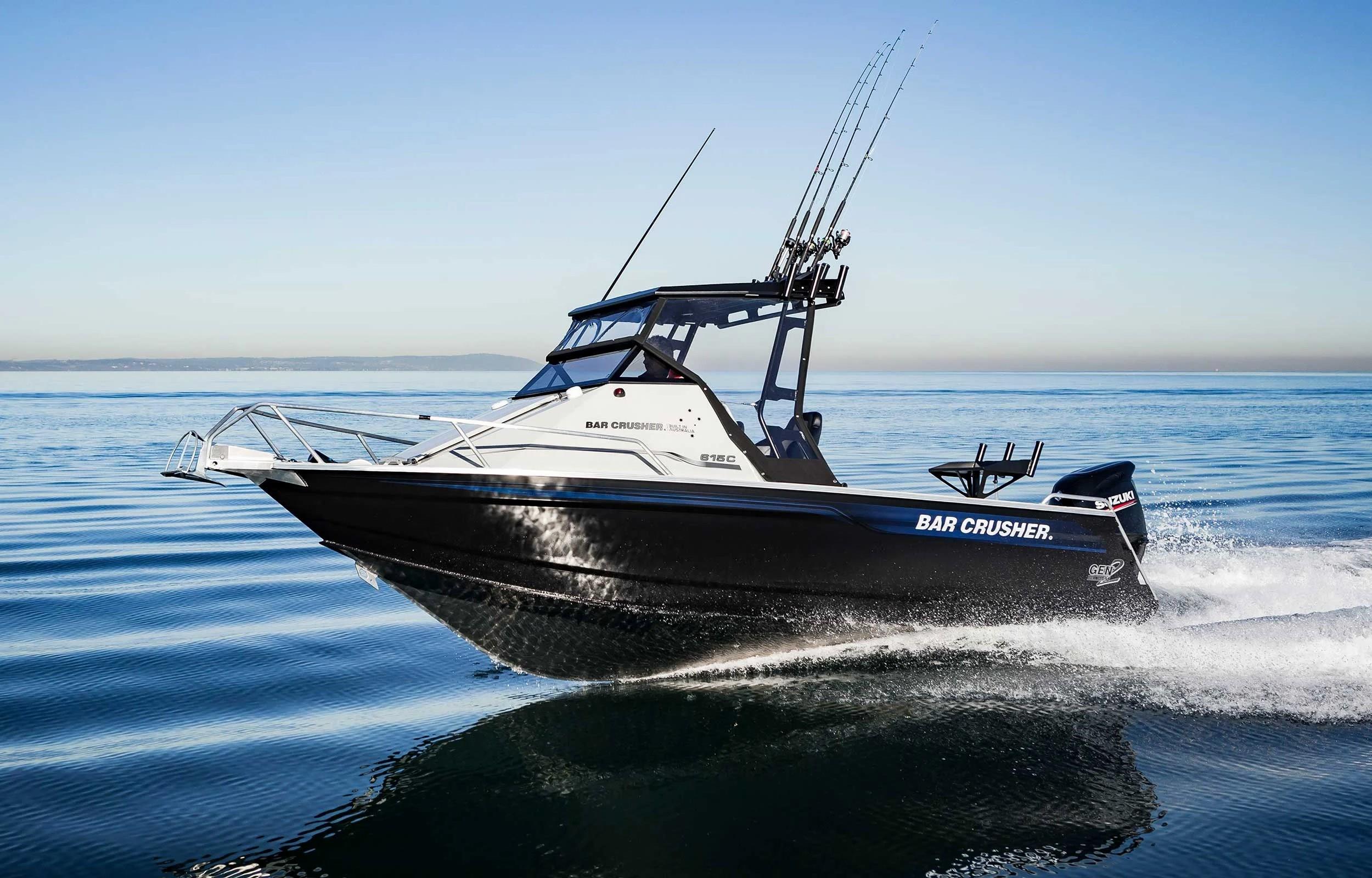

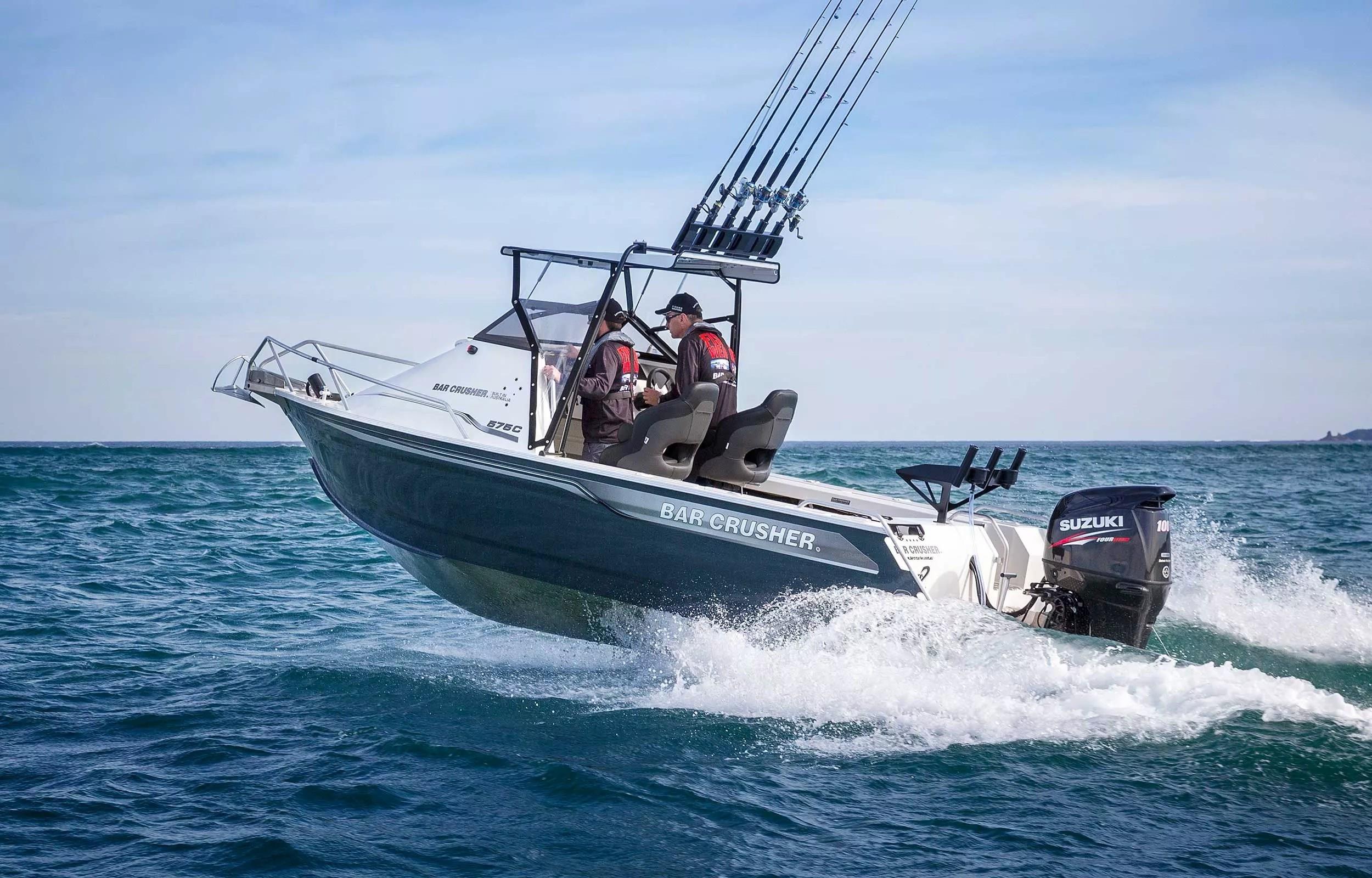

C SERIES image img-nmm

SPECIFICATIONS & FEATURES

Specifications

  535C 575C 615C 670C
Length overall (mm) 5350 5750 6150 6700
Beam (mm) 2150 2150 2250 2350
Internal freeboard (mm) 690 730 780 800
Bottom sides (mm) 4 4 4 5
Top sides (mm) 3 3 4 4
Transom length (in) 25 25 25 25
Fuel capacity (L) 115 160 200 230
Fuel system SafeTank™ SafeTank™ SafeTank™ SafeTank™
Tow weight (kg) – dry weight 1150 1360 1550 1780
Minimum horsepower 60 90 115 150
Maximum horsepower 115 140 150 200
Overall length on trailer (mm) – hitch to prop 6750 7200 7300 8000
Overall width on trailer (mm) 2150 2150 2250 2350
Height on trailer (mm) 2150 3100 3020 2980
Overall height with roof folded (mm) 1920 2200 2200 2150
Maximum persons 5 5 6 6

Weights and measurements are approximate due to variations in packaging and fit-out. All weights and measurements must be confirmed with your dealer prior to ordering.
