AQUAMASTER

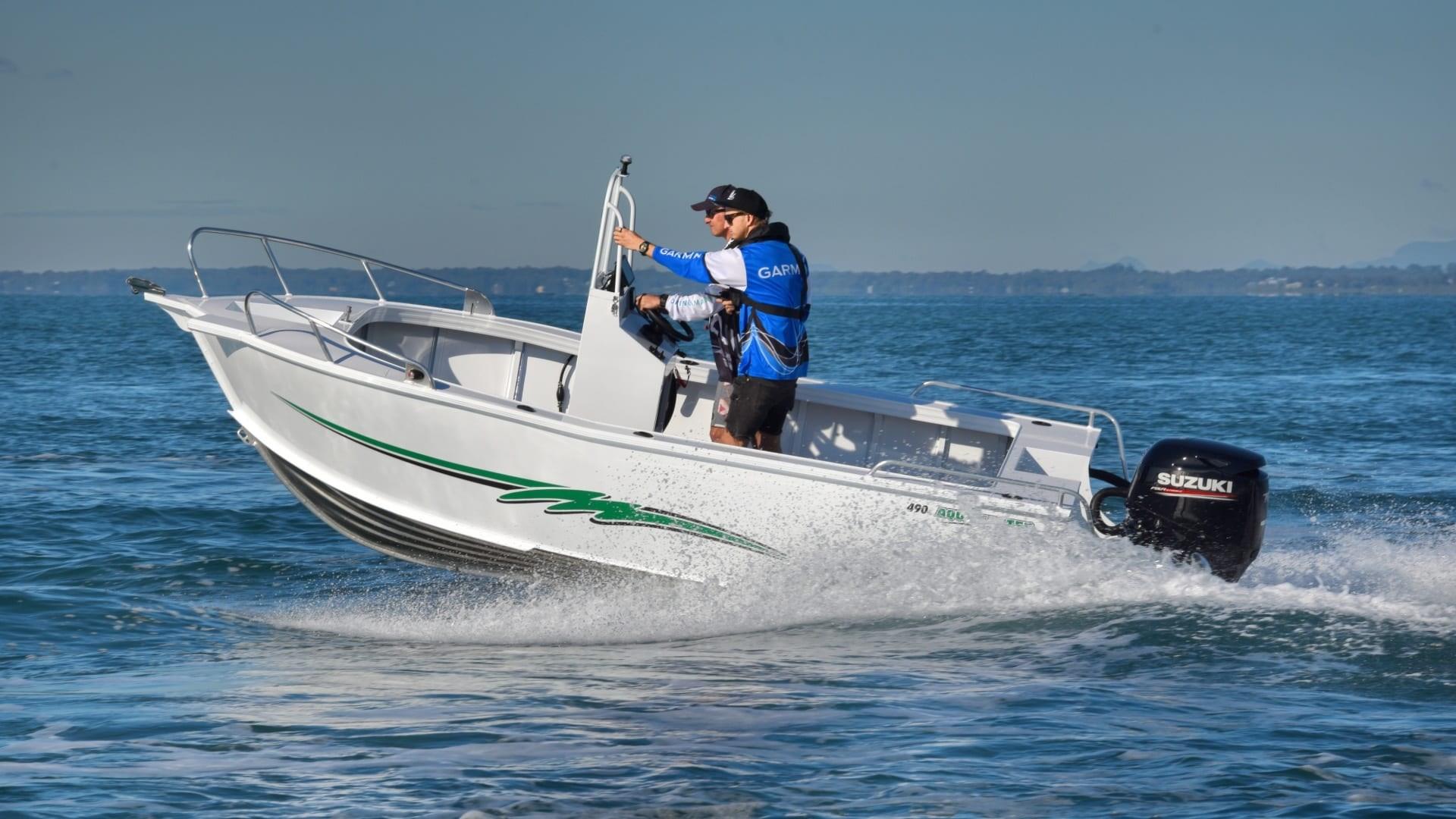

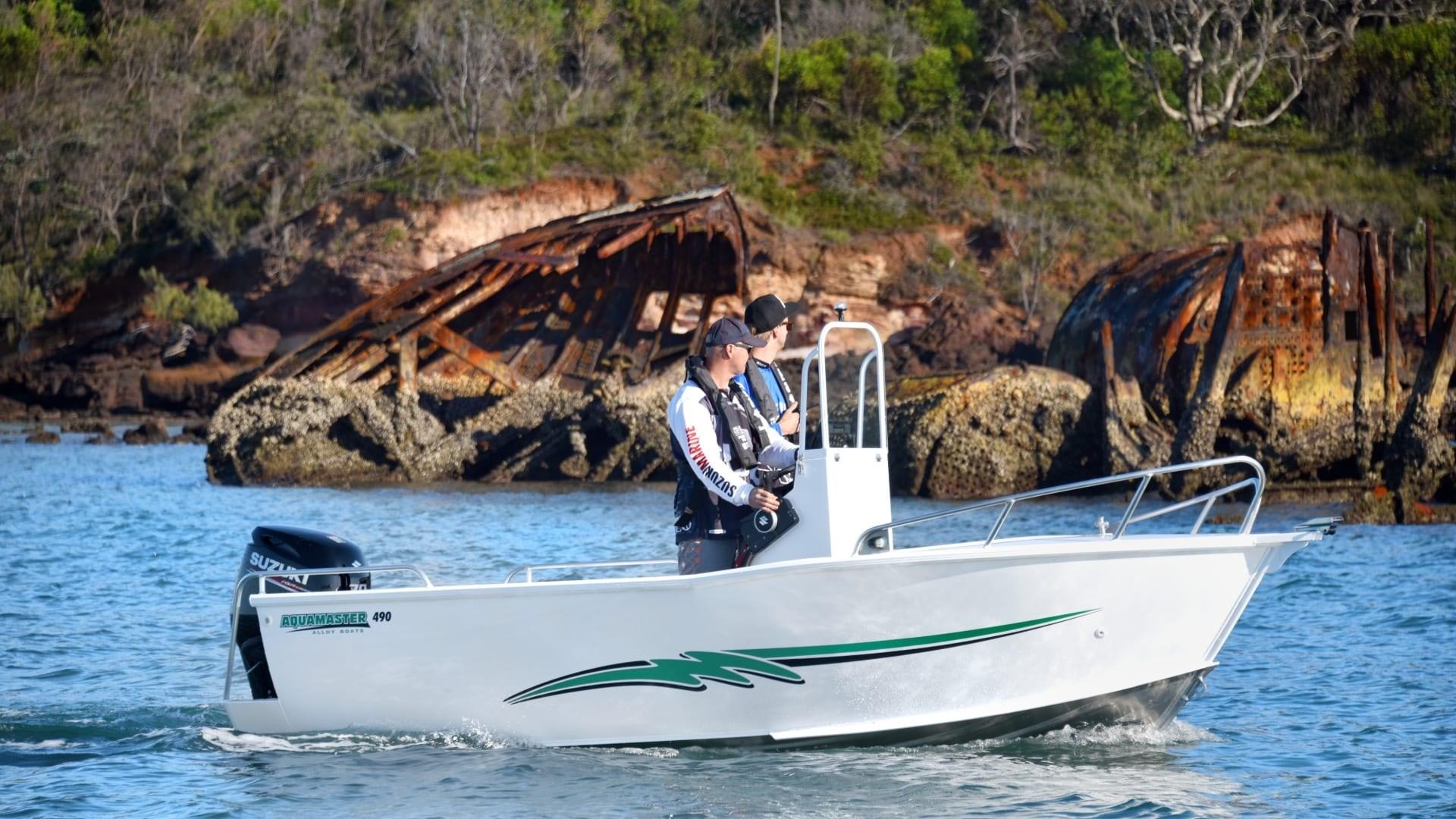

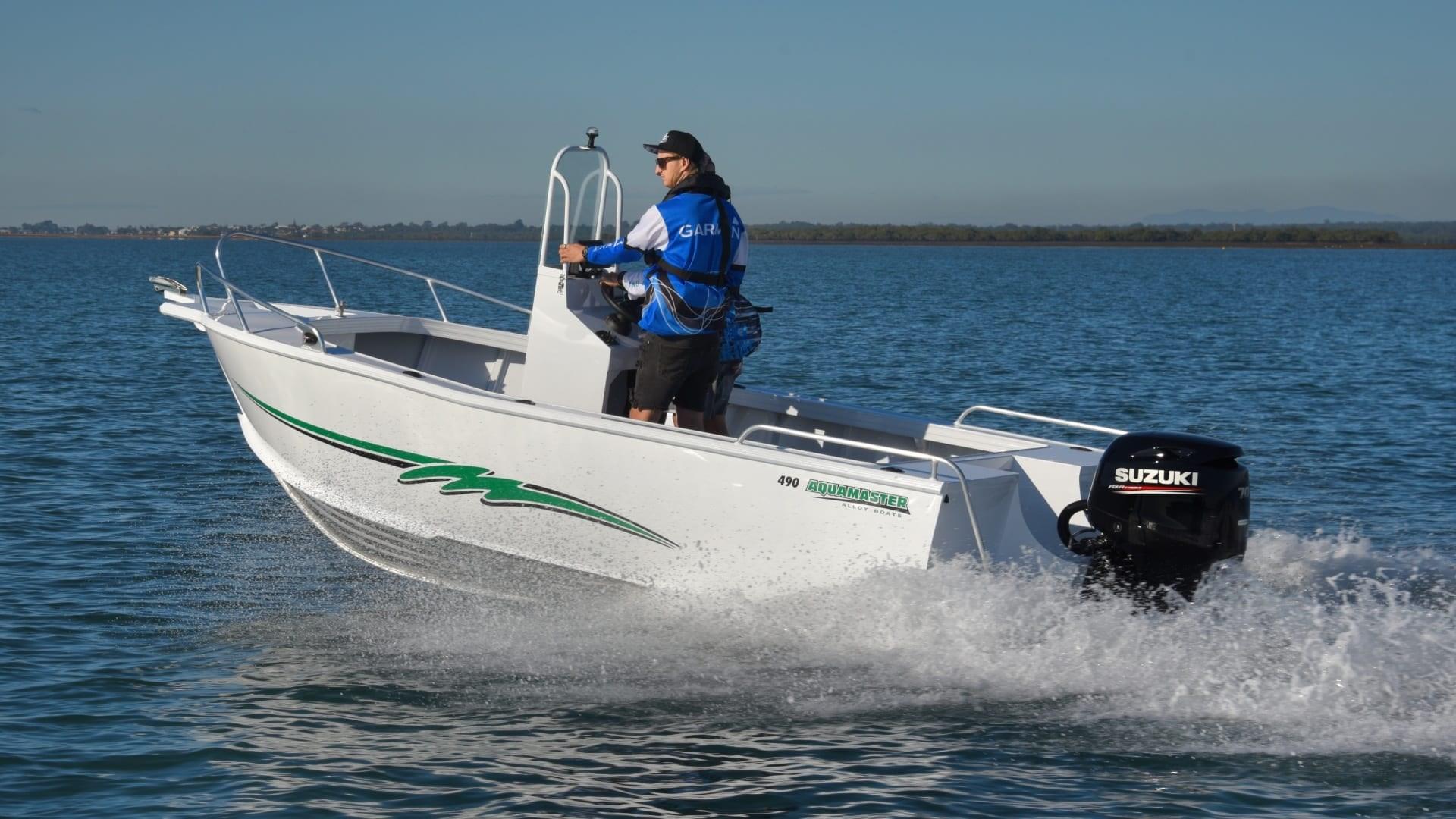

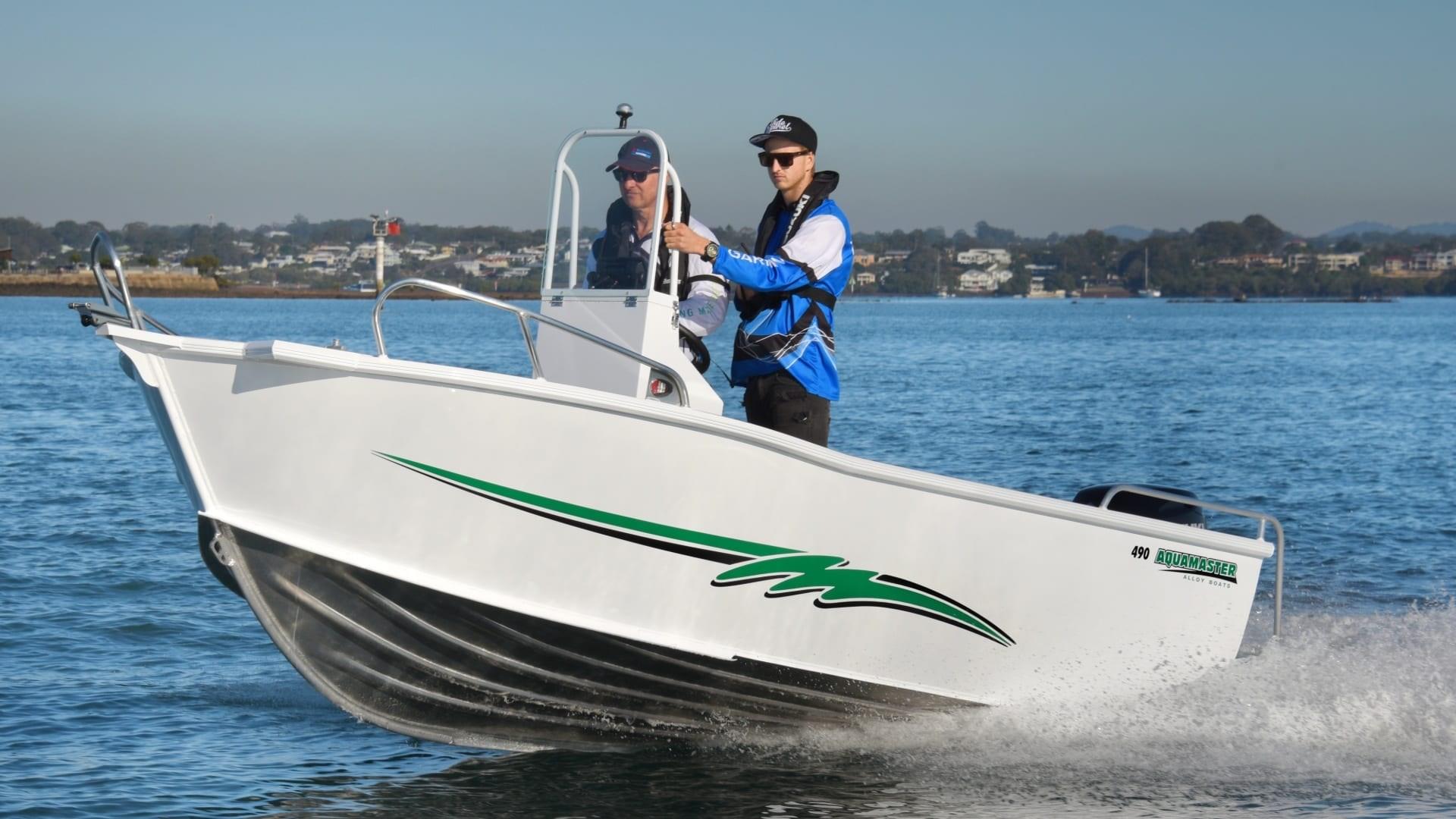

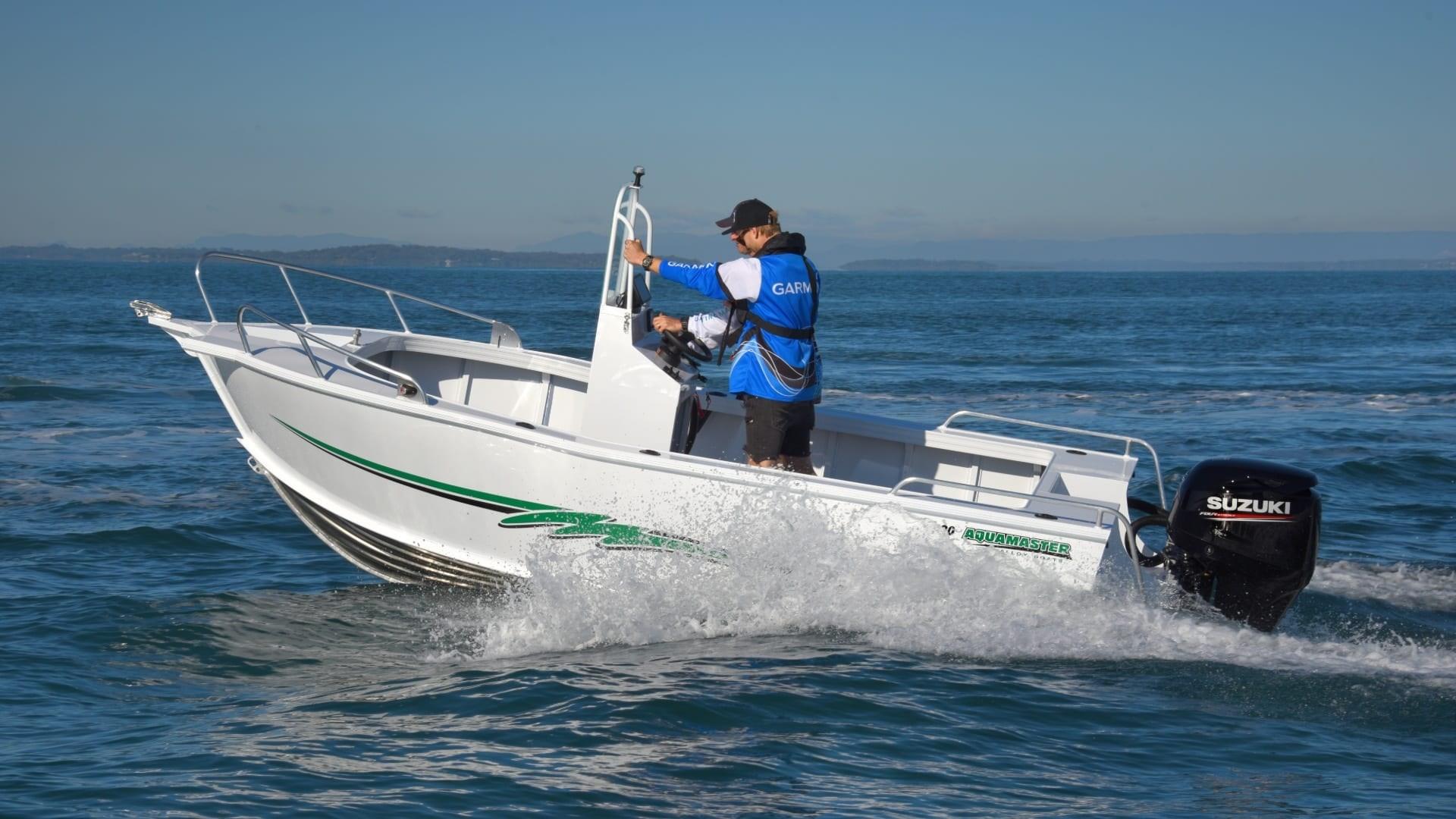

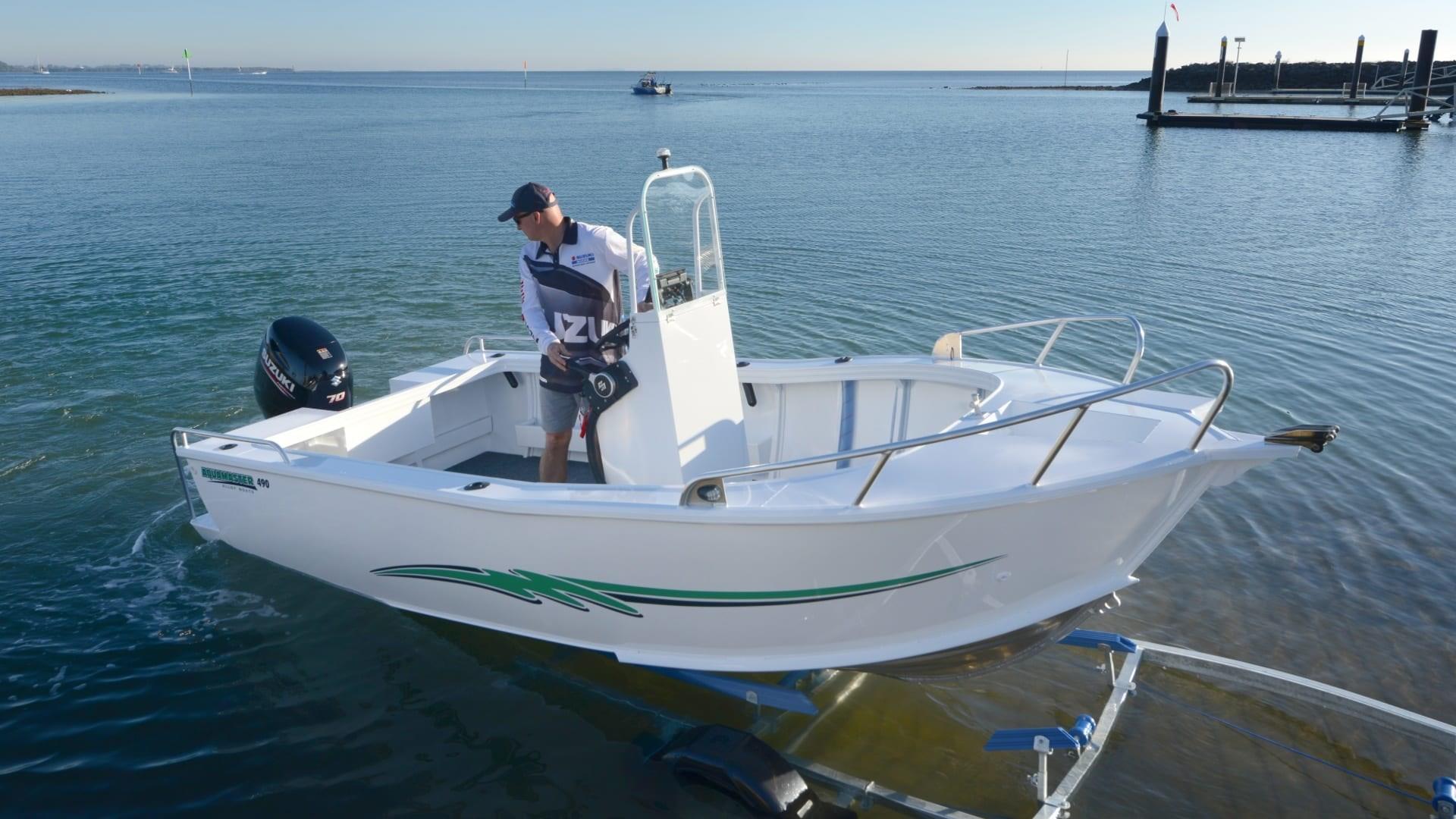

CENTER CONSOLE

CENTER CONSOLE image img-nmm

SPECIFICATIONS & FEATURES

Specifications

Specifications 4.20 4.40 4.55 4.60 4.90 5.10 5.30 5.50 6.00
Hull Length (m) 4.20 4.40 4.55 4.60 4.90 5.10 5.30 5.50 6.00
Beam/Width (m) 1.95 2.15 2.15 2.20 2.20 2.30 2.30 2.40 2.45
Hull Type Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Hull Weight - dry (kg) Approx. 330 360 390 430 495 480 540 570 610
Depth (m) 1.00 1.00 1.00 1.05 1.05 1.08 1.10 1.15 1.40
Fuel Capacity (L) 25L 25L 77L 25L 77L 112L 112L 112L 112L
Minimum HP 30 40 40 50 50 60 70 80 100
Maximum HP 50 60 60 70 90 100 140 150 150
Bottom & Topsides (mm) 3 3 3 3 3 3 3 3 3
Transom Height L/S L/S L/S L/S L/S L/S L/S L/S L/S
Passenger Capacity 4 4 5 5 5 5 5 6 6



Specifications 4.20 4.40 4.55 4.60 4.90 5.10 5.30 5.50 6.00
Unpainted Hull ✔ ✔ Option ✔ Option ✔ Option Option Option
White Paint with Graphics Option Option ✔ Option ✔ Option ✔ ✔ ✔
Full Length Carpeted Floor ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

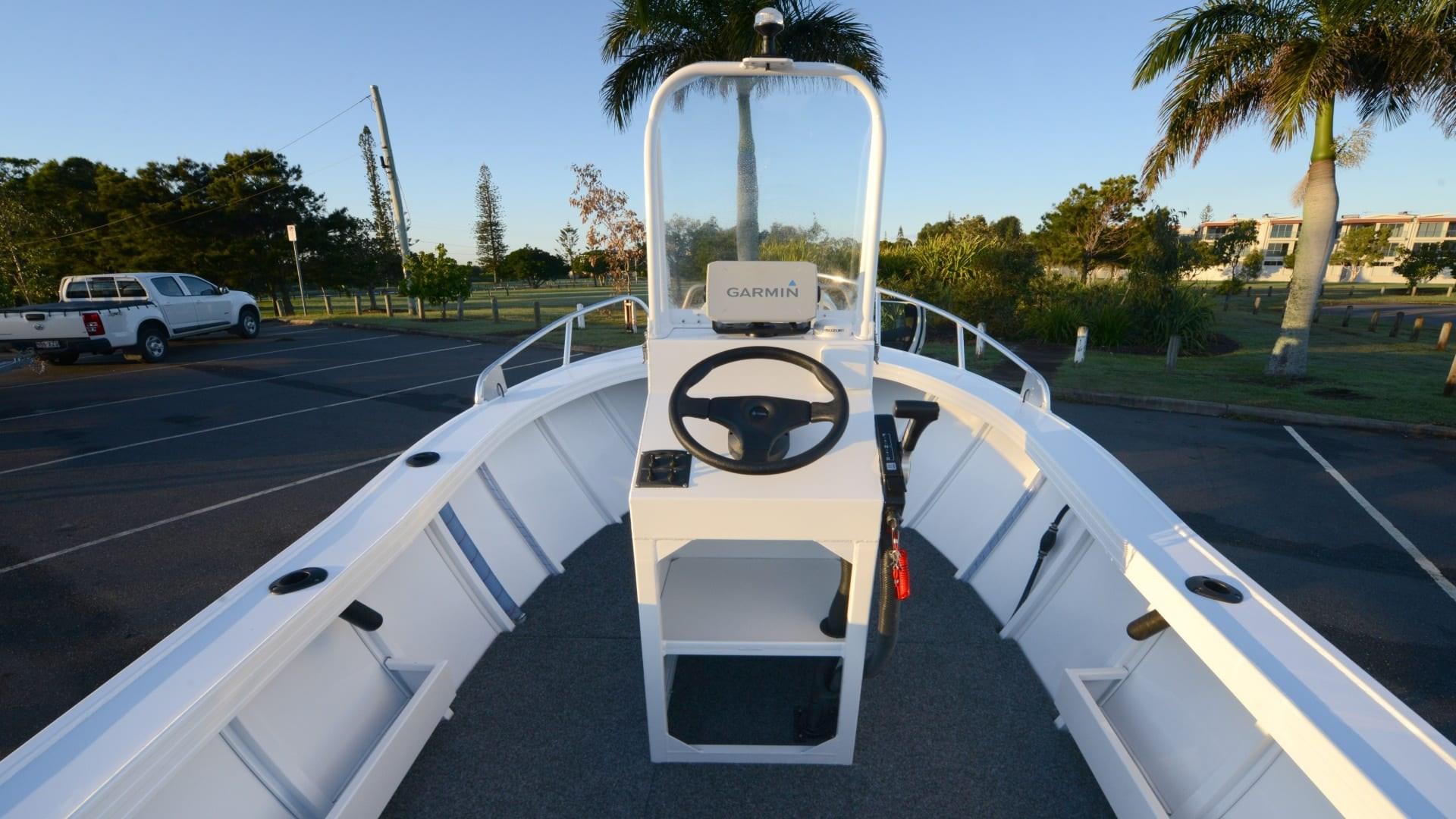

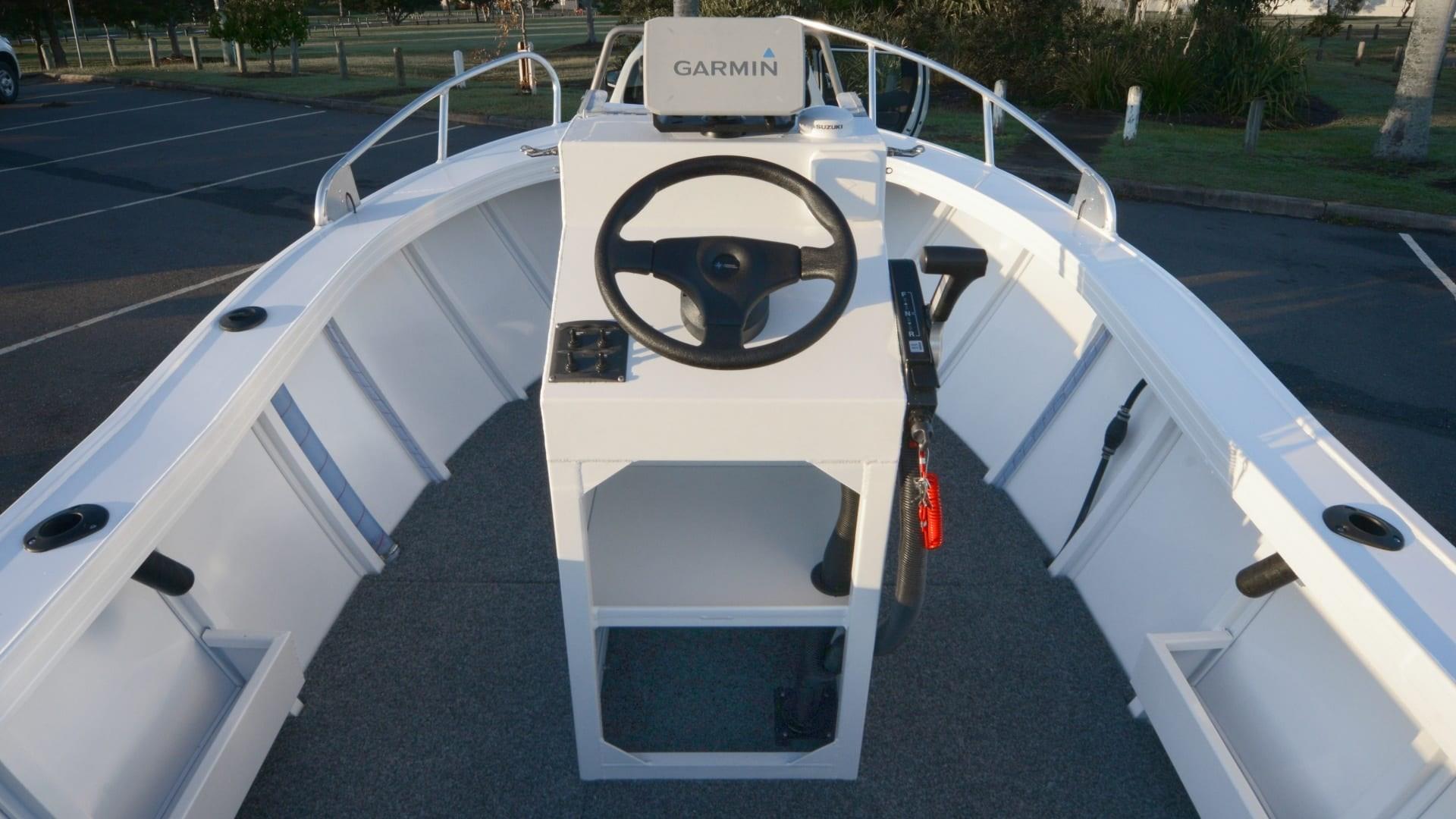

SIngle Console with Folding Windscreen ✔ ✔ ✔ ✔ ✔ N/A N/A N/A N/A
Double Console with Folding Windscreen N/A N/A N/A N/A Option ✔ ✔ ✔ ✔
Mechanical Steering ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Under Floor Fuel Tank N/A Option ✔ Option ✔ ✔ ✔ ✔ ✔

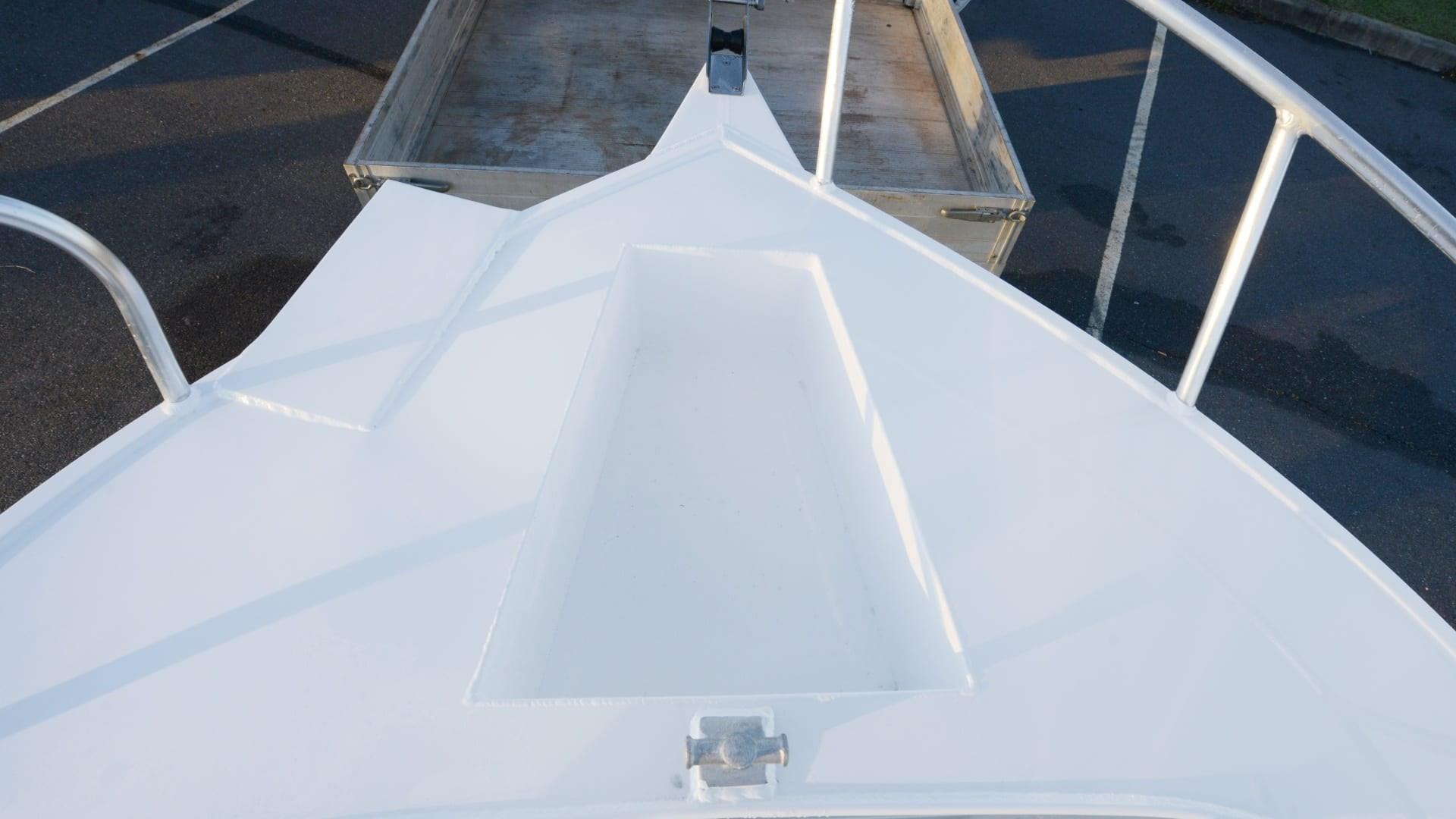

Anchor Well ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Side Decks ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

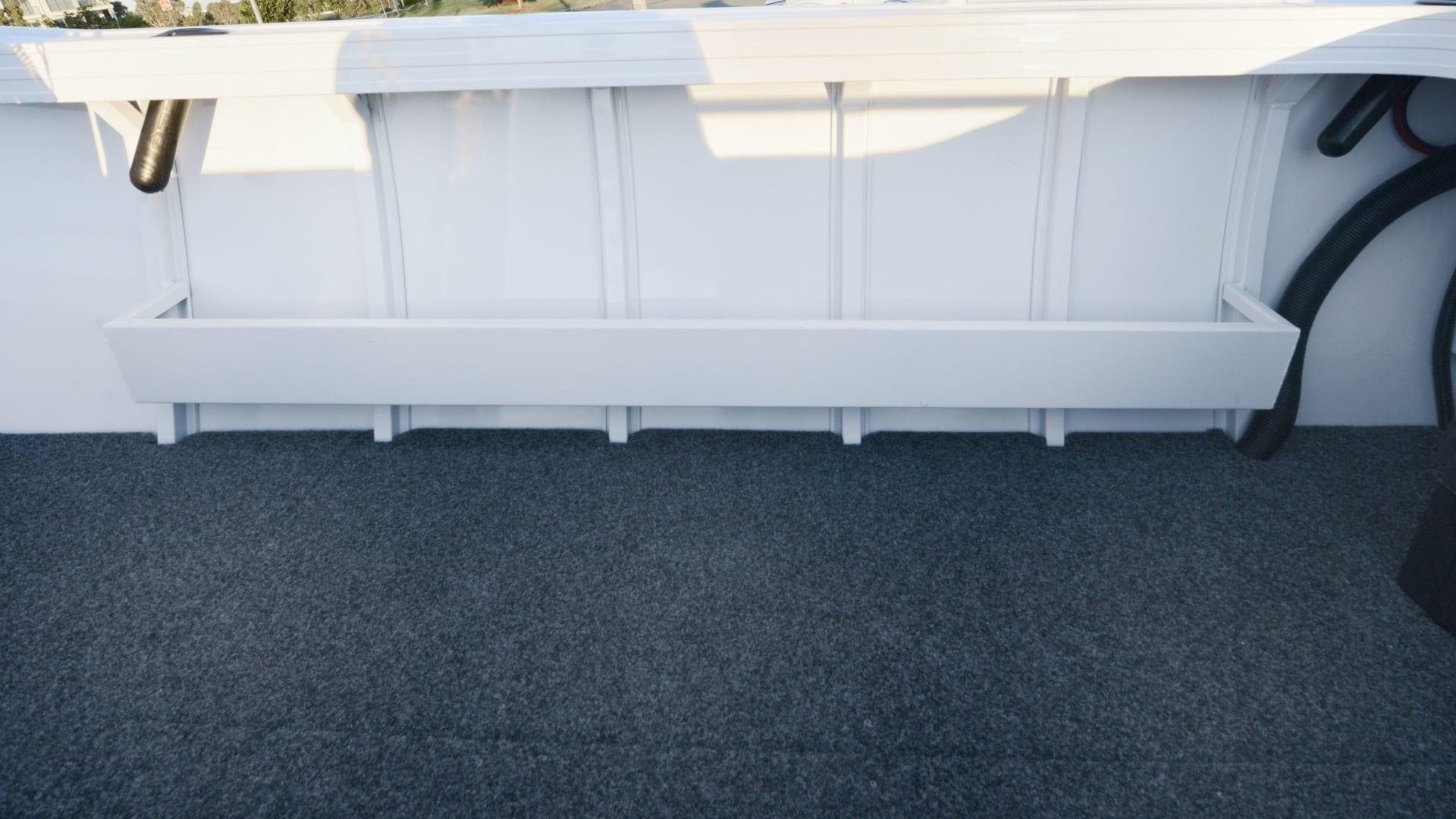

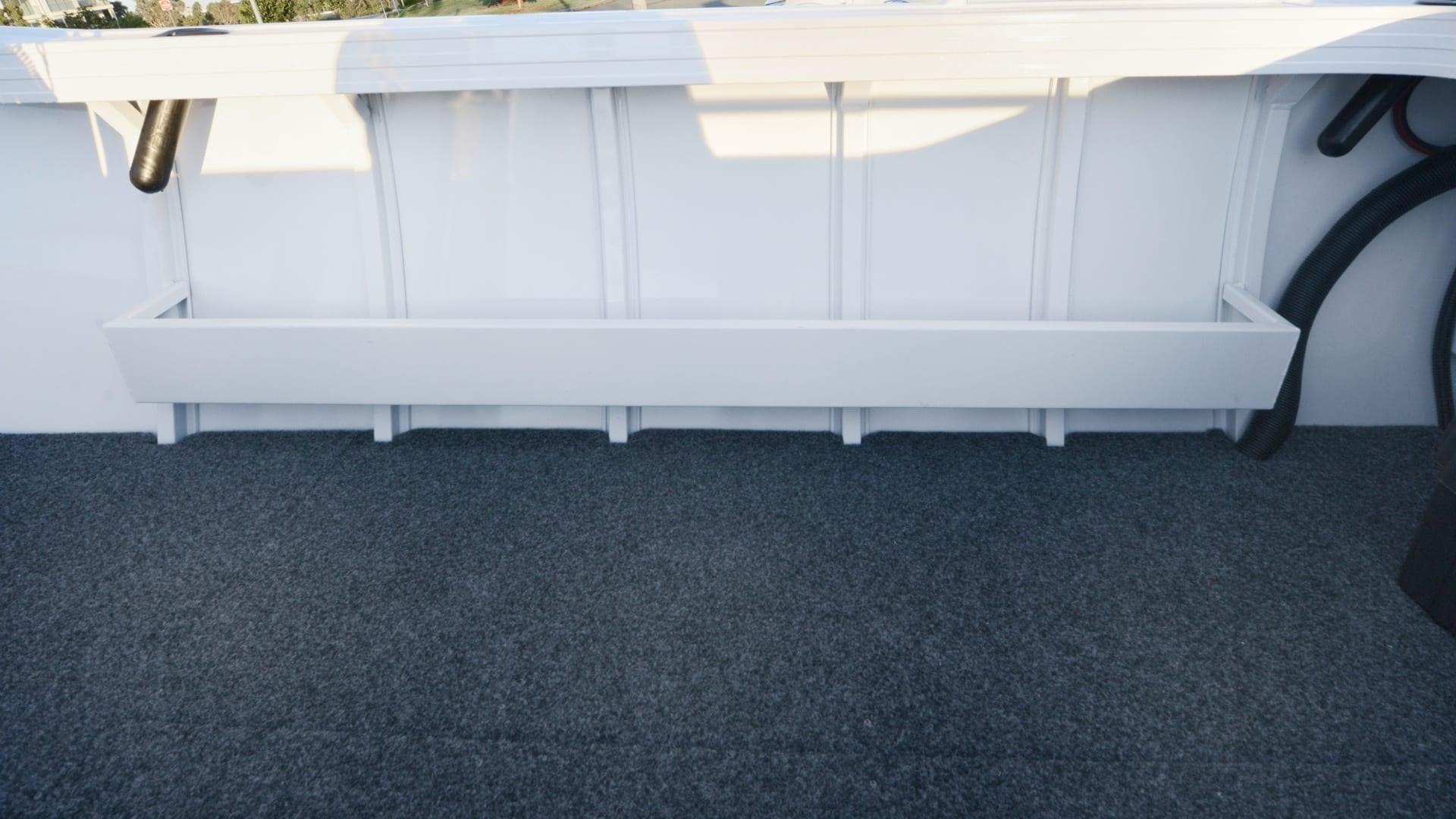

Side Pockets ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Bow Rail (Split) ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Side Rails ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Rear Boarding Step ✔ ✔ Pod ✔ Pod ✔ Pod Pod Pod
Bow Sprit & Roller ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Navigation Lights ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Bilge Pump ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Rod Holders 4 4 4 4 4 4 4 4 4
Island Type Motor Well ✔ ✔ Pod ✔ Pod ✔ Pod Pod Pod
