BAR CRUSHER

HT SERIES

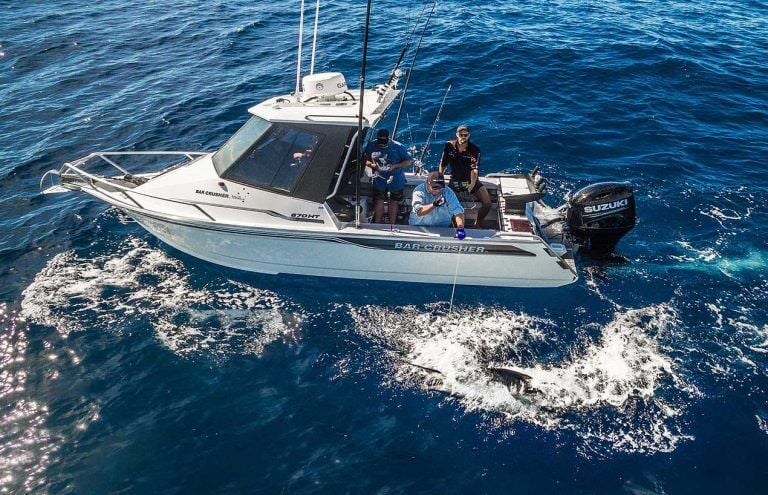

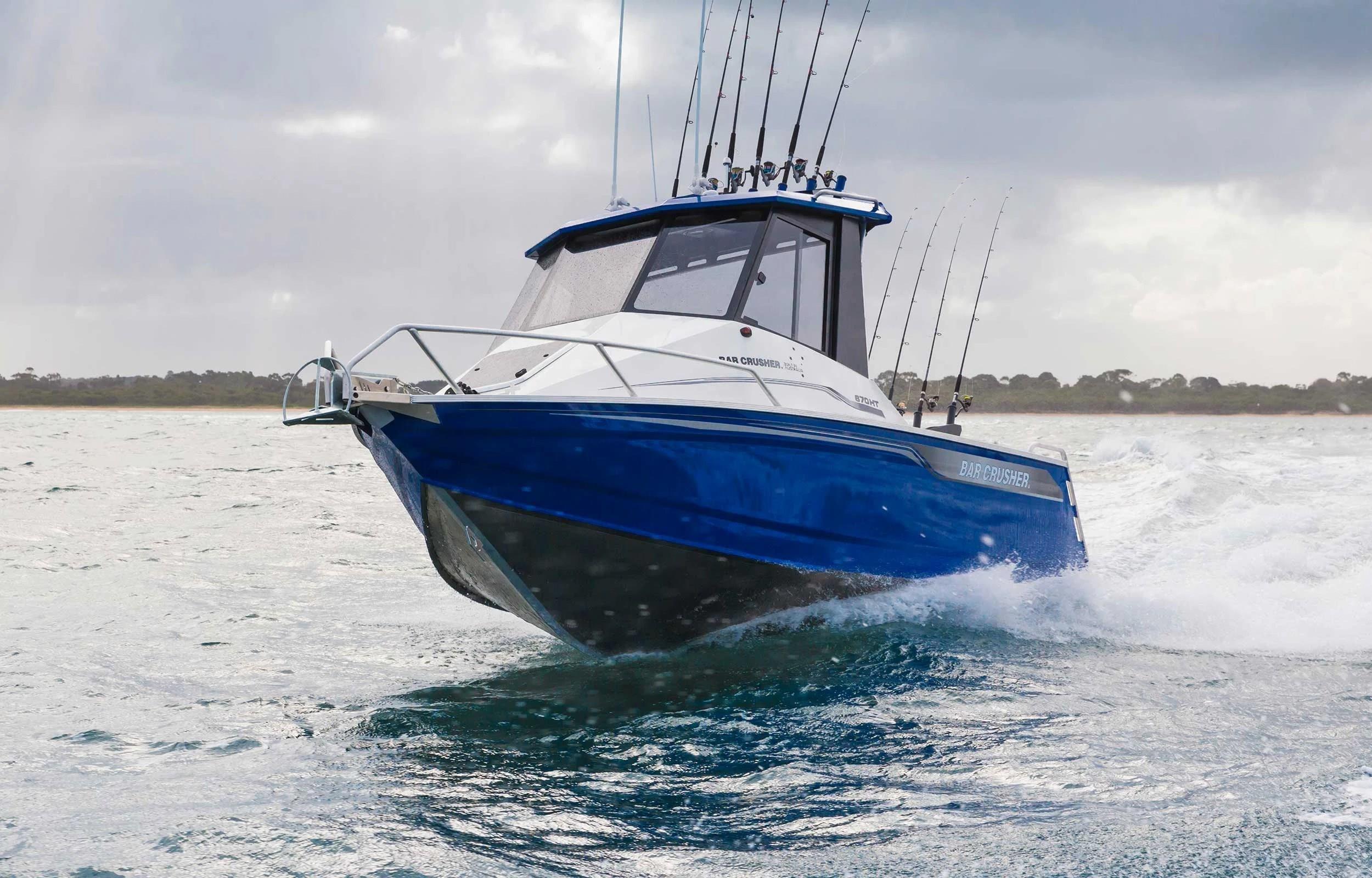

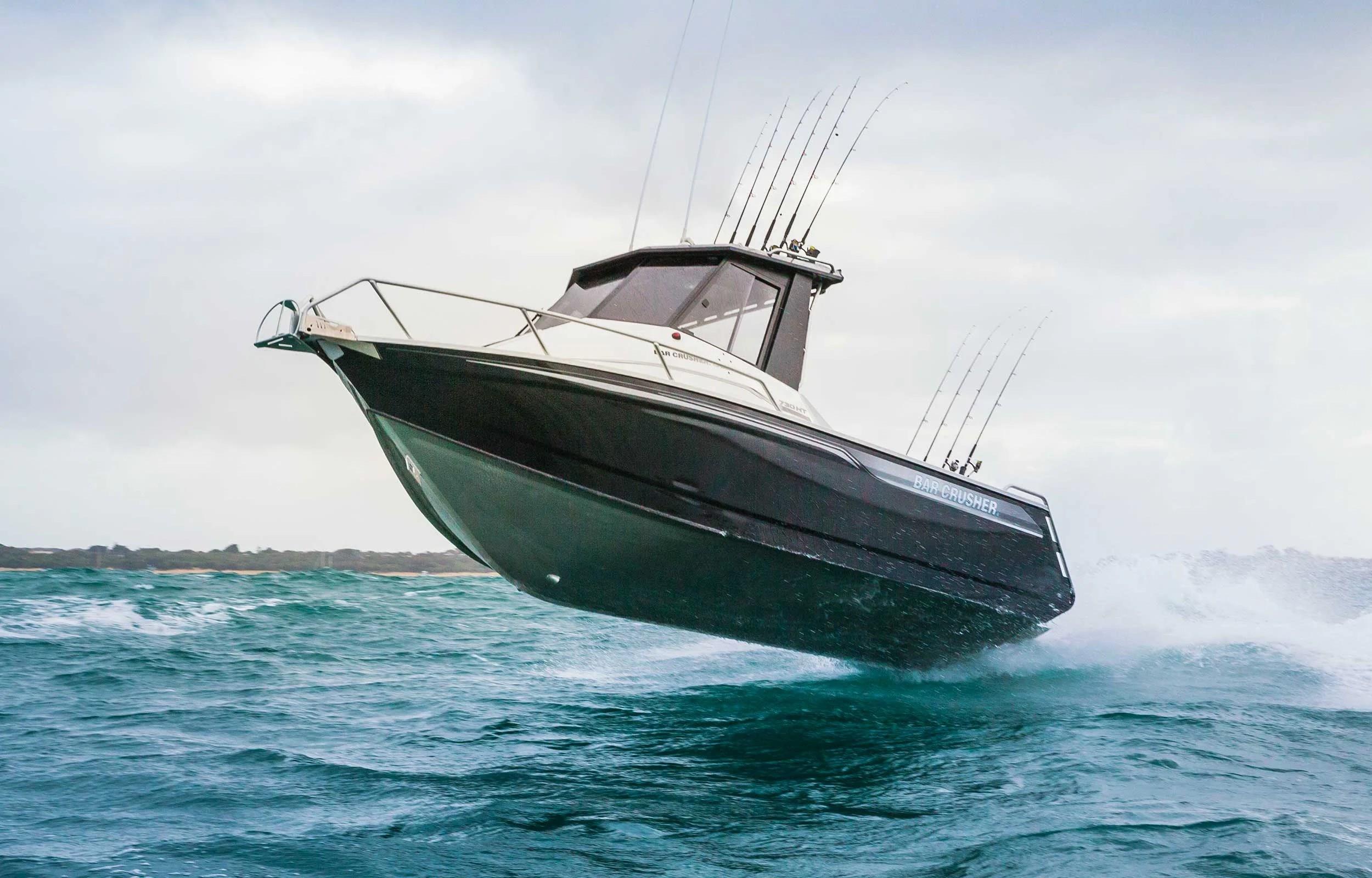

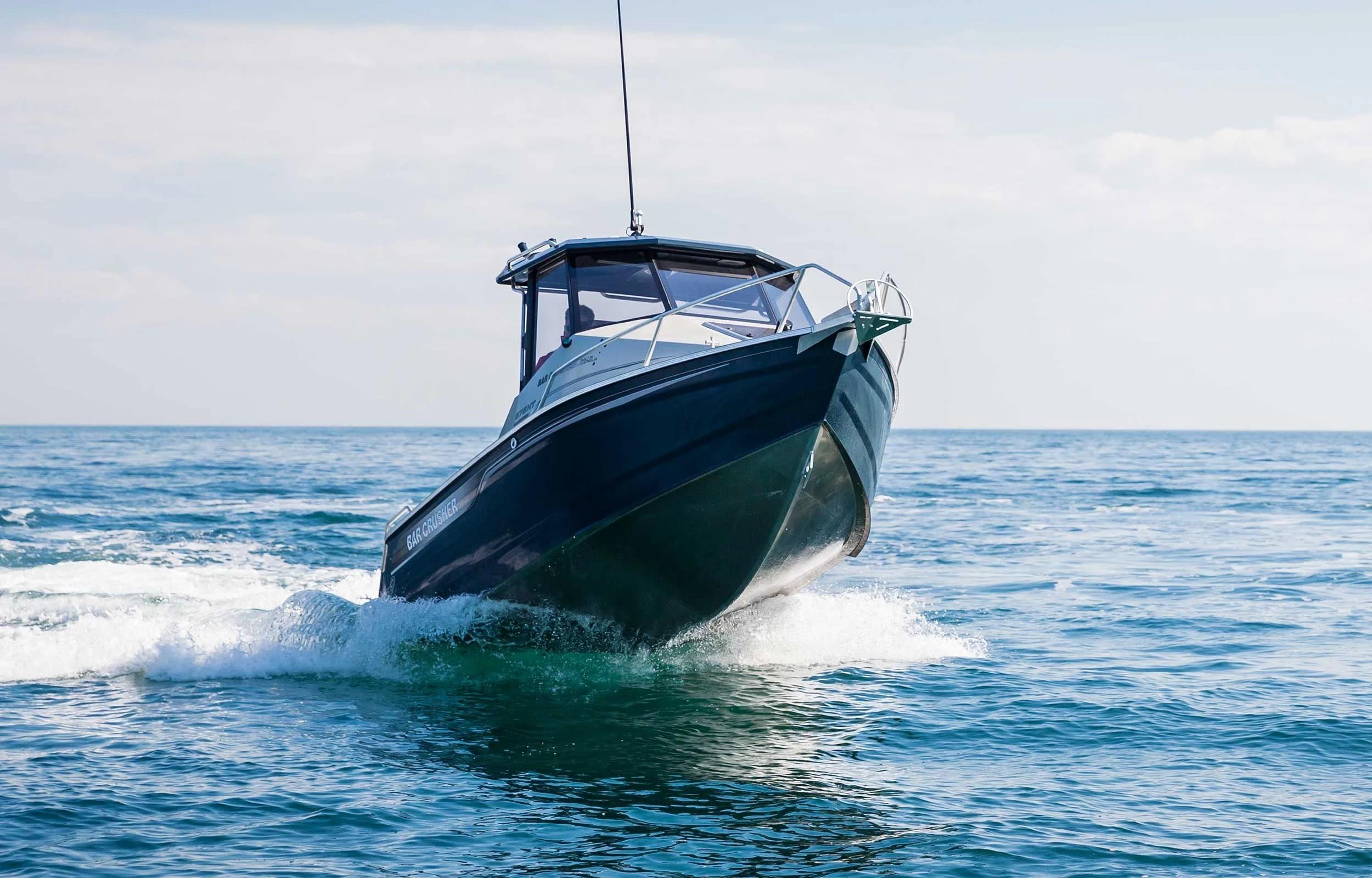

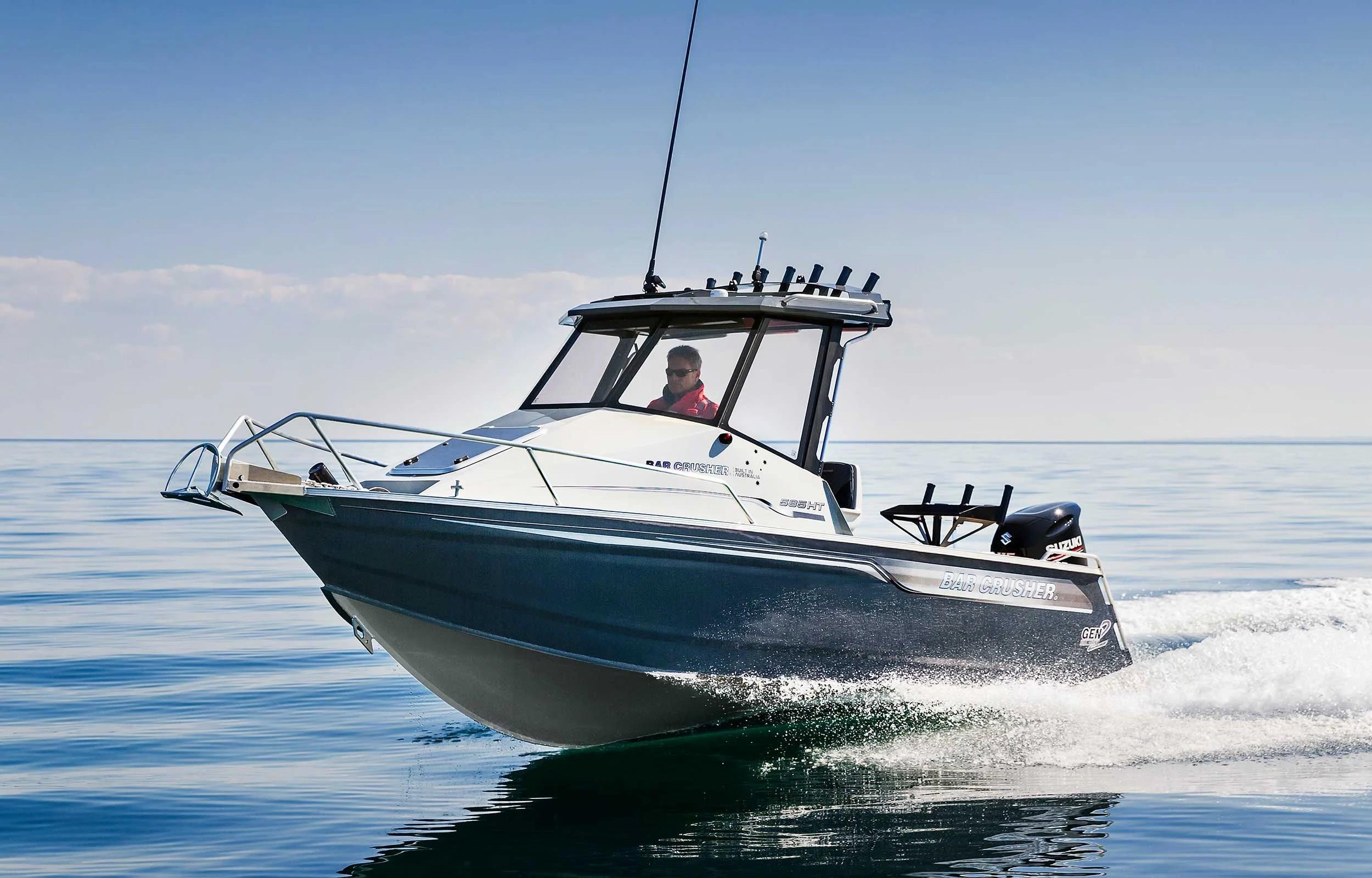

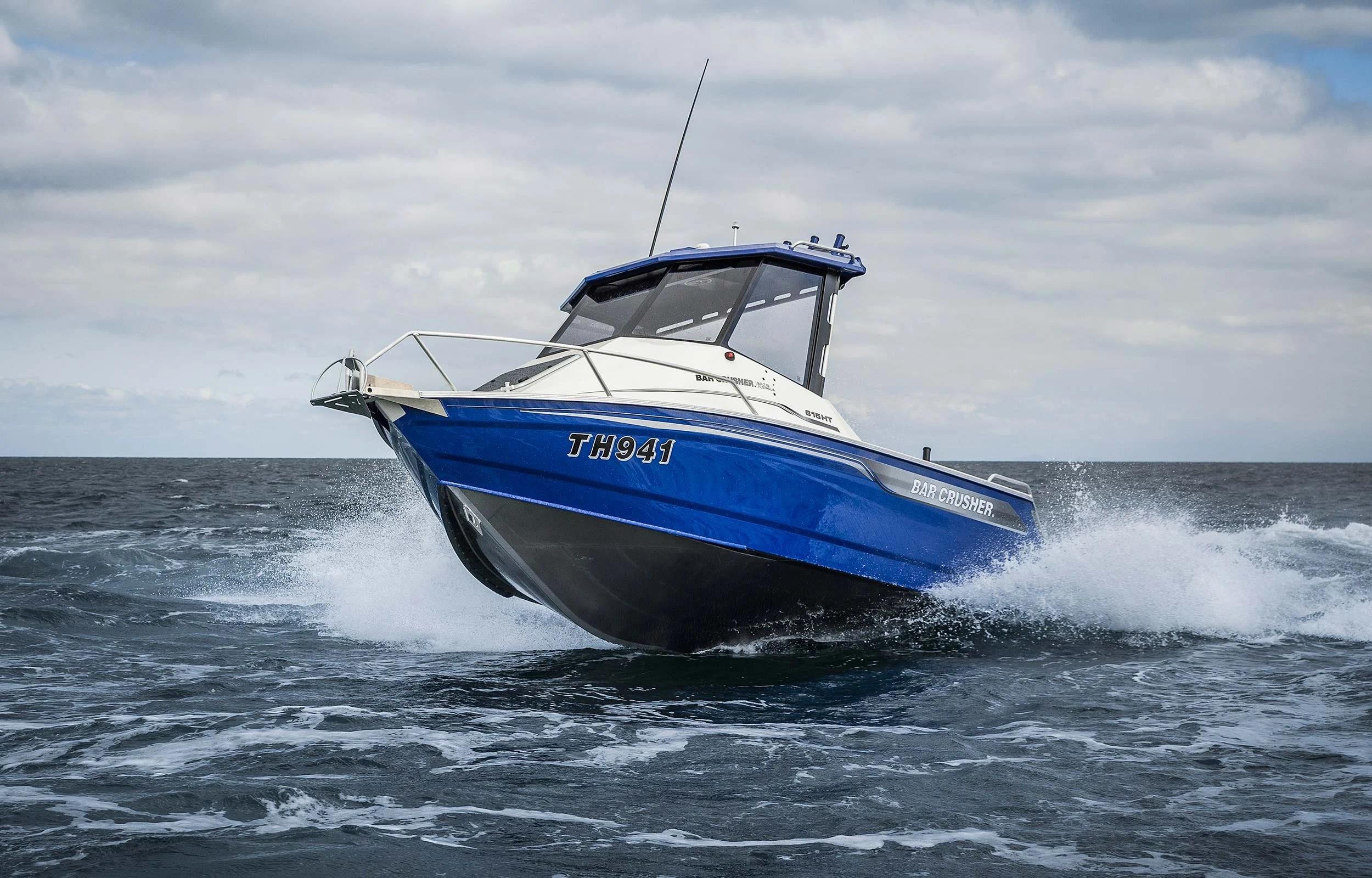

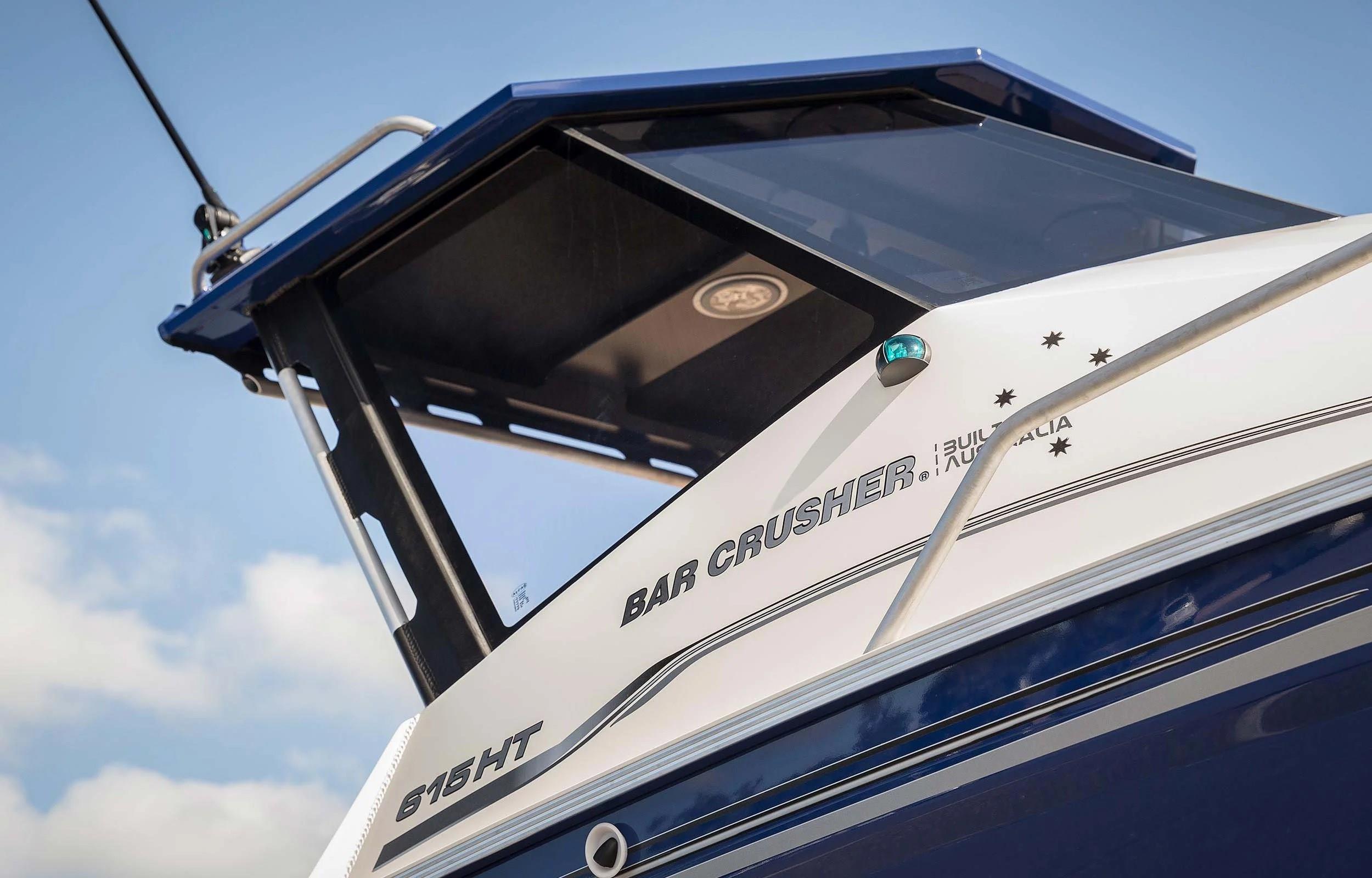

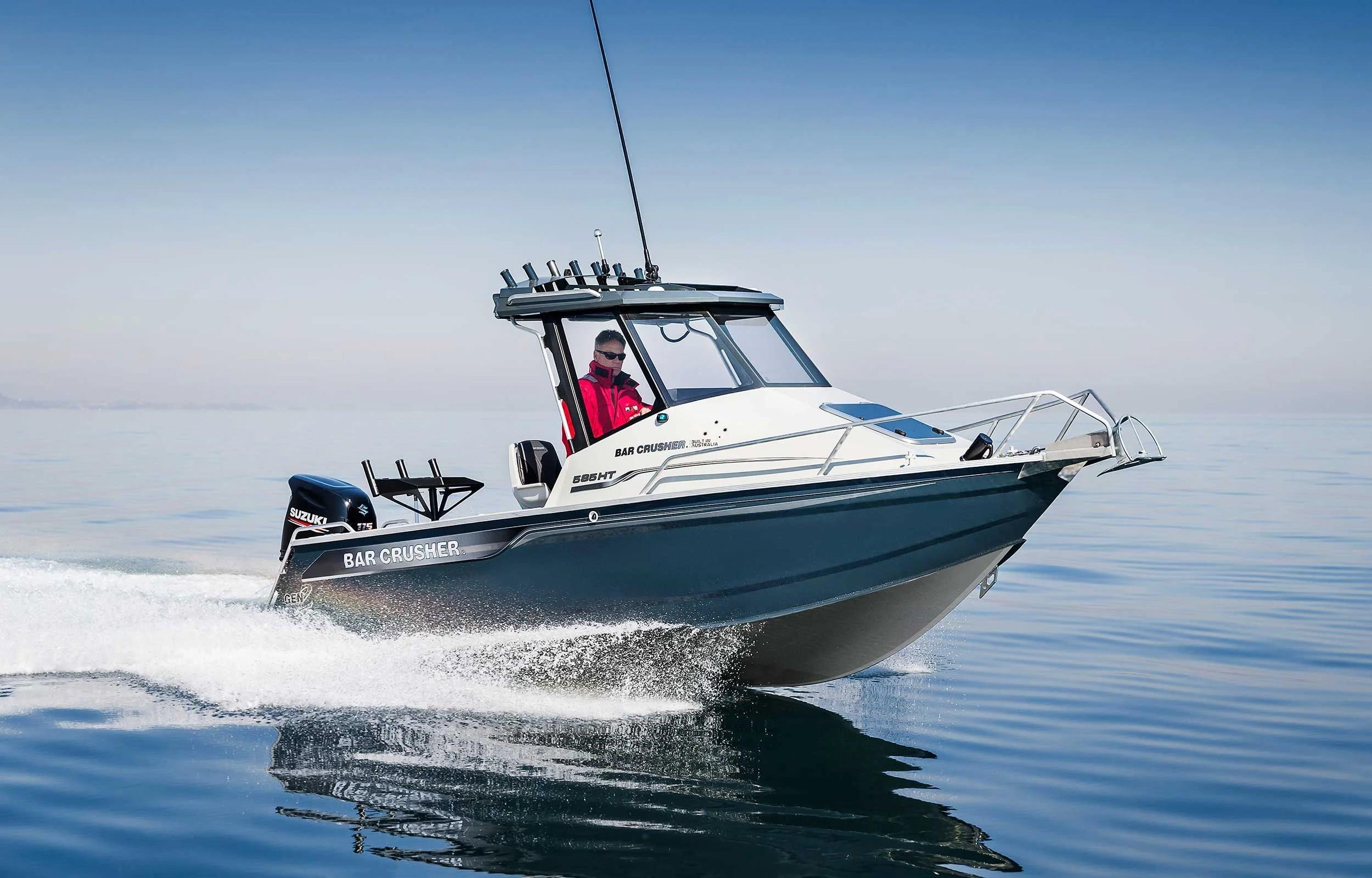

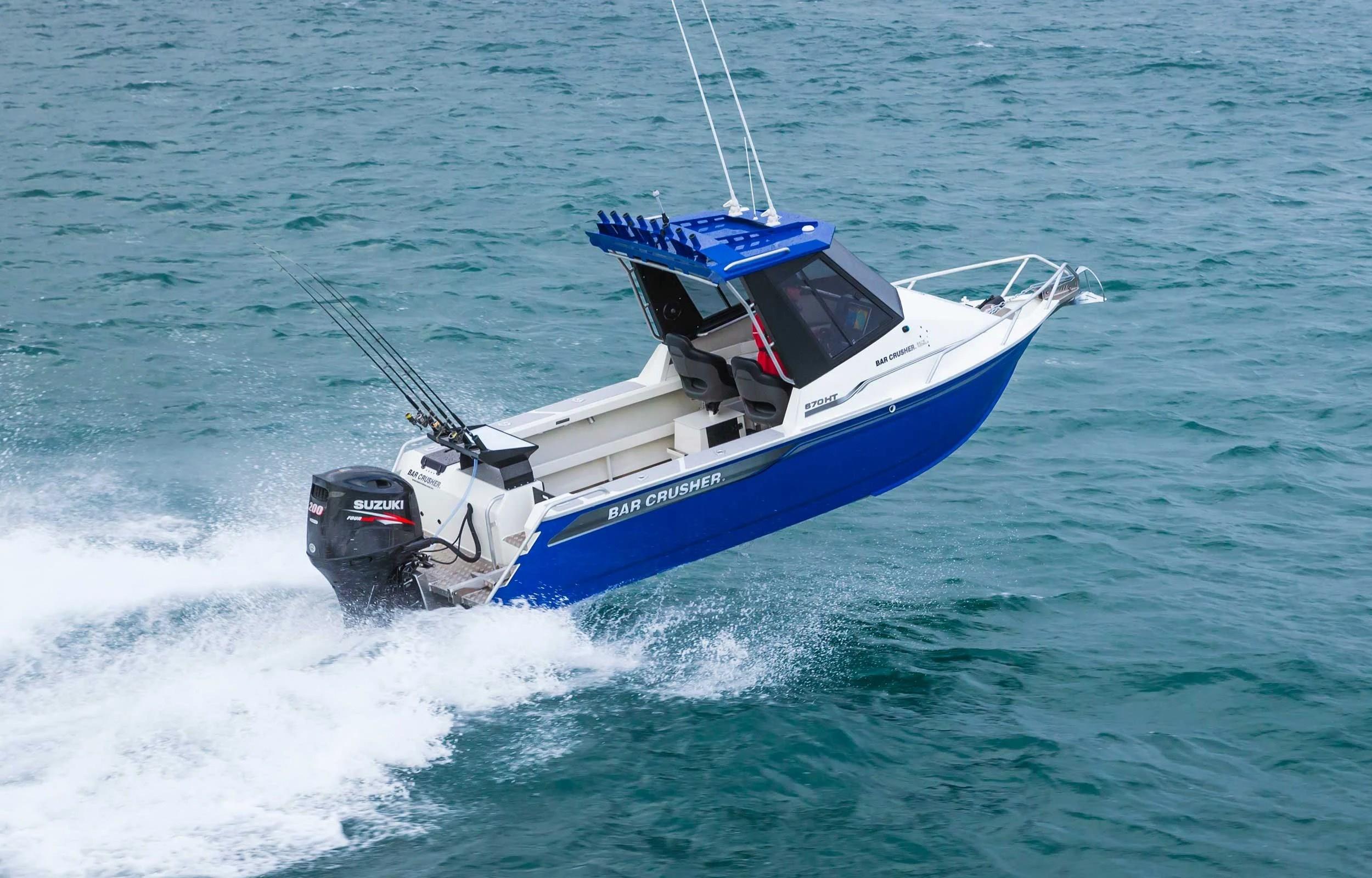

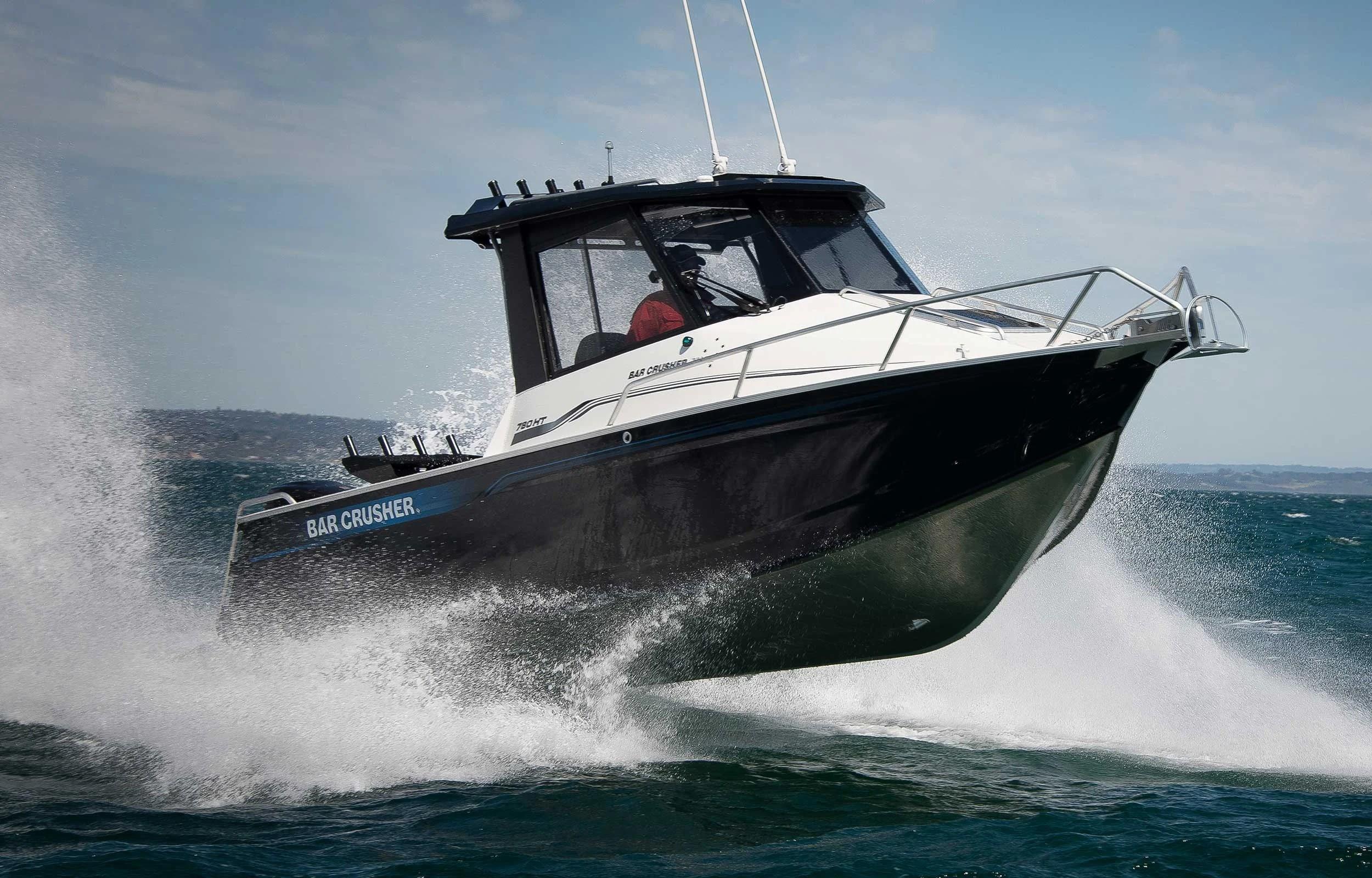

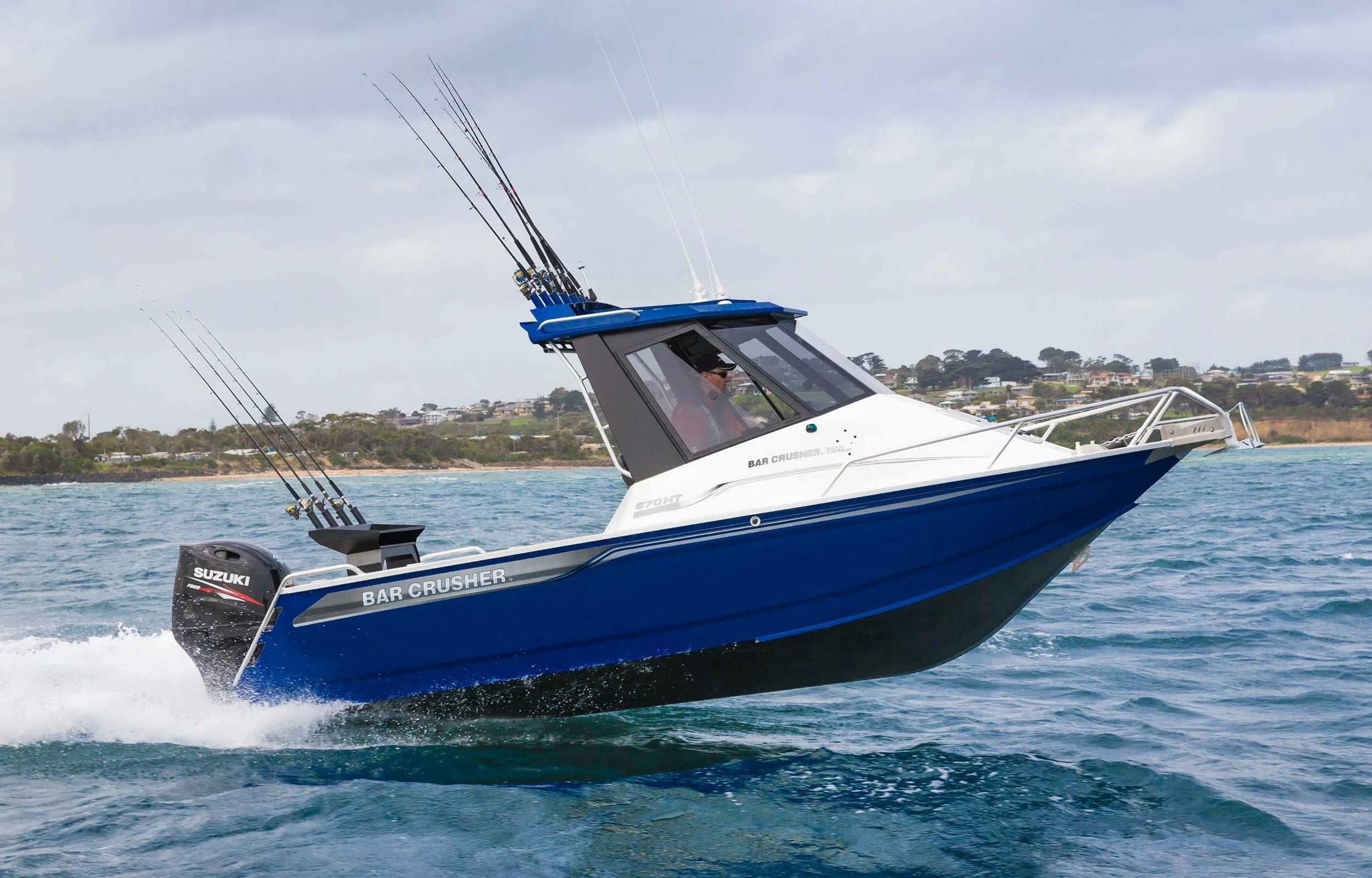

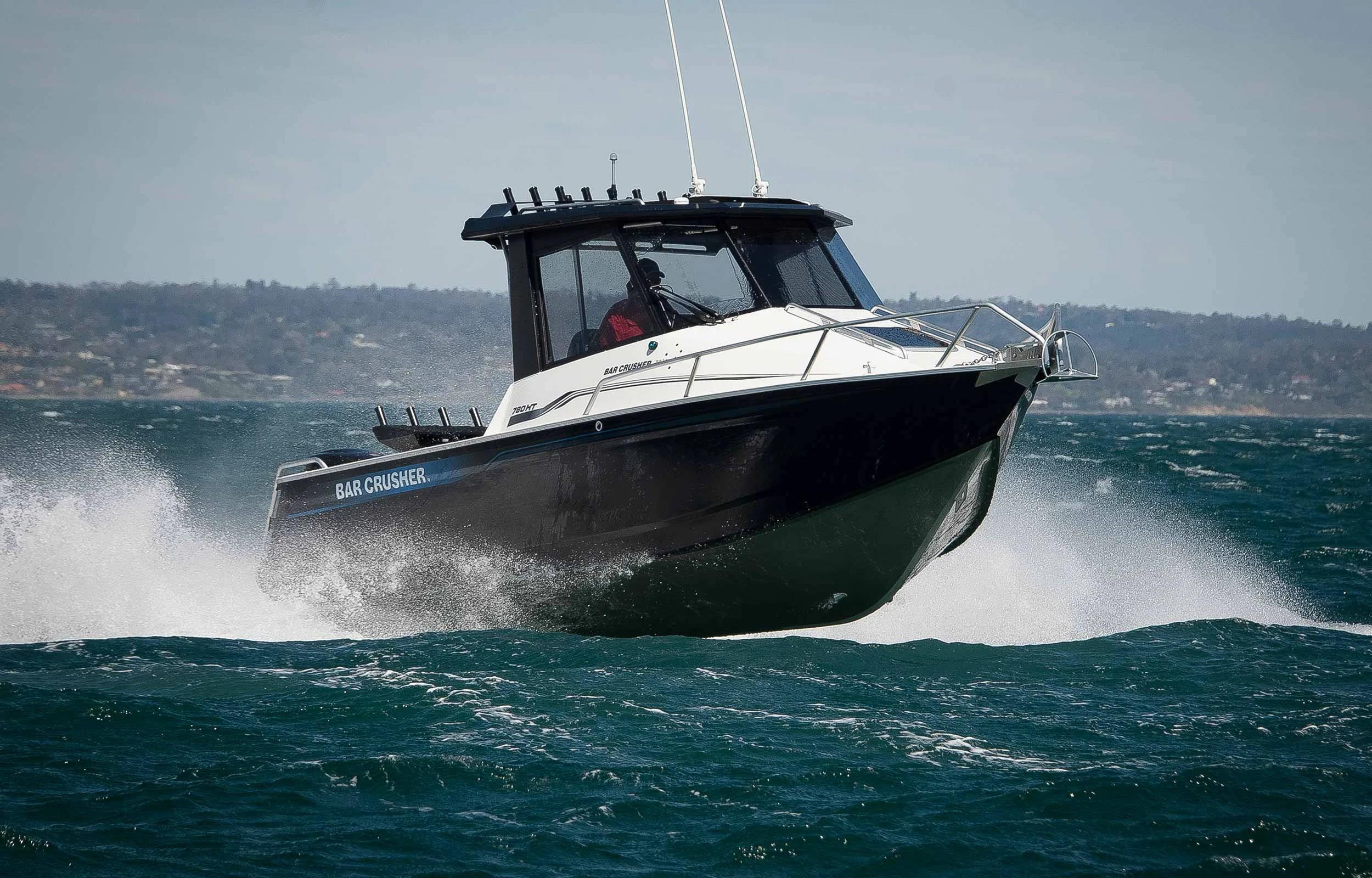

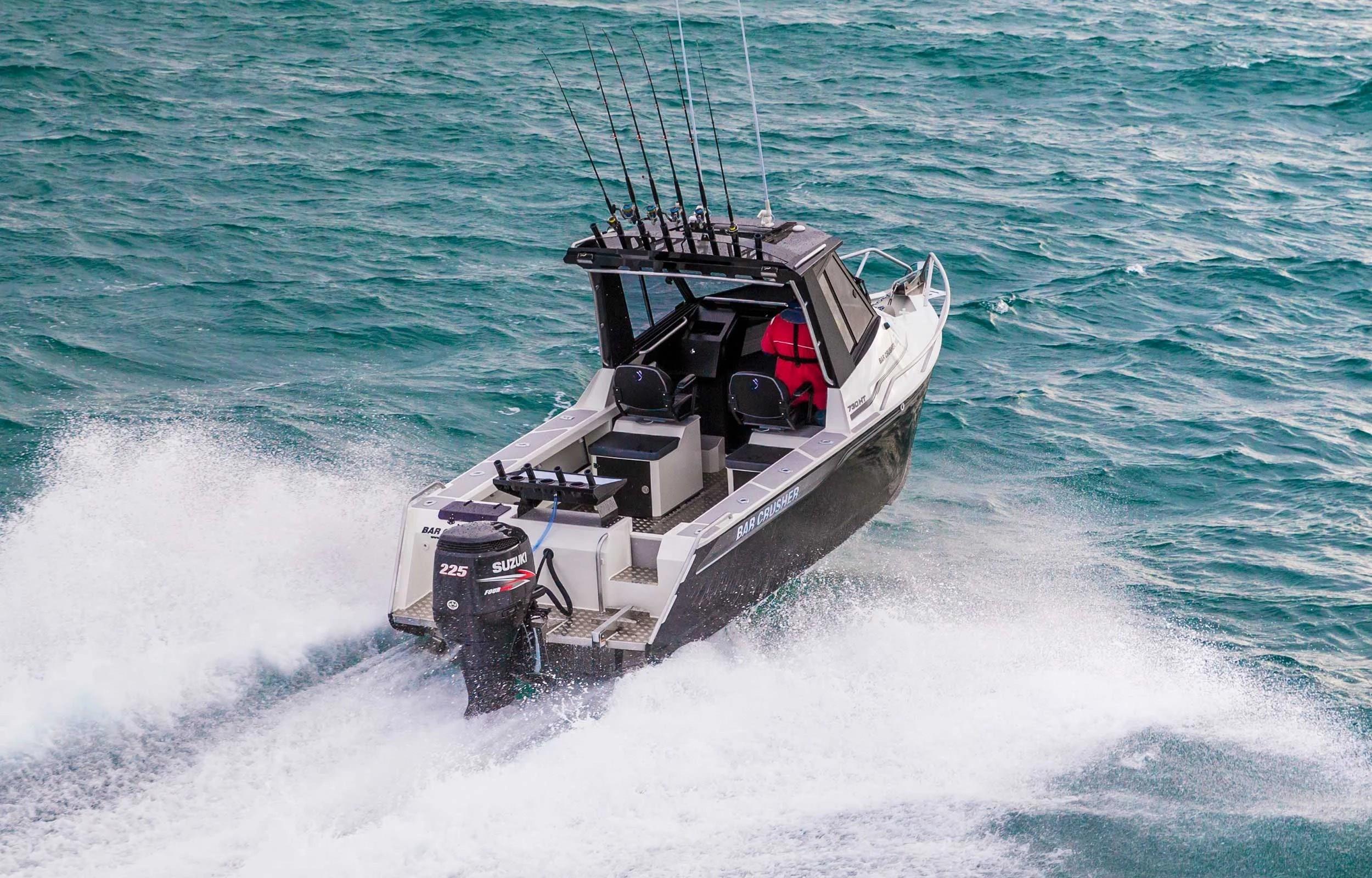

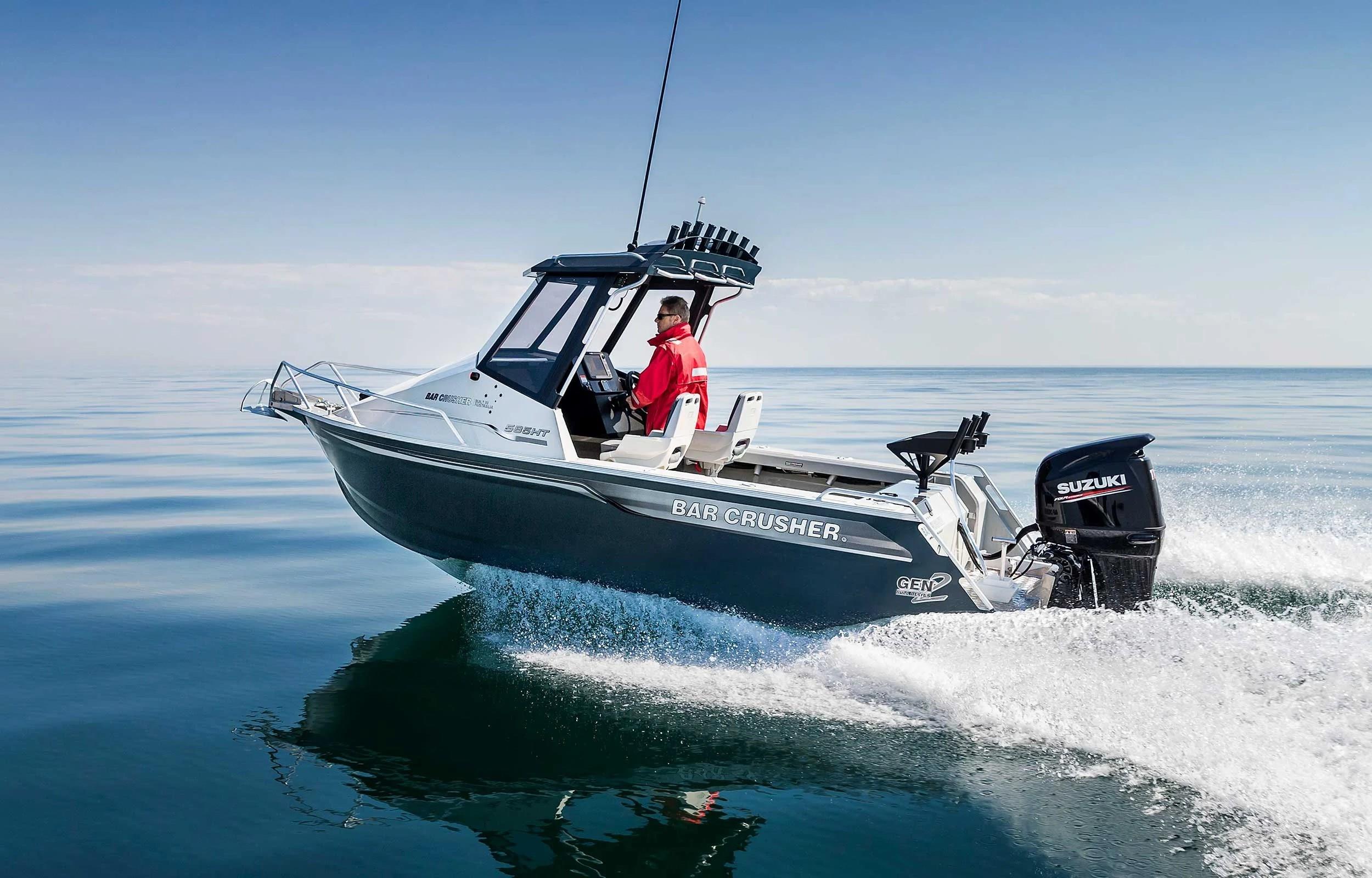

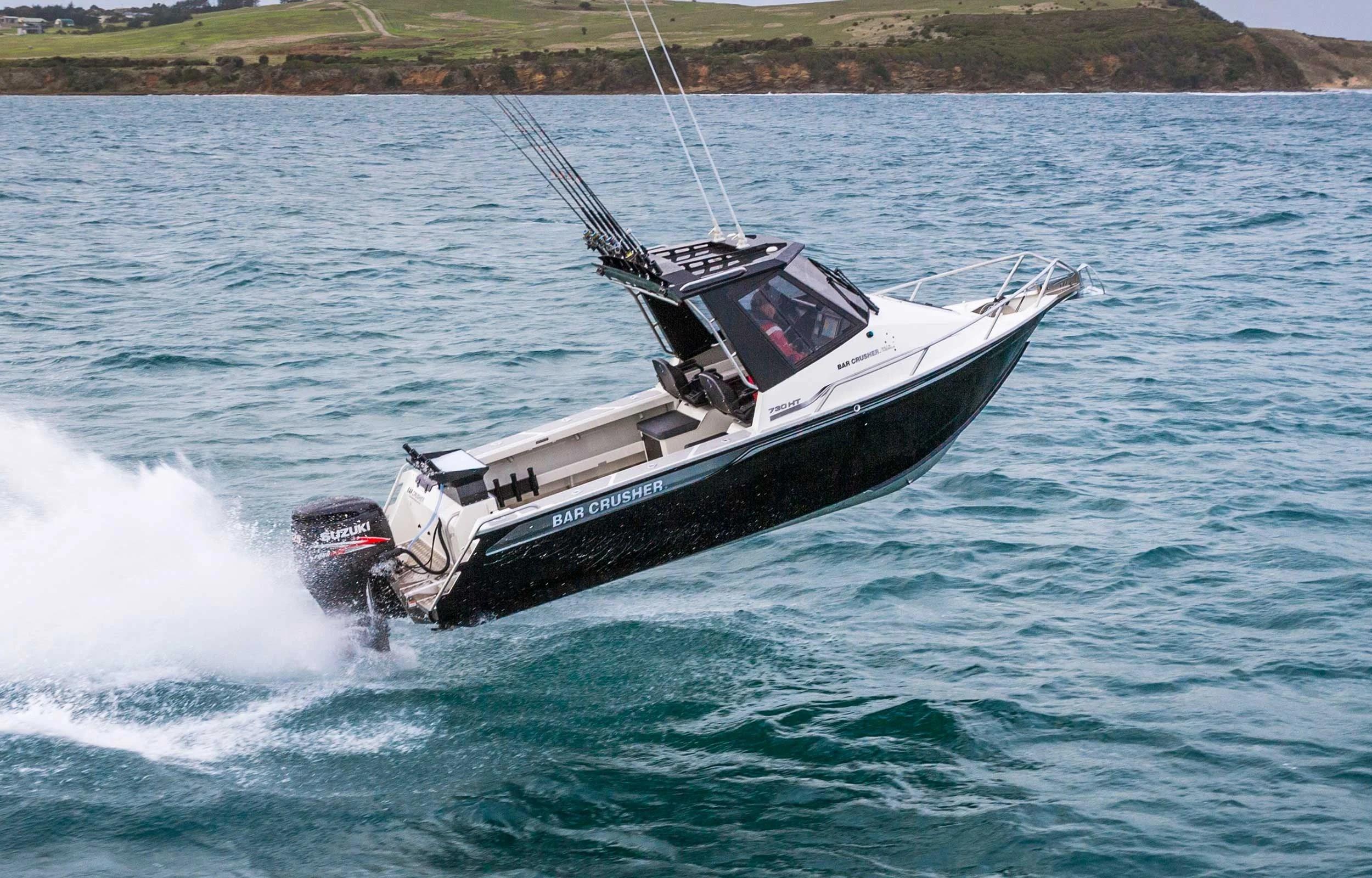

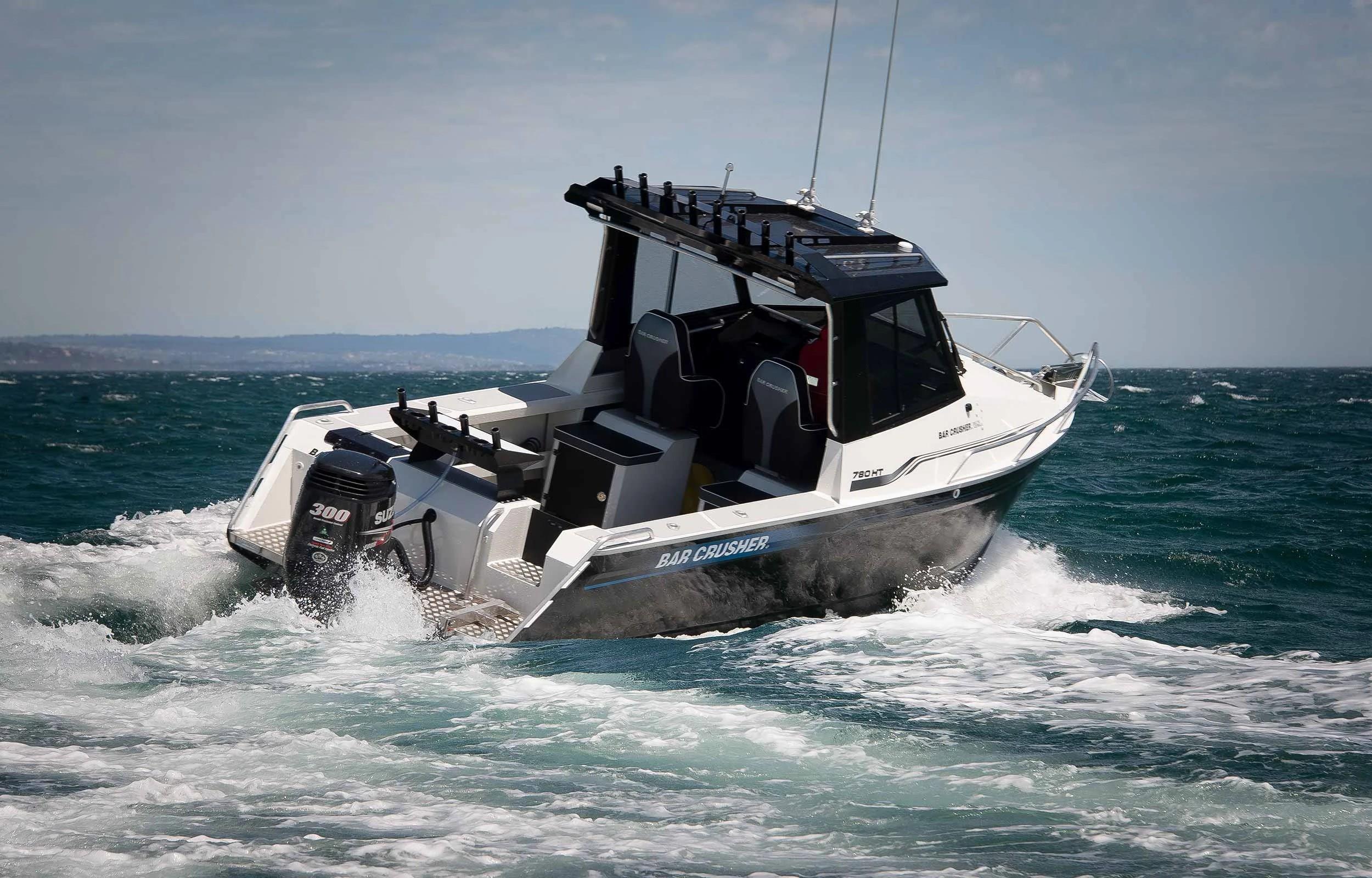

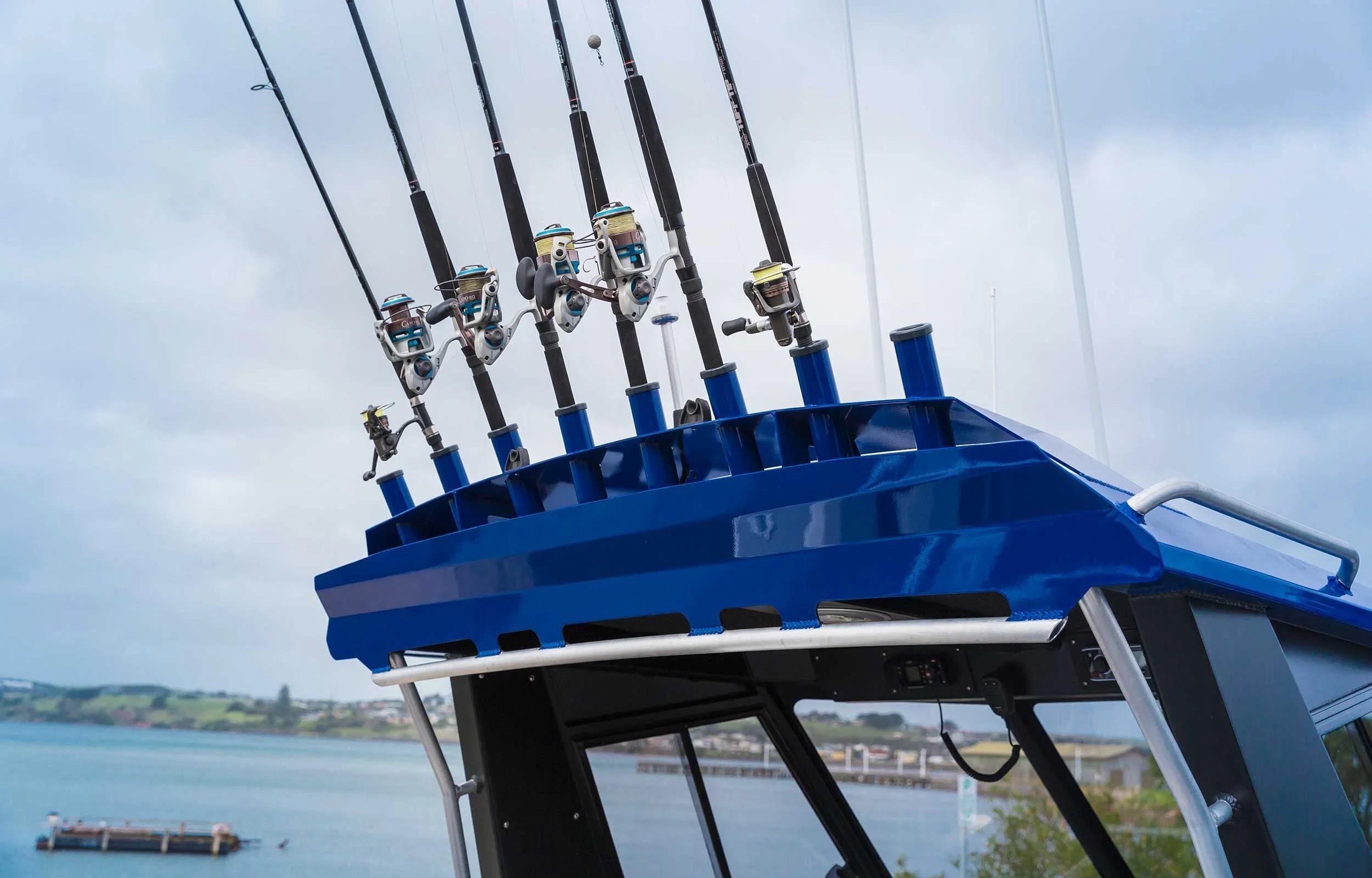

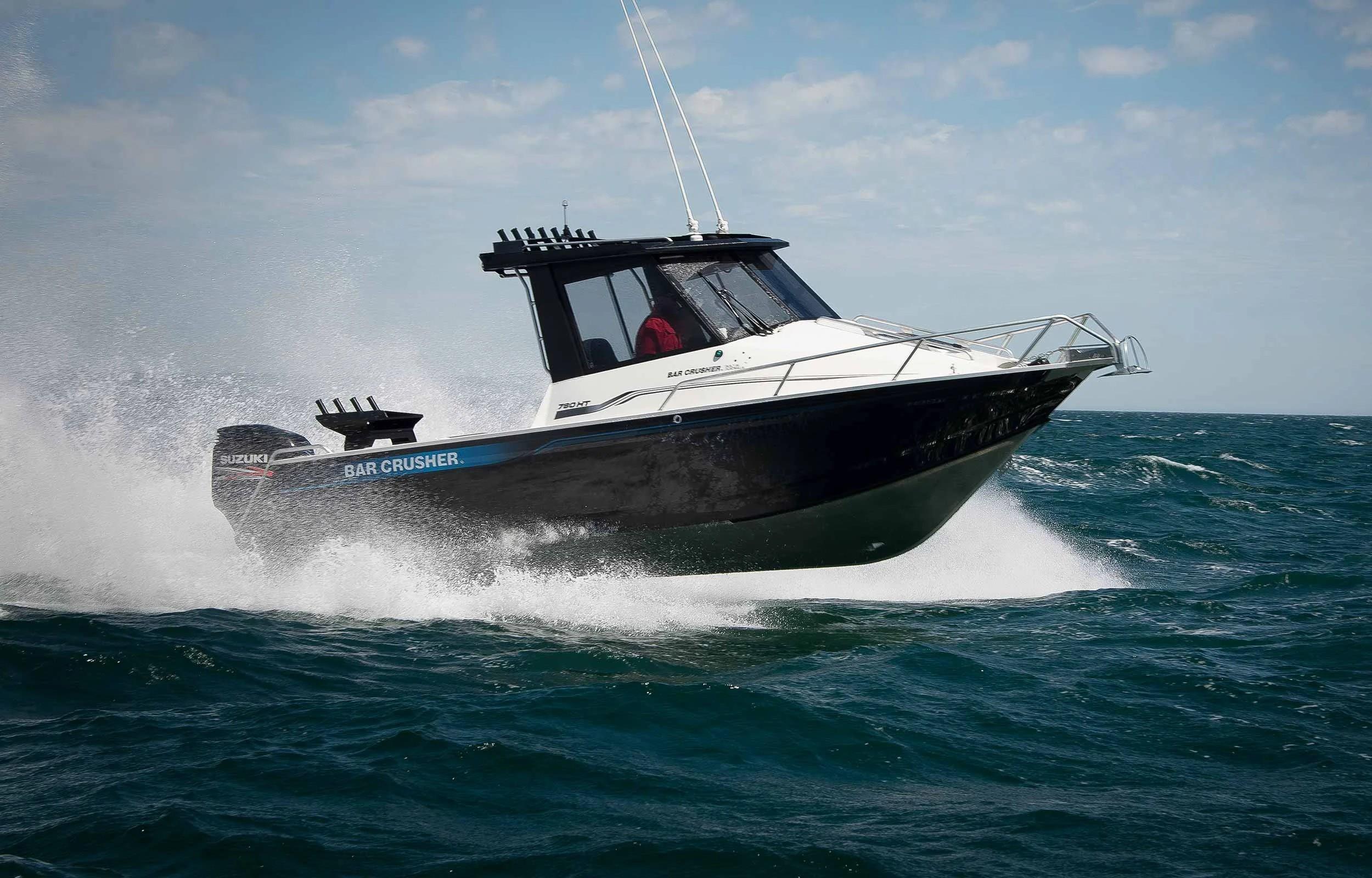

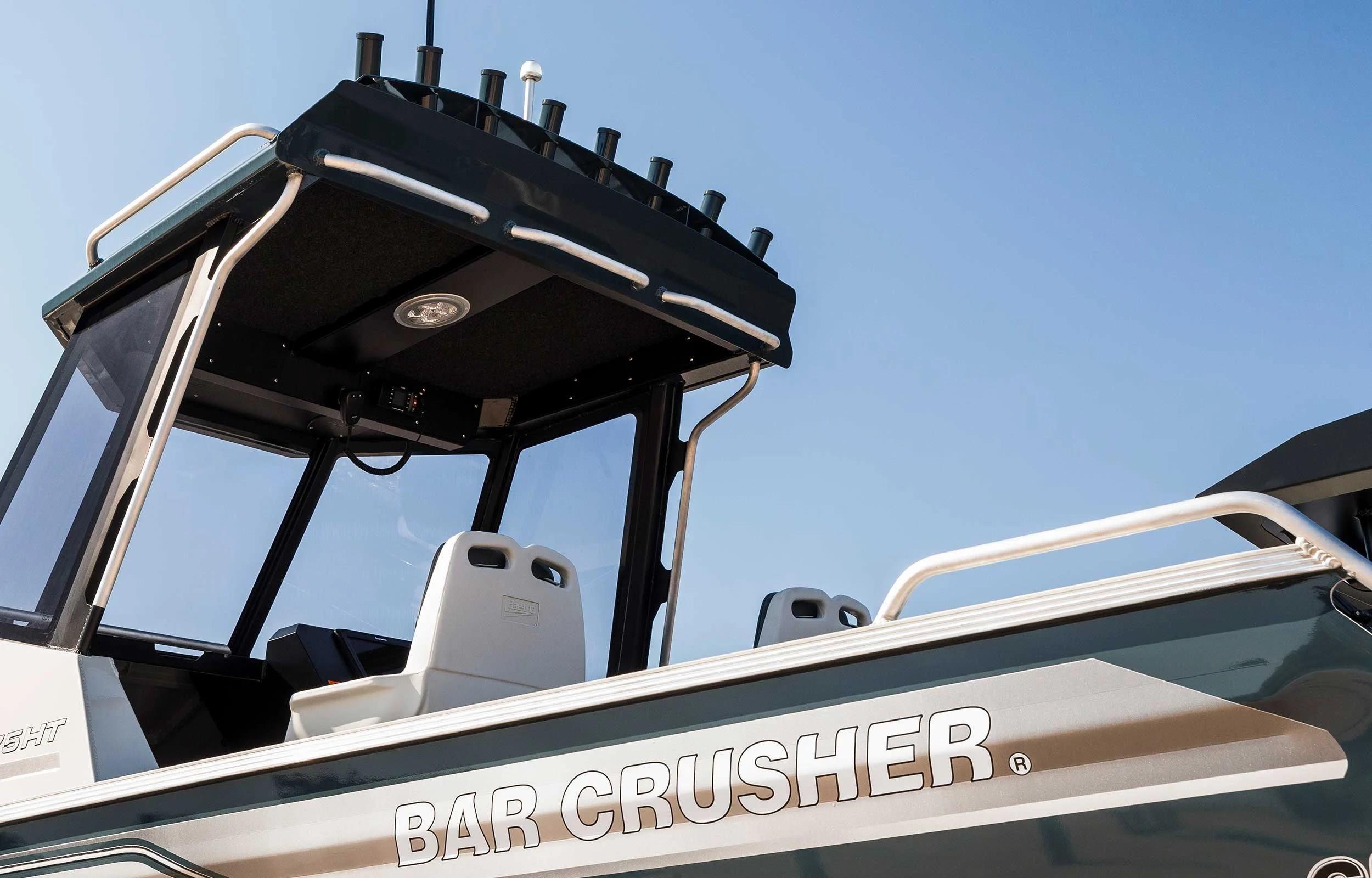

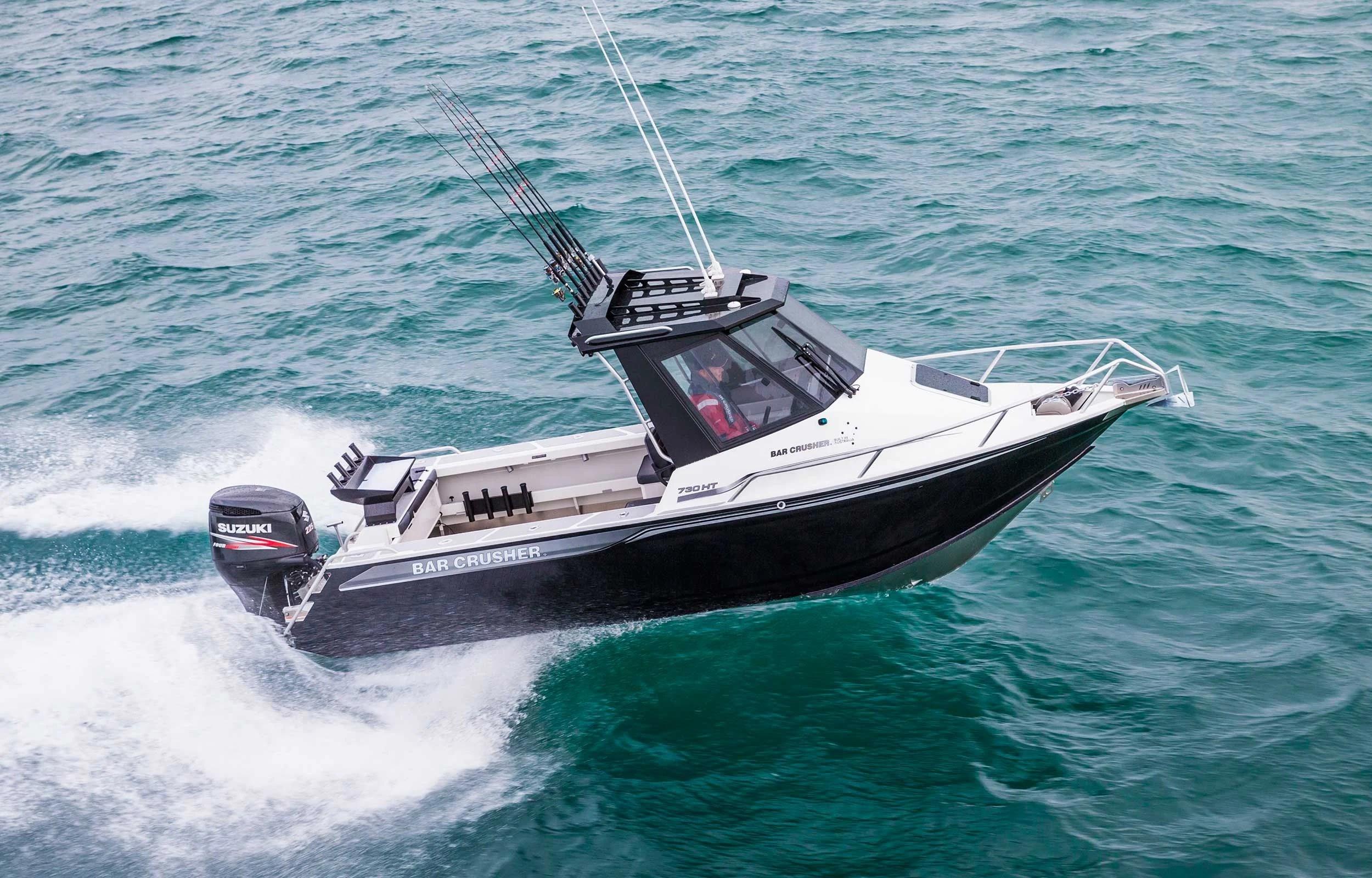

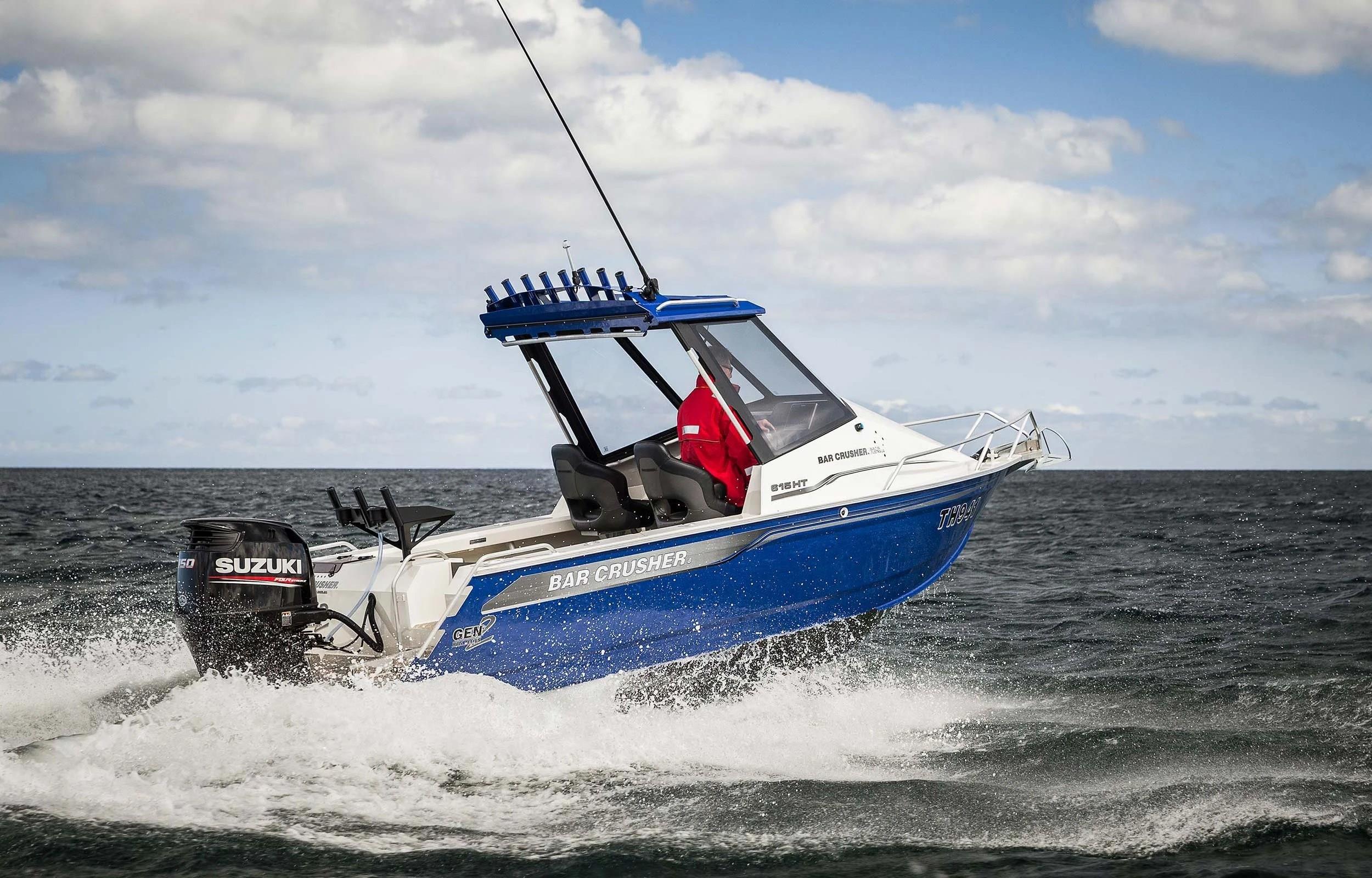

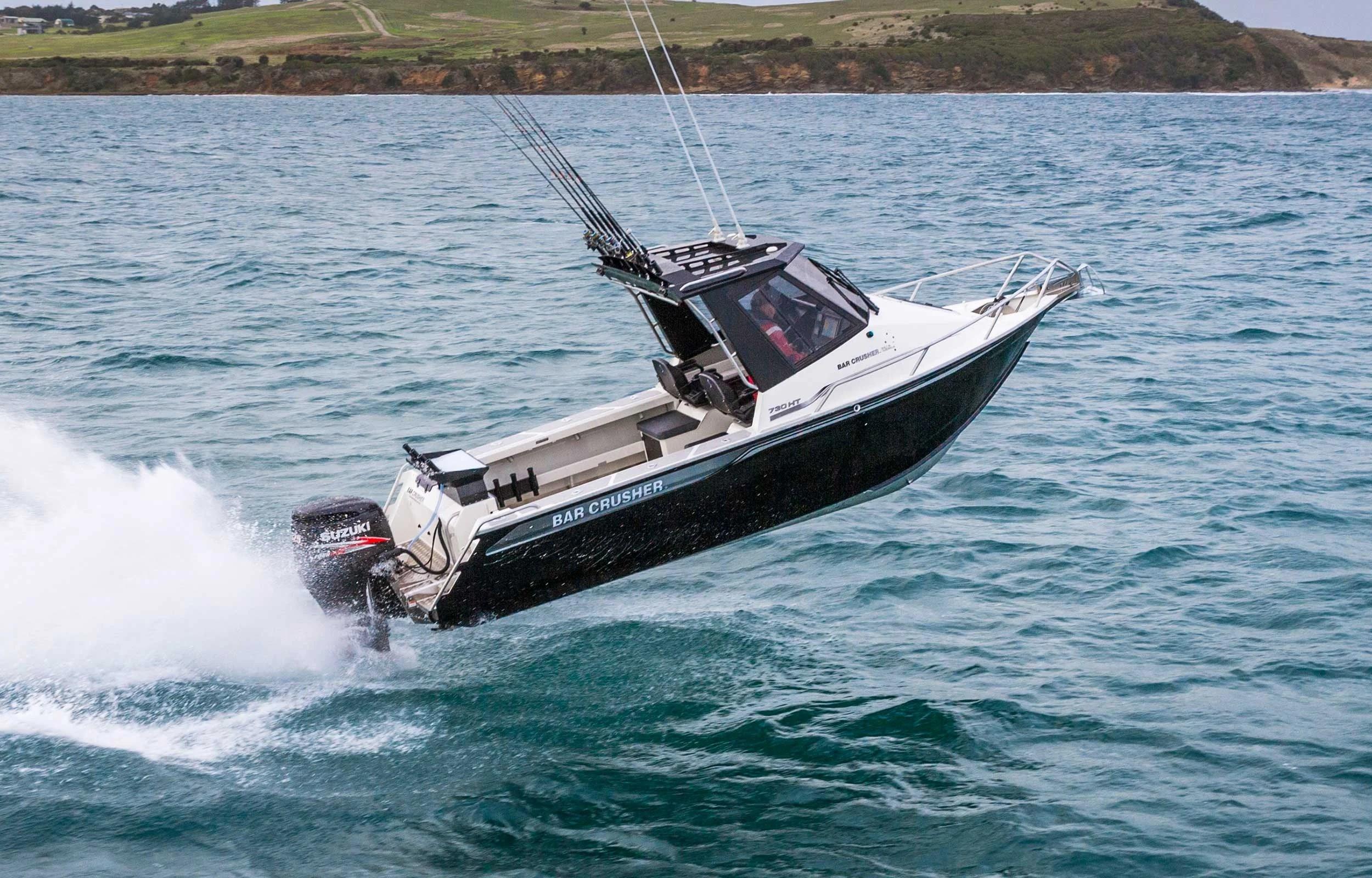

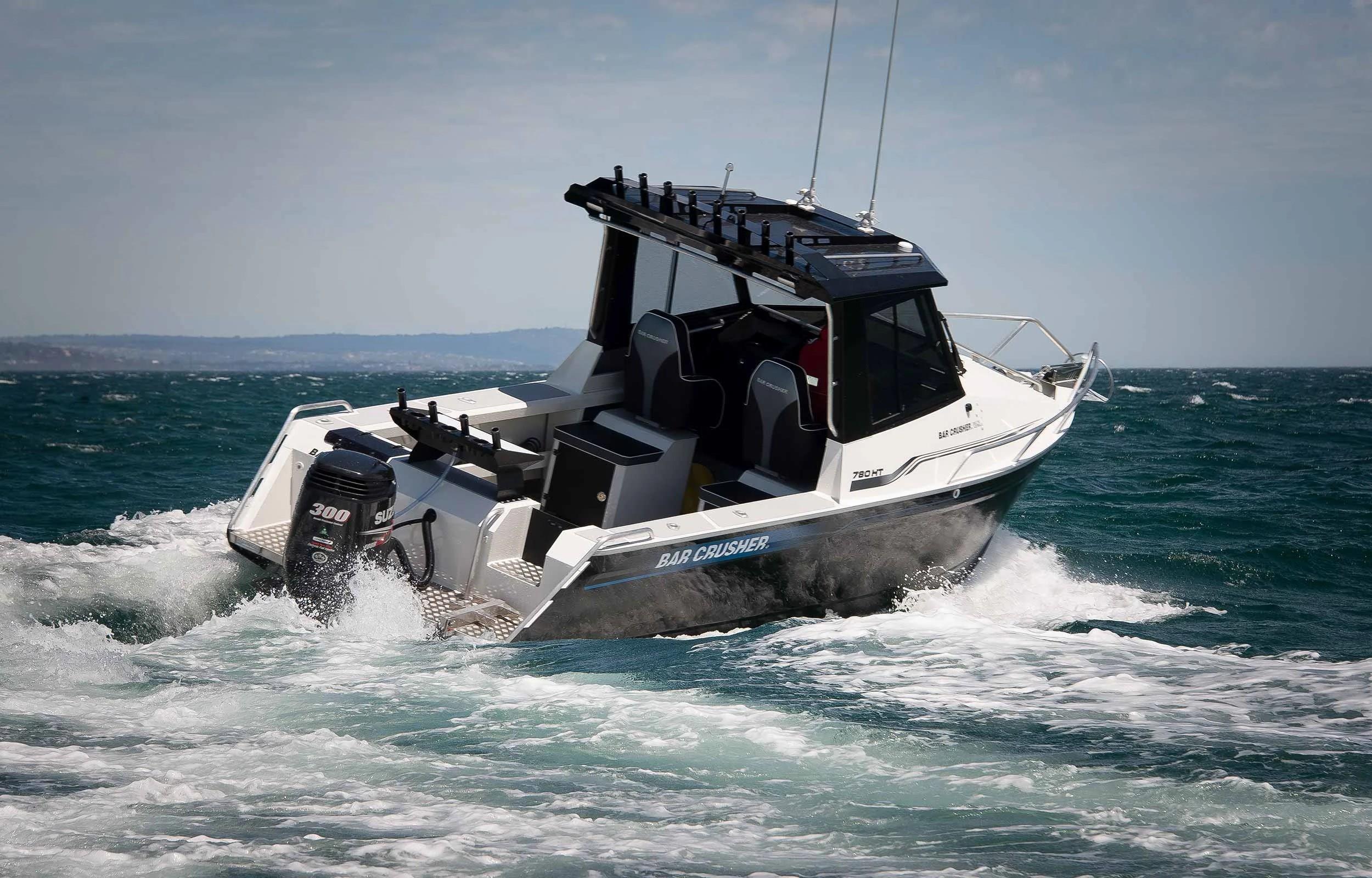

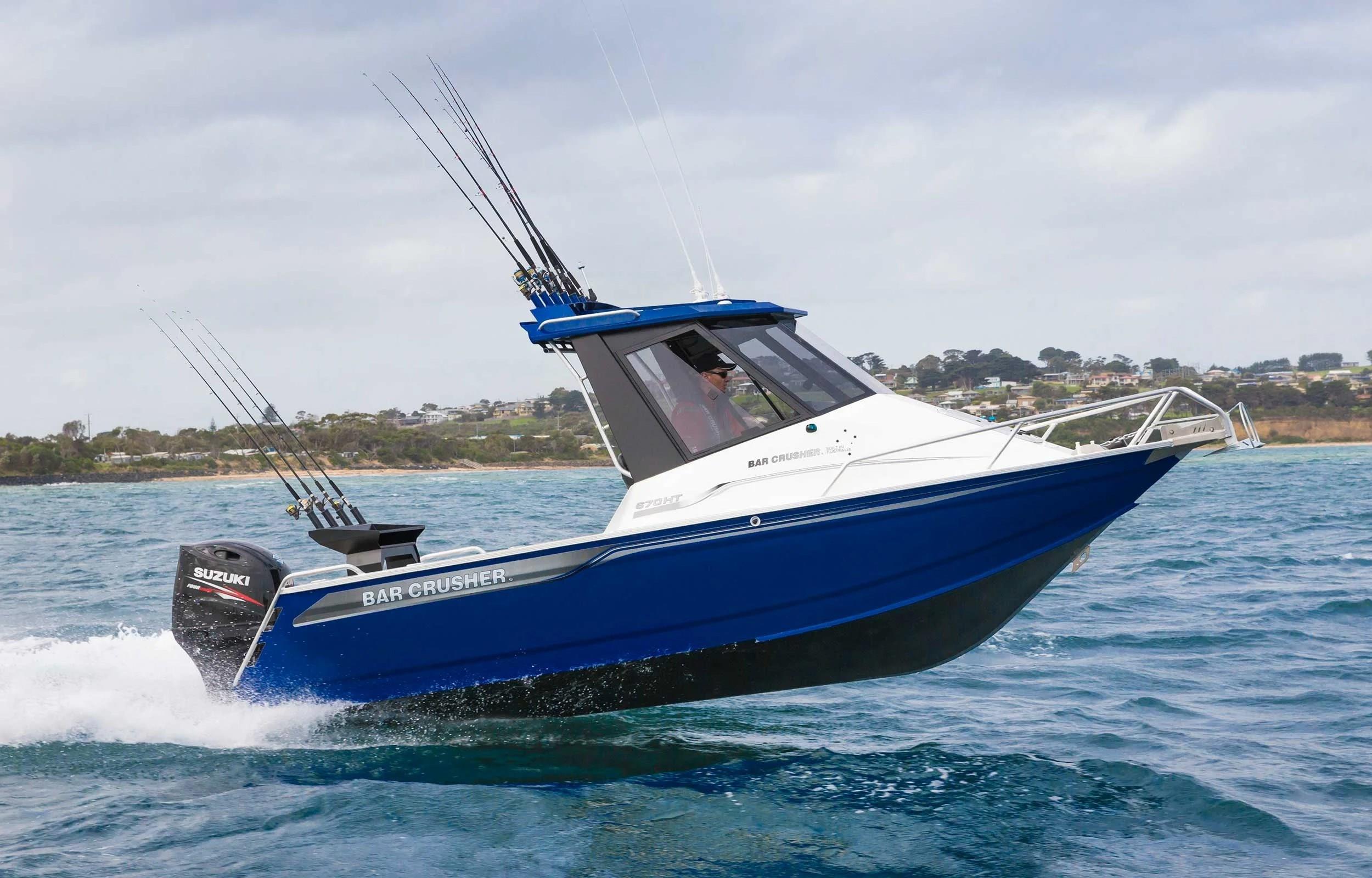

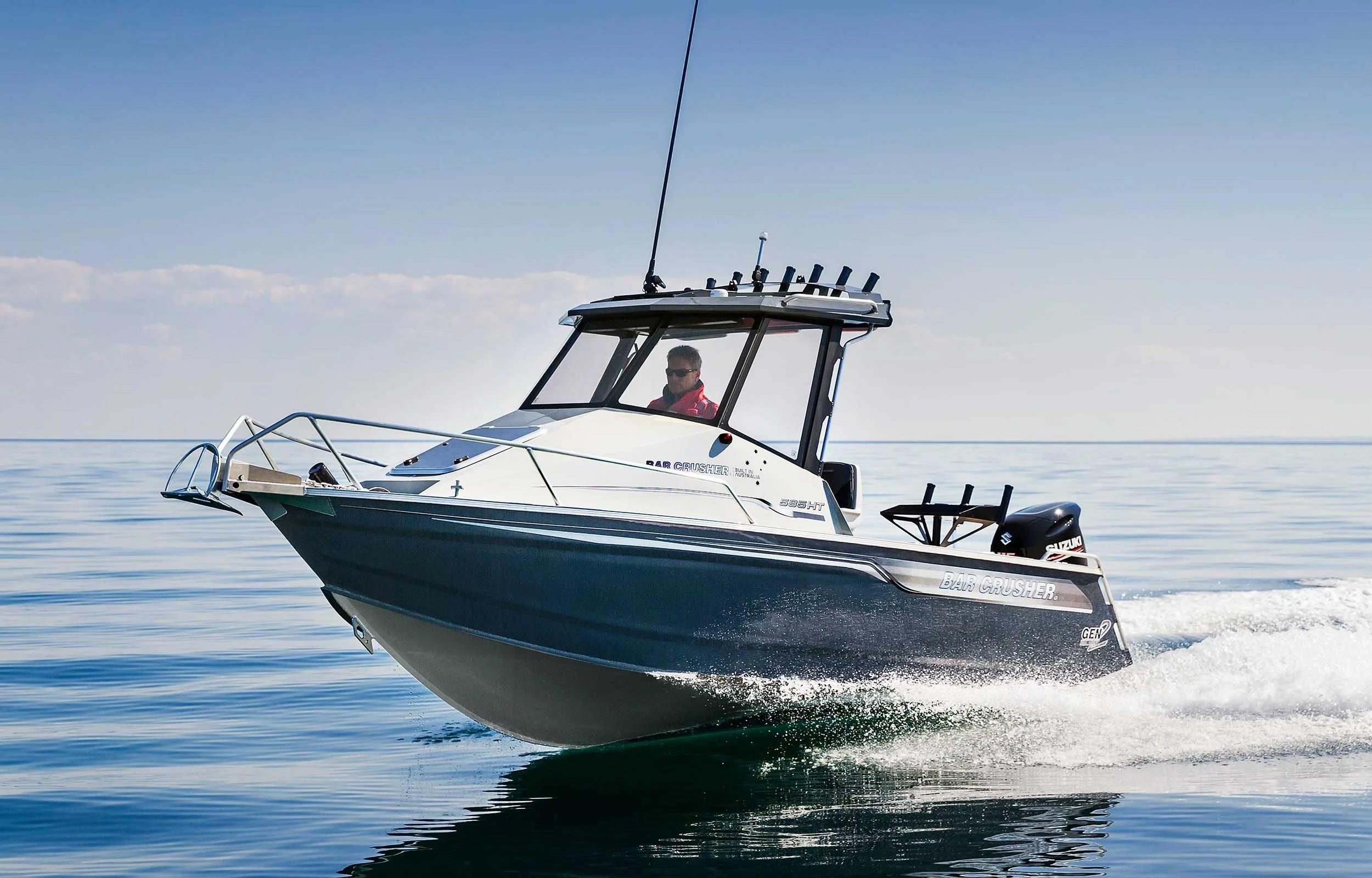

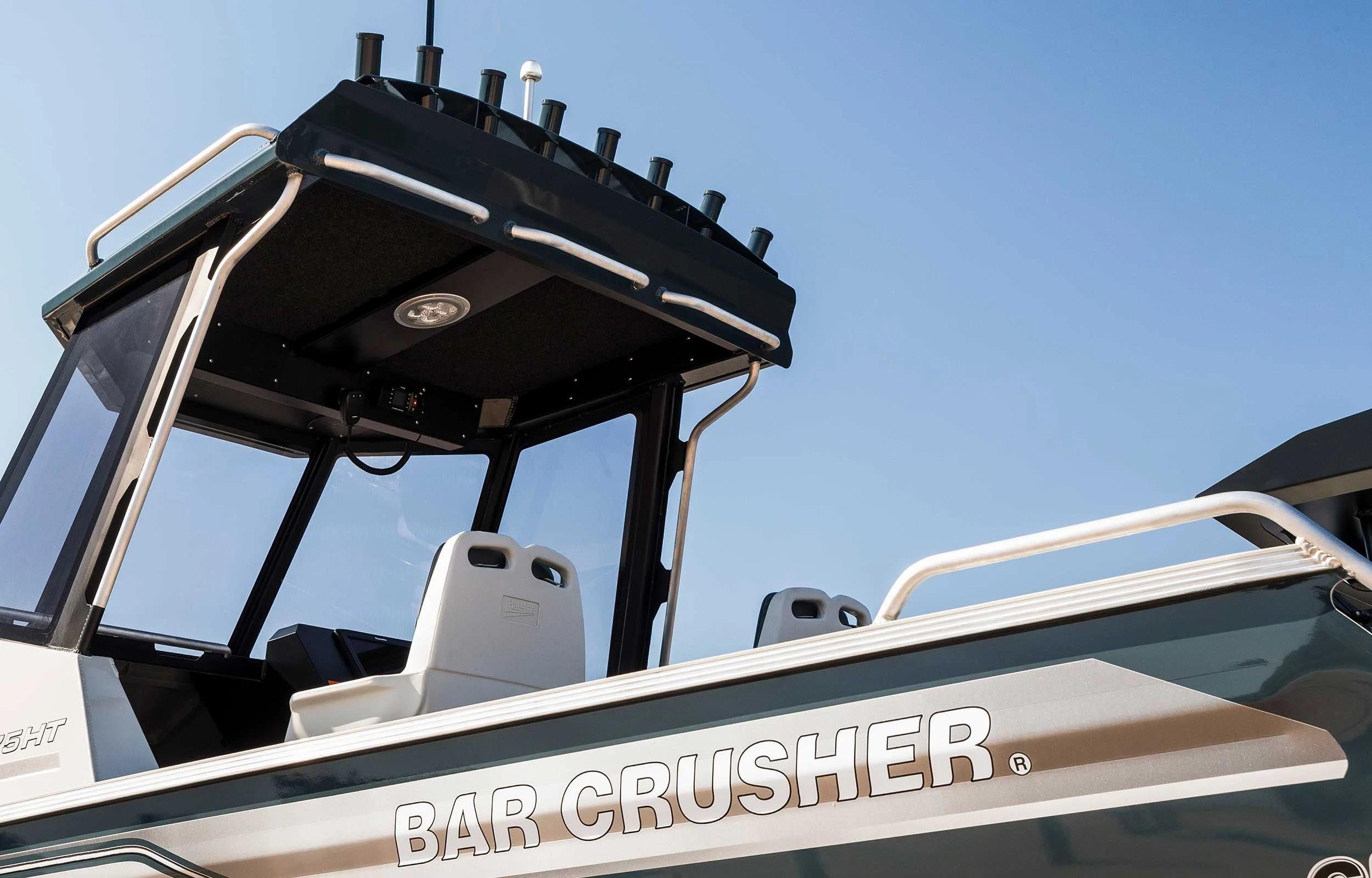

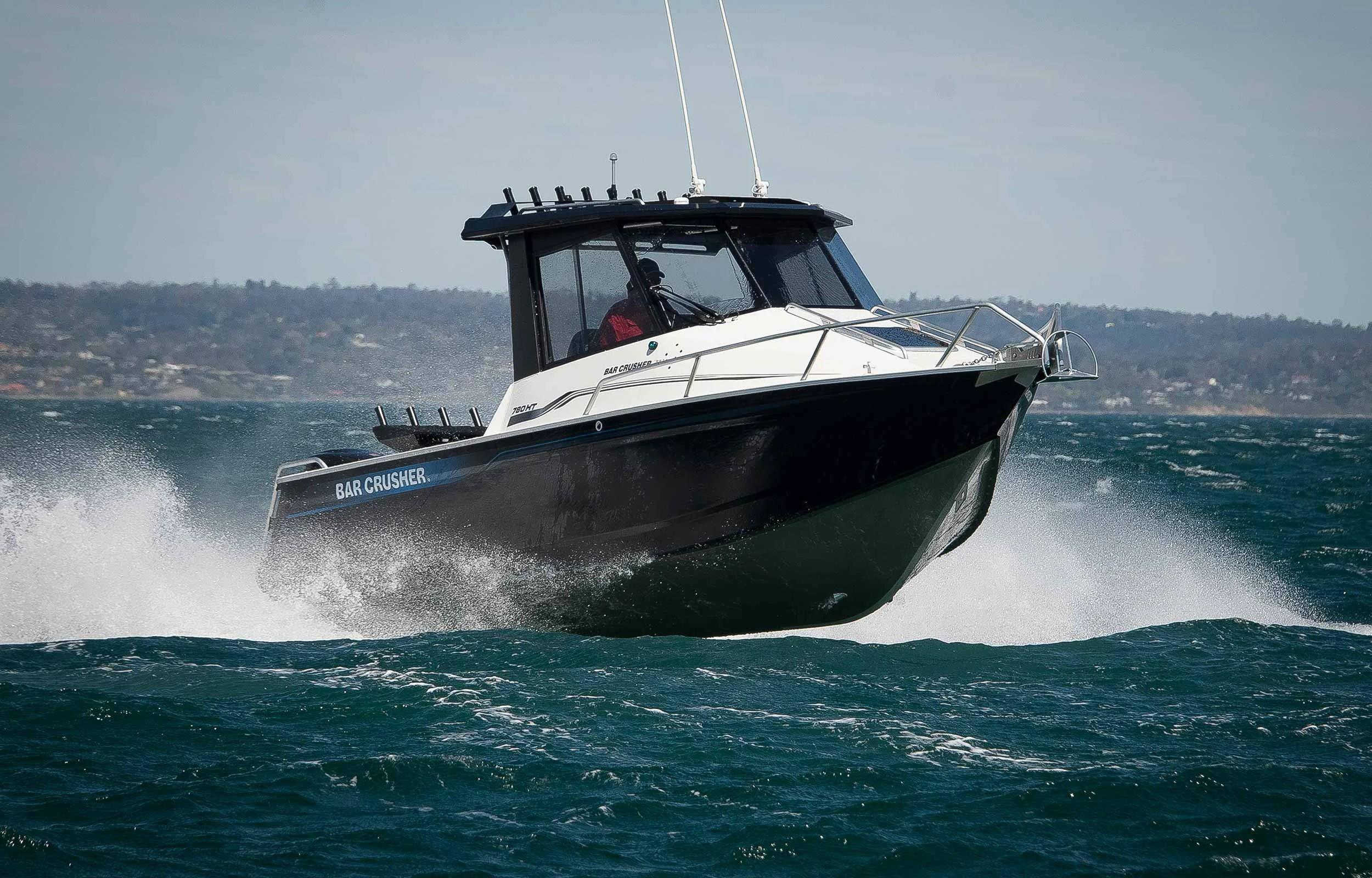

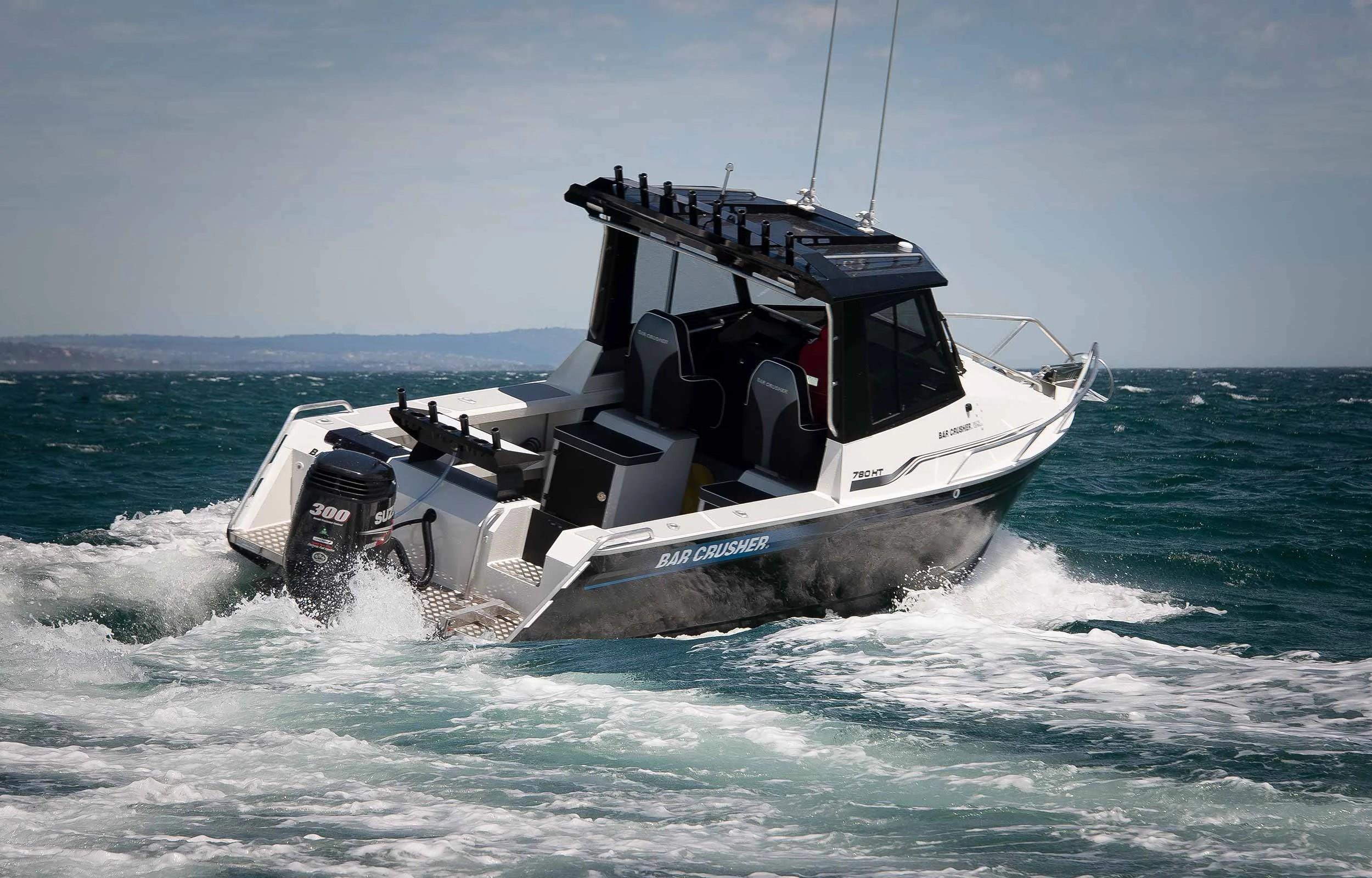

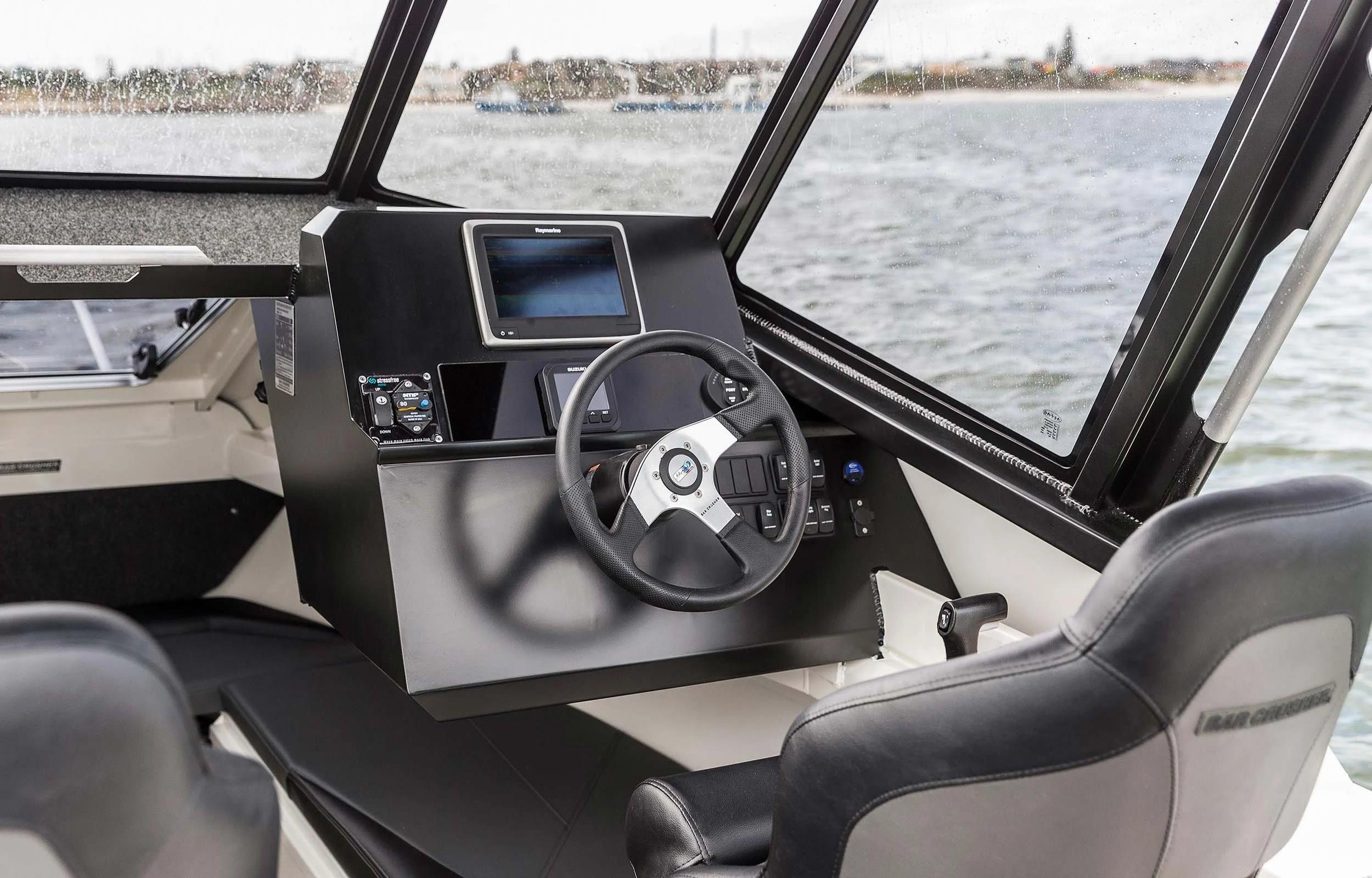

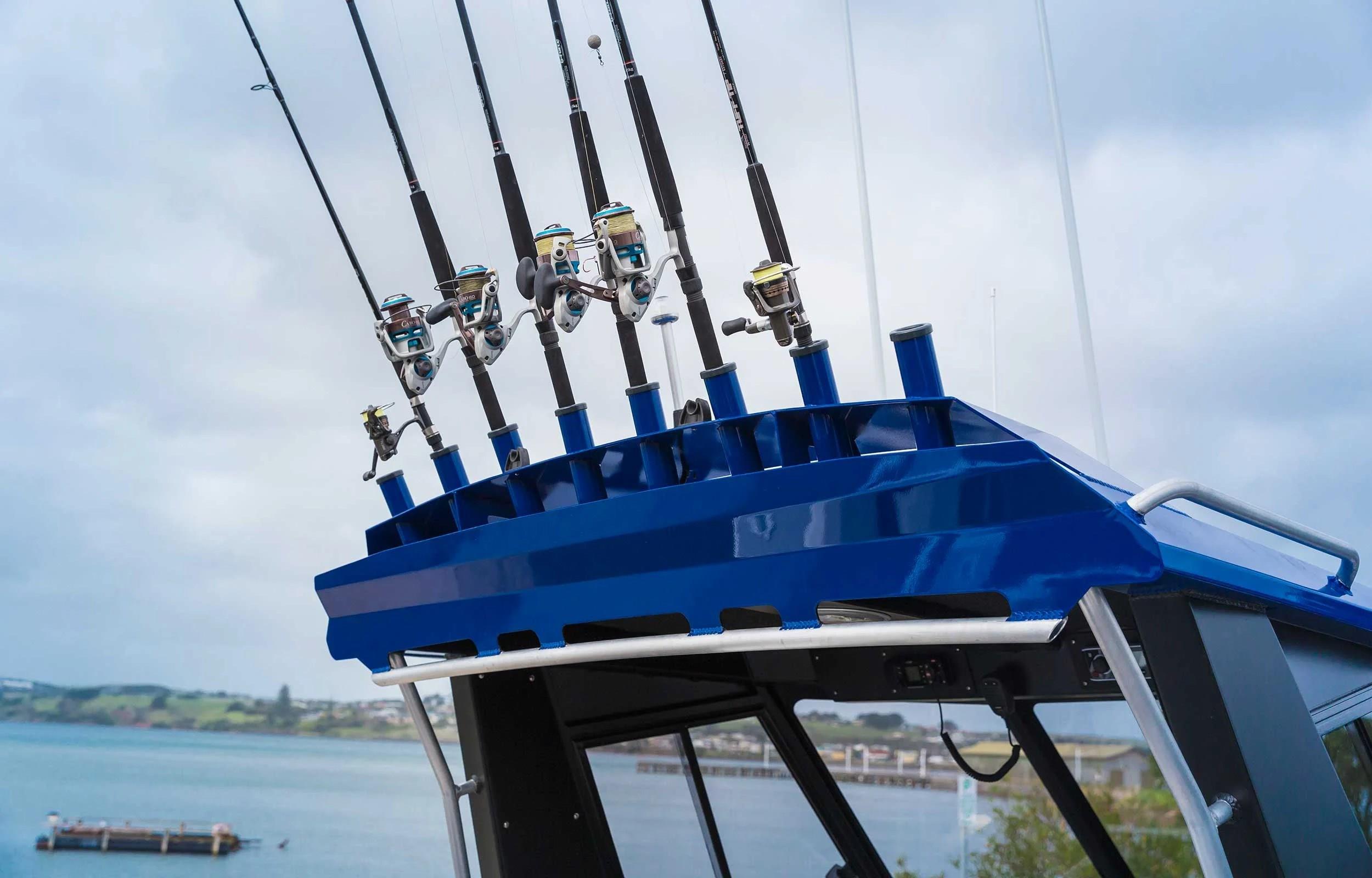

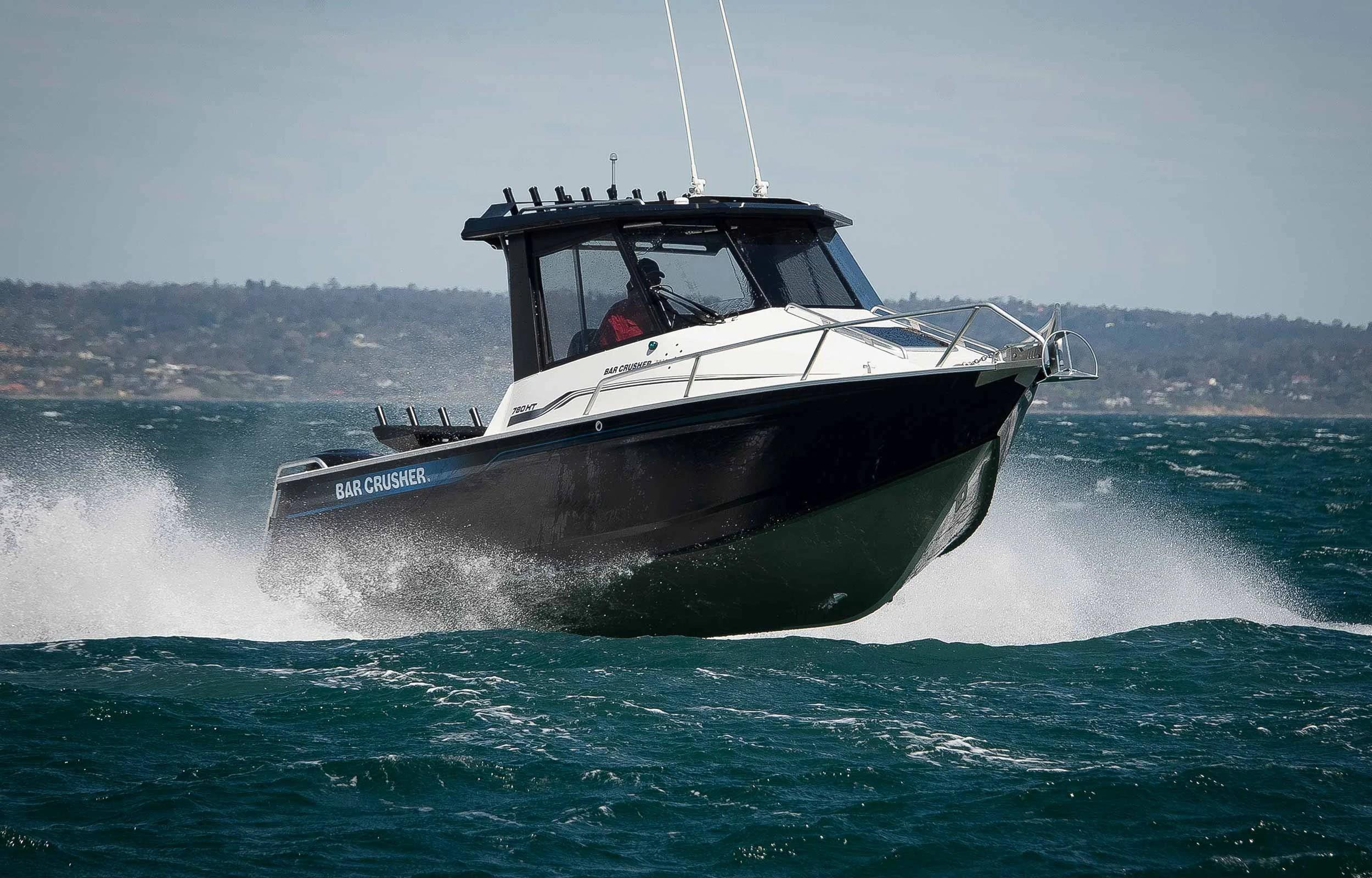

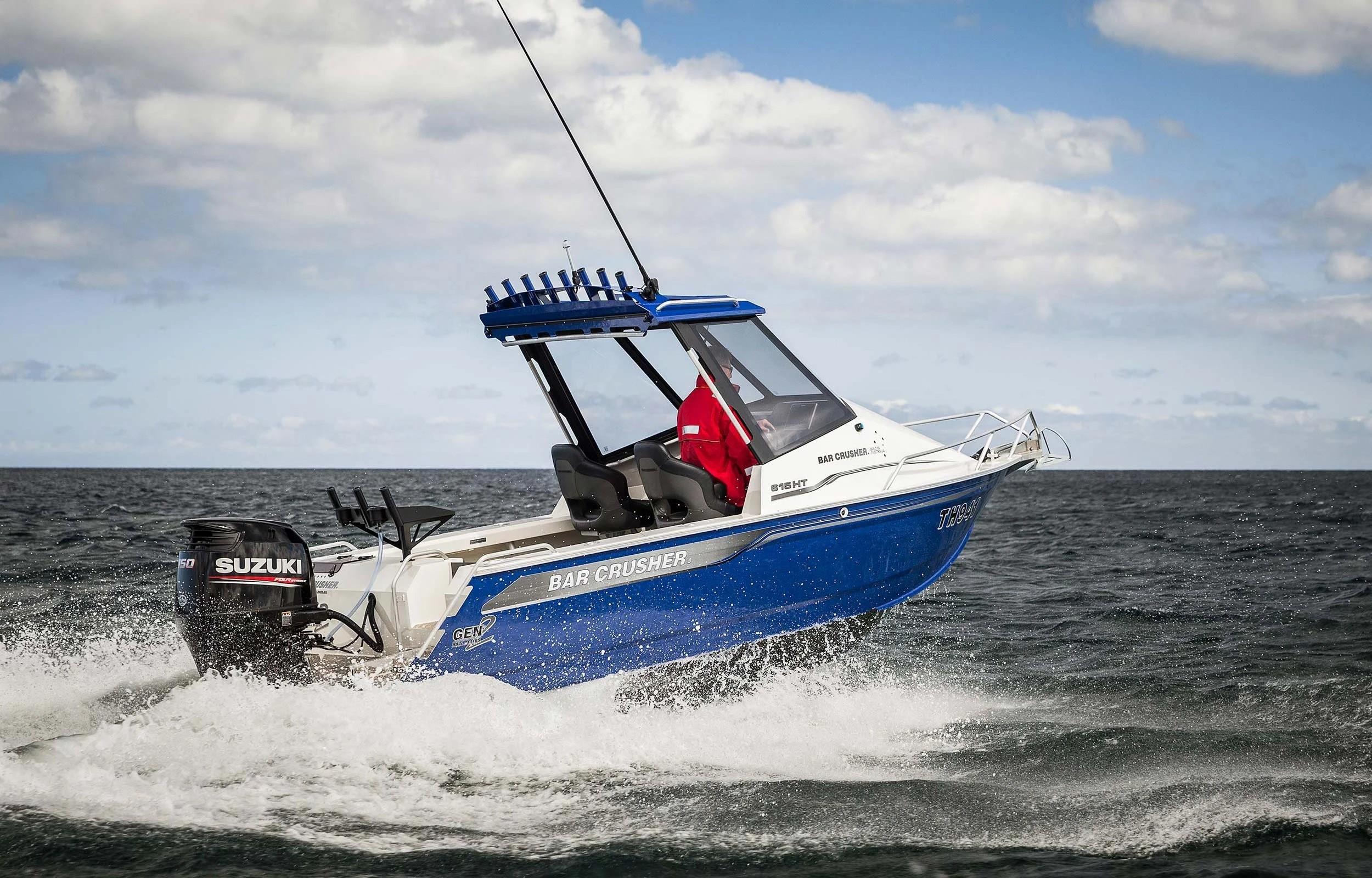

Serious offshore fishing boats with full-height, tinted glass windscreens and hard tops creating a stealth-bomber-like appearance, the HT series allows you to keep going even when the going gets tough... really tough!

HT SERIES image img-nmm

SPECIFICATIONS & FEATURES

Specifications

  585HT 615HT 670HT 730HT 780HT
Length overall (mm) 5850 6150 6700 7300 7800
Beam (mm) 2150 2250 2350 2450 2450
Internal freeboard (mm) 730 780 800 720 720
Bottom sides (mm) 4 4 5 5 5
Top sides (mm) 3 4 4 4 4
Transom length (in) 25 25 25 25 25
Fuel capacity (L) 160 200 230 420 450
Fuel system SafeTank™ SafeTank™ SafeTank™ SafeTank™ SafeTank™
Tow weight (kg) – dry weight 1430 1620 1880 2260 2380
Minimum horsepower 90 130 150 200 200
Maximum horsepower 140 150 200 300 350

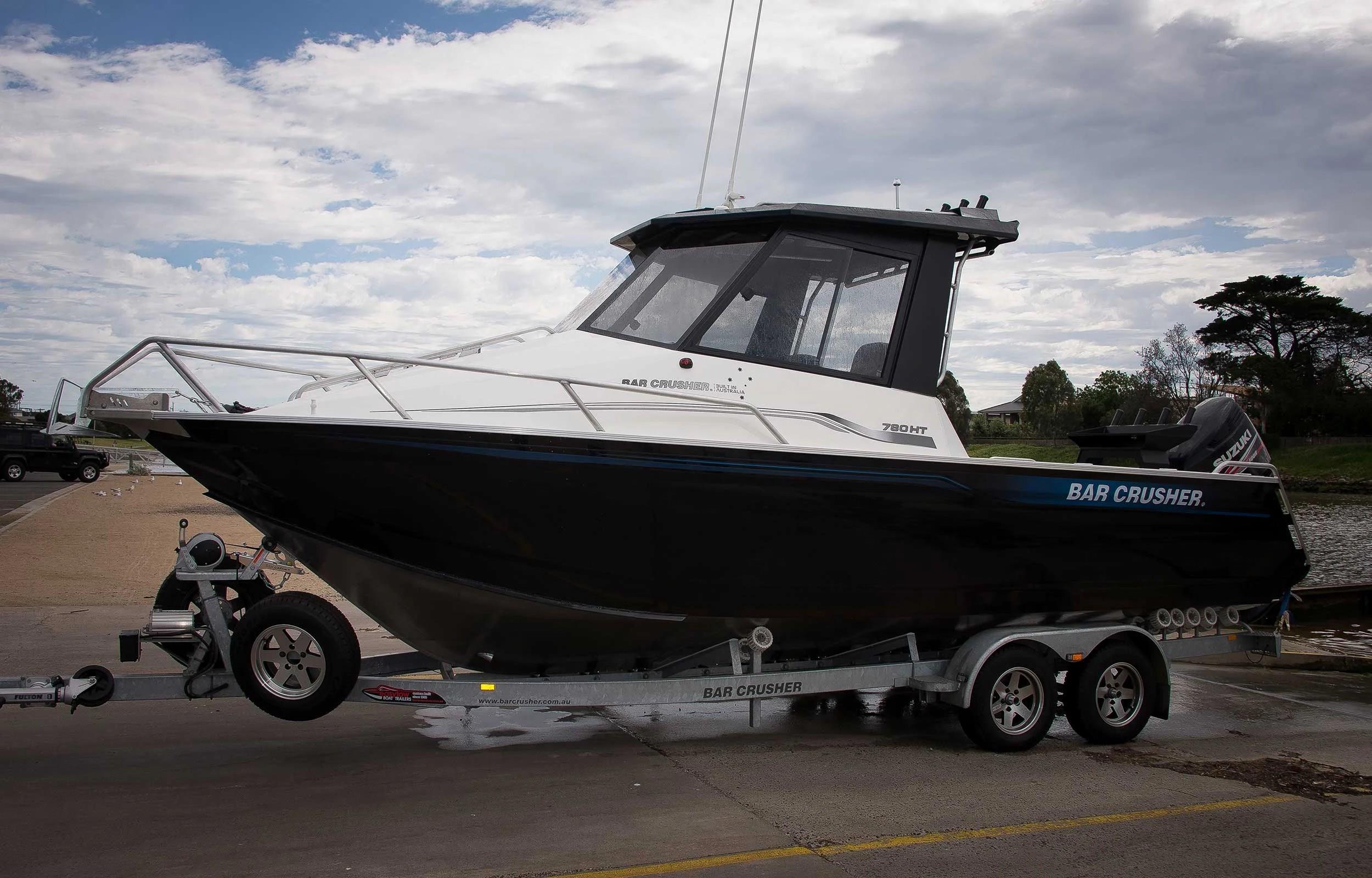

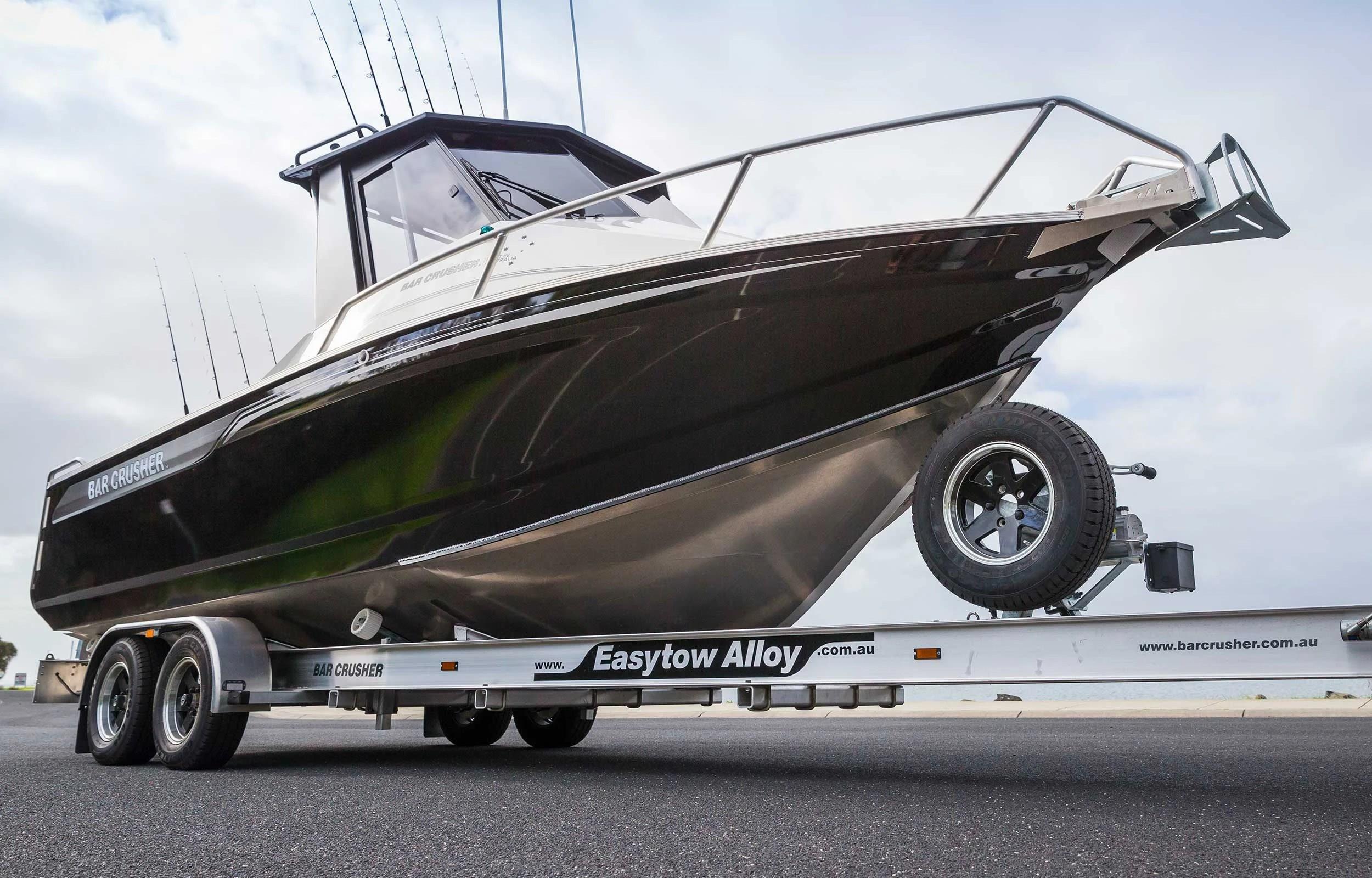

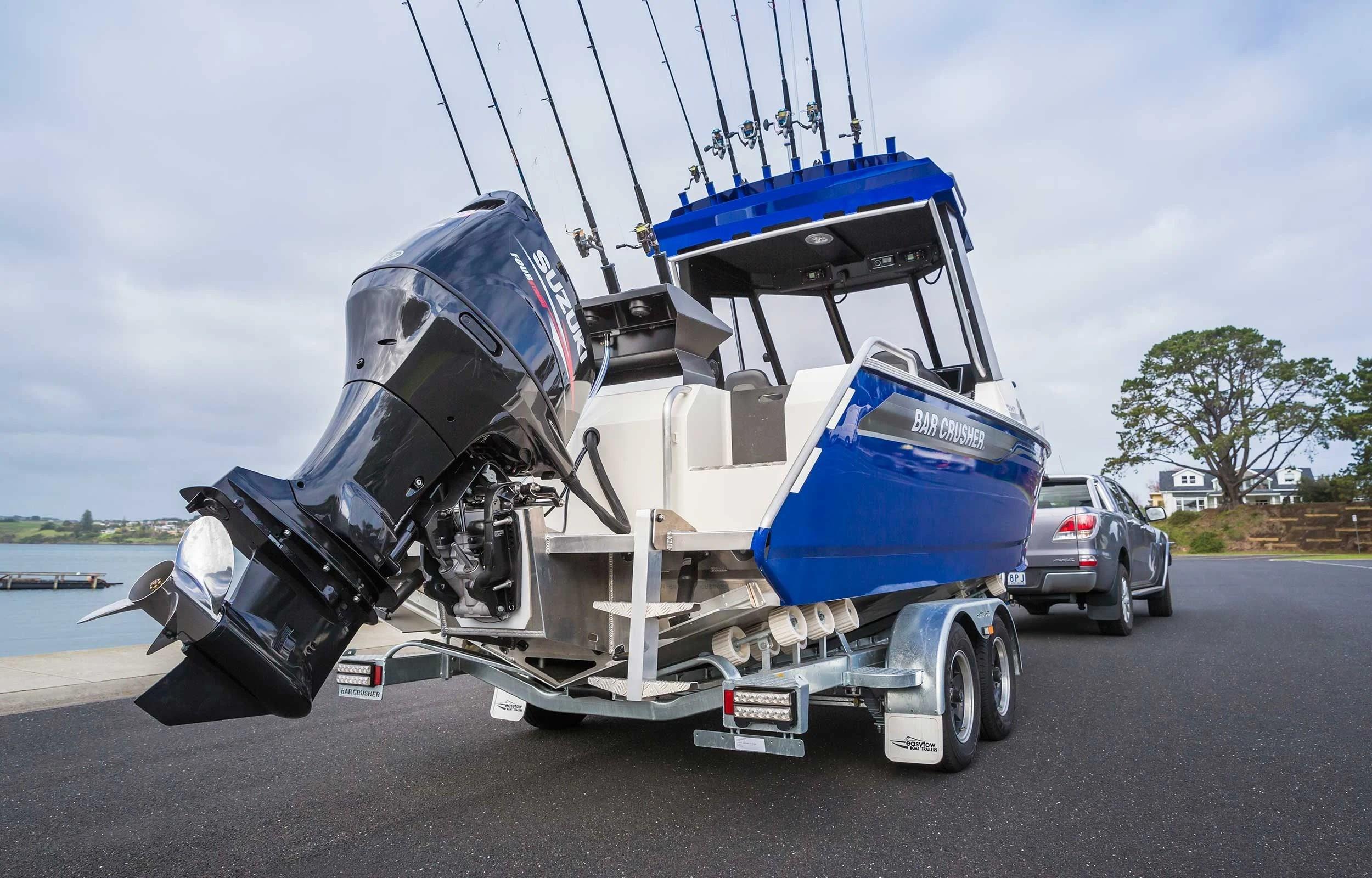

Overall length on trailer (mm) – hitch to prop 7200 7400 8000 9100 9250
Overall width on trailer (mm) 2150 2250 2350 2450 2450
Height on trailer (mm) 3050 3050 3200 3400 3330
Overall height with roof folded (mm) n/a n/a n/a n/a n/a
Maximum persons 5 6 6 6 7

Weights and measurements are approximate due to variations in packaging and fit-out. All weights and measurements must be confirmed with your dealer prior to ordering.
